Gold Plated Pass Through RJ45 Cat6 Cat5 Connector Ends.
Designed for Category 6,Category 5 24AWG to 26 AWG network cables.
DIY a custom-length Ethernet cable simpler
When pre-made lengths are not always the length you need, the Ethernet connector can let you to create your own Ethernet cables in custom length simpler while home decoration wiring or add new network devices.
Reliable, high performance

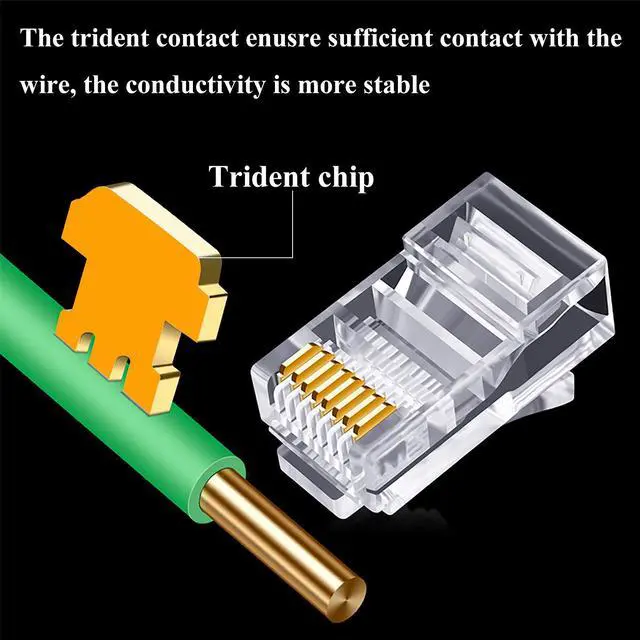

Enhance signal integrity and clarity by reducing the distance between wire twists and contacts. The metal connector pins work by piercing the cable jacket and contact the copper wire, making a good contact with the metal contacts in the RJ45 plug, making the contact attach to the core closer.

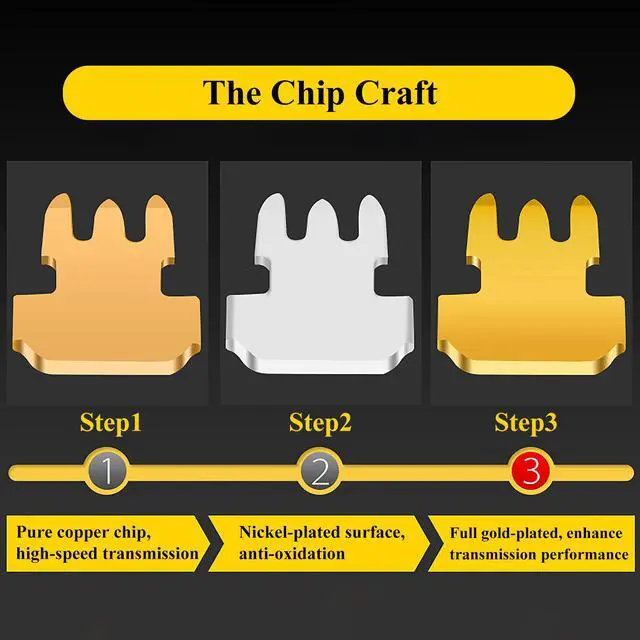

Gold Plated 3 Prong Pins make the contact closely attached to core, enhancing the connection of cables and connectors and providing stable performance.

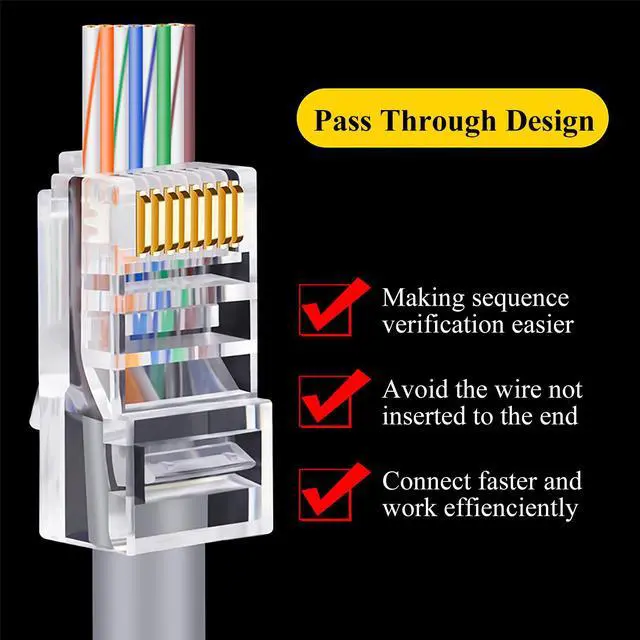

The RJ45 connector allows twisted pairs to to pass all the way through the front of the rj45 plug. So the twists in each pair can be pulled closer to the contacts than conventional plugs.
Maximum Insulated outside diameter of each twisted wire is 1.10mm.(It is the insulated conductor diameter, not the thickness of the copper.) Note: The twisted wires have to be straight to come out of the ends.
You can wire the color order according to EIA/TIA 568A & 568B Standard. The wire color order in correct is important because if the conductors do not match on each end then the cables will not function. Pass through design can simplify terminations as the wires are put in one end and fed out the other, allowing you to verify the wires are in the correct color order before crimping with your rj45 crimp tool.
The RJ45 CAT6 CAT5 connector ends can be used with most style of pass through RJ45 crimping tools, which is crimping 8P8C RJ45 Ethernet connectors and trimming the extra wires while crimping.
