Stinger SS600XS 8GA 600W Amplifier Wiring Kit compatible with Power Bass ALC-4 Line Output Converter & Stinger SSRCB17 17' RCA Cable

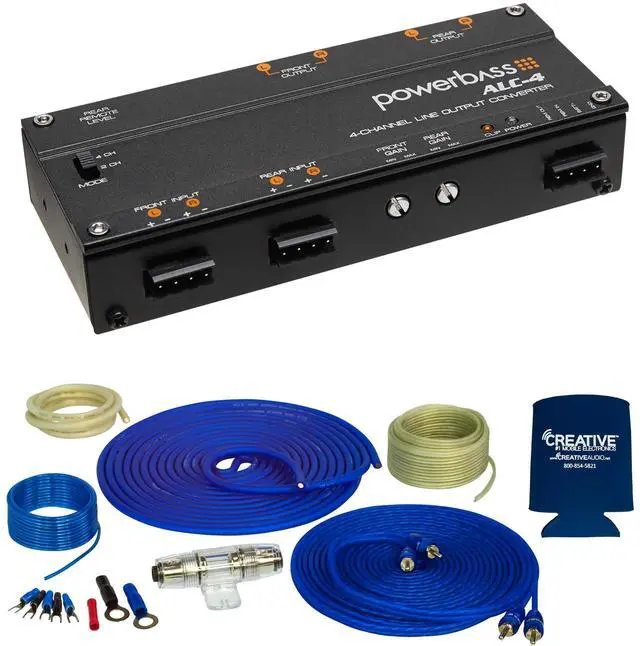

Stinger SS600XS 8GA 600W Amplifier Wiring Kit compatible with Power Bass ALC-4 Line Output Converter & Stinger SSRCB17 17' RCA Cable - This bundle includes a ALC-4 - 4 Channel High to Low Level Converter, a Stinger SS600XS 8GA Copper 600W Complete Wiring Kit, Blue, and a Creative Audio coozy.



ALC-4 - 4 Channel High to Low Level Converter

Features -

4-Channel High to Low Level Active Converter

2CH/4CH Selector Switch

Front/Rear High Level Inputs

Front/Rear Variable Gain

Front/Rear RCA Low Level Output

LED Clipping Indicator

Includes Wired Variable Remote Level Control (Rear)

Auto Turn-On Circuitry

Variable 13Vrms Output



Specifications -

Maximum Input Power (High Level): 100 watts

Rear Channel Level Boost: 18dB

Maximum Output Voltage: 13 volts

Frequency Response: 10Hz-100KHz +/-3dB

Total Harmonic Distortion: <0.4%

Signal to Noise Ratio: 81dB Front / 68dB Rear

High Level Input Impedance: >180 ohms

Output Impedance: <100 ohms

Power Supply: PWM DC/DC

Current Draw: 220mA

Recommended Fuse: 1-amp

Chassis Measurements (W x L x H): 5.8" x 2.3" x 1.1" (148mm x 58mm x 28mm)



Stinger SS600XS 8GA Copper 600W Complete Wiring Kit, Blue

Featuring full copper construction for excellent current transfer to power-hungry amplifiers. Quality twisted pair interconnects for noise-free signal transfer. Also includes ultra-flexible speaker wire, remote turn-on, water-resistant high current fuse holder and terminals for a complete installation package. All the necessary parts for installing your next 2 channel amplifier.



Includes:

17FT Translucent Blue Power Wire

3FT Translucent Silver Ground Wire

17FT Translucent Blue Twisted Pair RCA Interconnects

3FT Black flex loom tubing

16FT Blue Remote Turn-on Wire

20FT Translucent Speaker Wire

1pc AGU Fuseholder
