CARROFIX Custom Fit Vehicle Wiring Harness Kit with 4 Way Flat Trailer Connector Powered Converter for Ford Transit-150, 250, 350 Connect

Custom Fit T-Connector Vehicle Wiring Harness with 4-Pole Flat Trailer Connector for Ford Transit 150, 250, 350, 350 HD

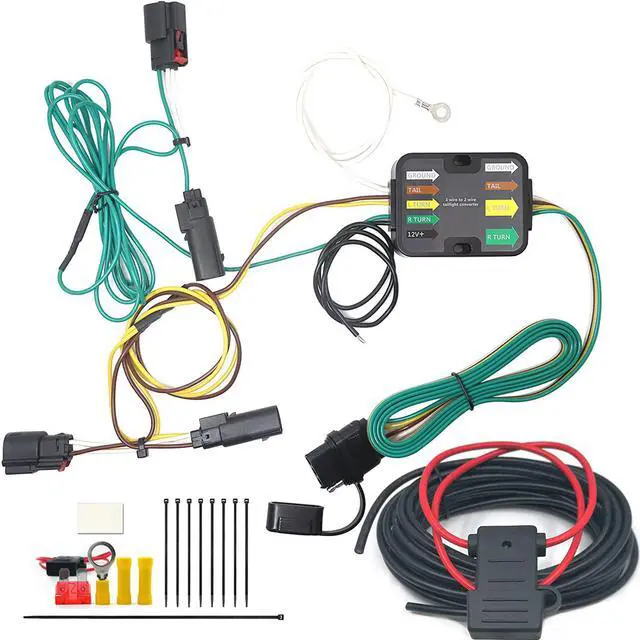

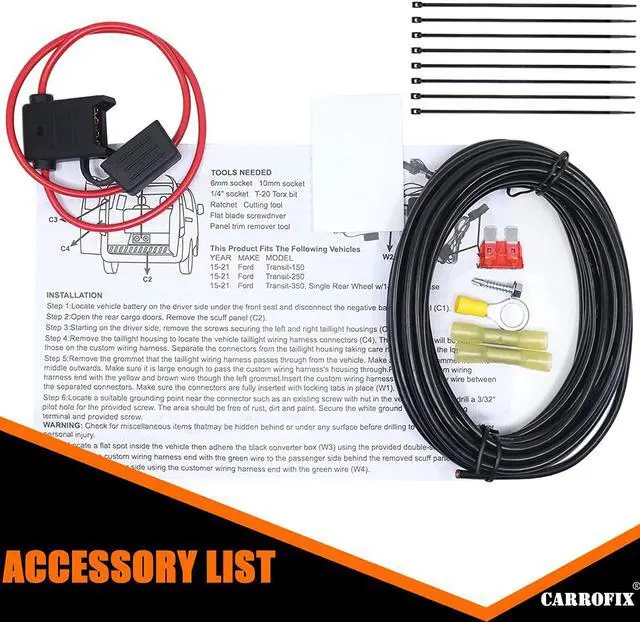

This custom wiring harness will be required if you need to add a trailer wiring harness that without the factory connector/package for your Ford Transit series. It provides a 4-way flat connector to power your trailer tail lights, brake signal lights and turn signals. It comes with all necessary wiring parts to establish a reliable trailer wiring connection, as well as a dust cover to keep the connection points clean and well protected when the connector is not in use.

Features
Model: Custom wiring plug in T-connector
Locate connection points behind vehicle's tail lights

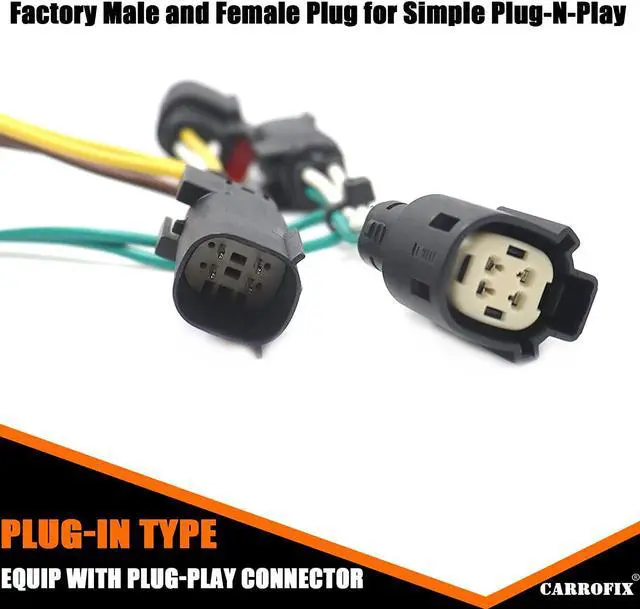

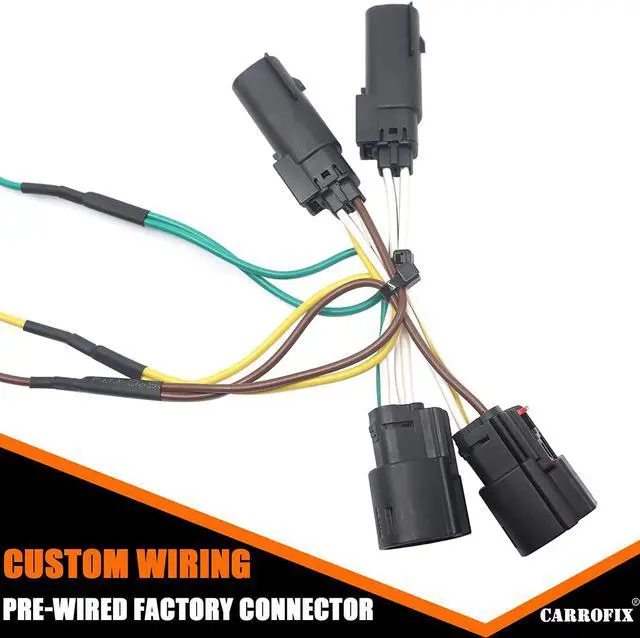

T-connector plugs directly into existing wiring

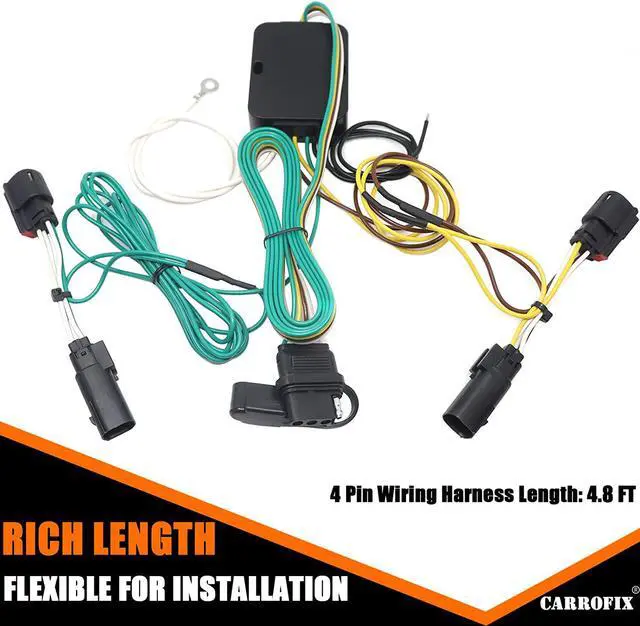

Provides a 4-way flat trailer connector at the back of your vehicle to power your trailer's signal lights
Powered module connects to battery to avoid overloading vehicle's electrical system
Comes with dust cap for 4-way flat connector

Installation

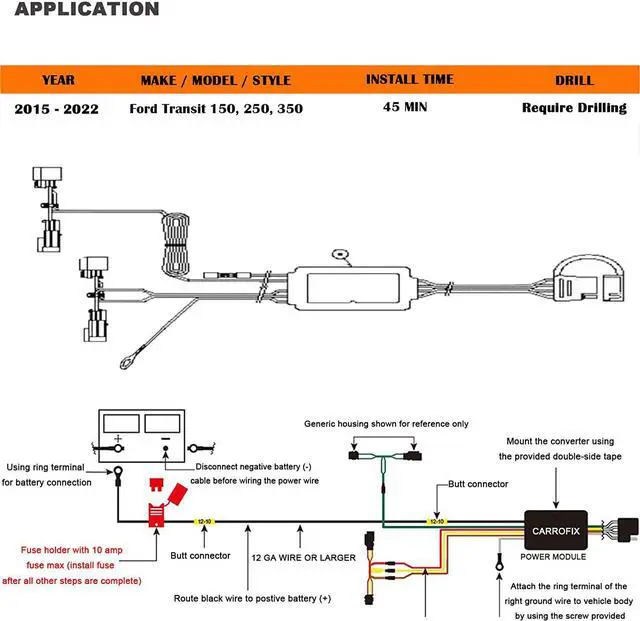

This custom-fit harness 4 flat pin connector plugs into your vehicle's wiring harness, which is located behind the driver's-side and passenger's-side tail lights. You will have to remove the access cover and the tail light assemblies to access this harness. Once you've plugged in the T-connector, run the hot lead up to your car battery. Connect the lead to the included fuse holder, and then connect the fuse holder to the positive terminal on your battery and insert the provided fuse. Once installation is complete, the 4-way flat connector will be stowed beneath your vehicle.

FAQ:

Q: Will this fit my Ford series?
This trailer wiring harness is compatible with all styles of the 2015 - 2022 Ford Transit Connect without Factory Towing Package.

Q: How Do I Know If My CAR has the Tow Package for Trailer Wiring?
The easiest way to tell if you have the tow package or not is to look for a plug on the driver's side of the rear hatch. The plug will be tucked behind the trim panel (the very back corner on the driver's side). If there is a gray connector that is open and not being used then it has the tow package. If NOT, you'll need this part for your trailer towing.

Q: Why Do I Have to Connect the Black Power Wire to Battery?
If you are towing a trailer with a bunch of lights then this may be too much for the lighting circuit on your car to handle therefore a trailer wiring harness with a powered converter is needed. Connecting the power wire to battery which won't draw any power from the vehicles lighting circuit therefore minimizing the chance of an overload.

Q: Is Splicing Required to Install Trailer Wiring Harness on My CAR?
No. Installation of this trailer wiring harness does not require any splicing into the vehicle tail light wiring. It has connectors that plug in-line with the tail light connectors on the your Ford Transit Series. A connection to the battery is required and will be what powers the trailer lights as well as part of what helps protect the Jeep's electrical system.
