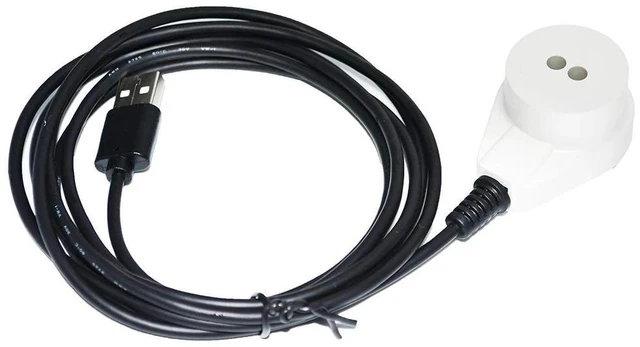

WRIARICH USB to Far Infrared Meter Reader Cable 38KHz Modulation Compliance IEC 62056 61107 DLMS Transparent Transmission Communication 1.5M Length(1.5M Length)

USB to Far Infrared IRDA Meter Reader Cable 38KHz Modulation Compliance IEC 62056/61107/DLMS Transparent Transmission Communication Kable

This far infrared cable has strong magnetic adsorption (IEC62056 regulation) can read the data of the meter with an effective distance of 30CM~500CM, which can read meter data well without opening the outer box of the meter.

Application: Data collection of electric energy meters, gas meters, water meters

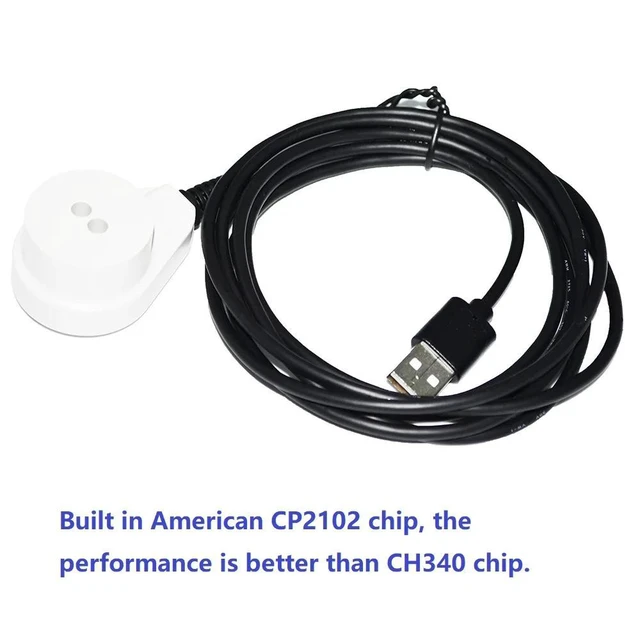

New original CP2102 imported chip, USB interface power supply, no need for external power supply.

Support multiple versions of Windows operating system, MacOS, Linux and other systems.

Industrial-grade meter reader, far infrared, wavelength 940nm.

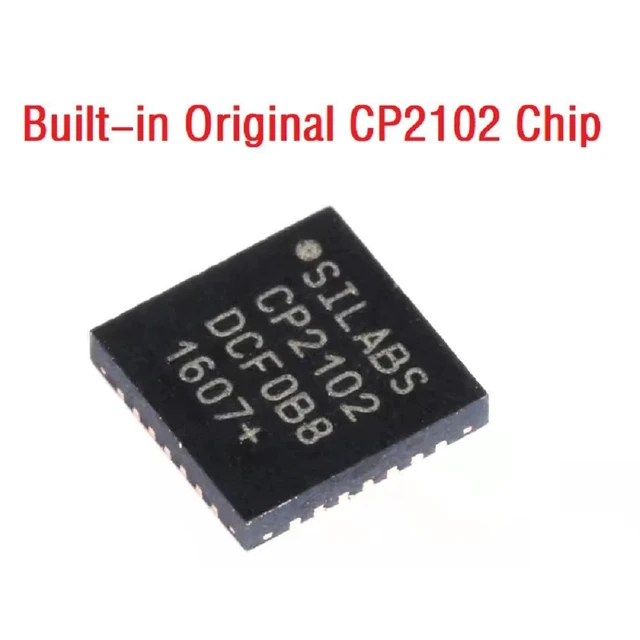

IEC standard industrial grade, the converter adopts CP2102 chip, 15KV ESD protected transceiver circuit, Taiwan Everlight industrial-grade optical receiver/transmitter.

Modulation and demodulation signal frequency: 38KHz

The transmission rate is: 300/600/1200/2400bps.

Communication distance and angle: 5M, 15.

Transparent transmission, supported full protocol signal conversion, such as IEC62056 (IEC62056-21, IEC62056-46, IEC62056-47), IEC61107, DLT 645, DLMS, MDBUS, Self-defining Communication Protocol, etc.

The transmission rate is: 300/600/1200/2400/4800/9600/19200bps.

Infrared head size: diameter 32mm, transmitting

and receiving distance: 6.5 mm (size is for reference only, tolerance 2mm)

Installation: 25mm * 15mm * 5mm galvanized magnet, strong magnetic adsorption (IEC62056 regulation), it is easy to fix on the optical interface device.

Environment: specified working range -25-70

Package Contents:

1 X CP2102 USB to Far Infrared Cable

Length: 1.5M /5FT, 2.0M / 6.6FT (Approx. )

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.

FAQ

Q1: How to use the product?

A1: Insert the USB port into the USB of the computer and wait for the computer to install the driver.

Q2: Do I need to install the driver?

A2: If the computer automatically detects and installs unsuccessfully, you can use the driver wizard to automatically detect and install or contact customer service to ask for the driver to be installed, or download from the official website:

HTTPS: //WWW. SILABS. COM/DEVELOPERS/USB-TO-UART-BRIDGE-VCP-DRIVERS

Q3: Can the serial port be modified?

A3: You can modify the port number, and modify it in "Device Manager-COM Port-Properties-COM Port Number".

Q4: Is there any free software supported?

A4: Yes, the meter company will have the software, please find it in the manual or ask for it. We have no software supported, because the different meter company has its particular software.
