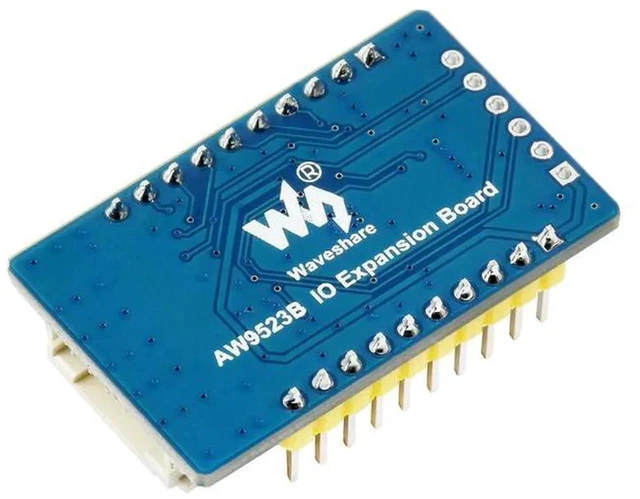

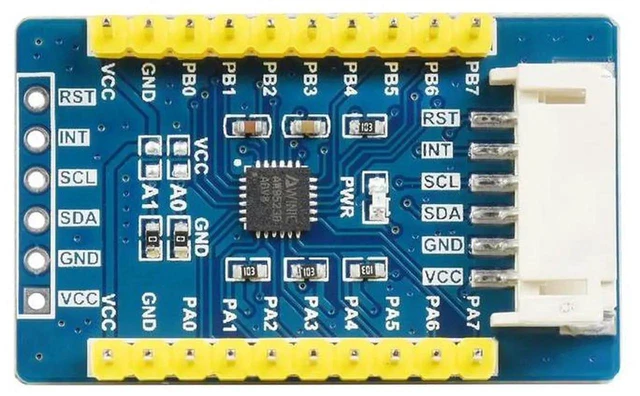

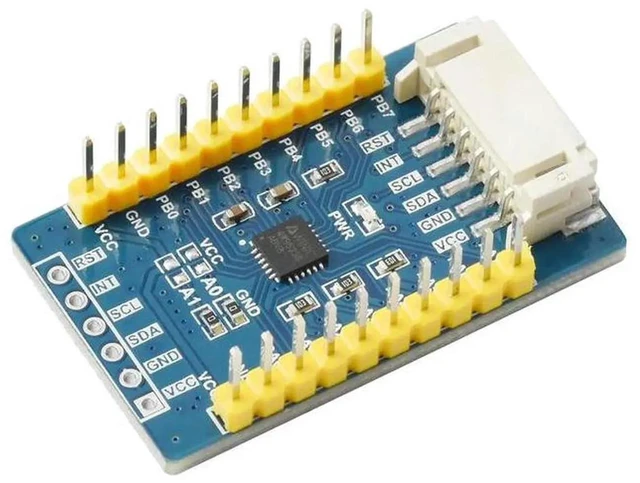

AJMRTC AW9523B IO Expansion Board, I2C Interface Expands 16Channel I/O Pins, GPIO Expander Module for Arduino ESP32 Raspberry Pi Embedded Maker DIY Electronic Projects
- - AW9523Bbased IO expansion board communicates via I2C bus, expands up to 16 independent configurable I/O pins for host controllers
- - Supports input and output mode configuration for each channel, great for adding extra GPIO resources to main control boards
- - Standard I2C interface saves limited native controller pins, easy daisychain setup for multimodule expansion
- - Stable chipdriven performance, supports 3.3V operating voltage for common embedded development hardware
- - Compact module layout, ideal for sensor array control, LED driving and makerstyle embedded prototype development
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AJMRTC AW9523B IO Expansion Board is a practical GPIO expander module built around the AW9523B chip. Using the I2C communication interface, this board expands 16 usable I/O channels, solving the problem of insufficient native GPIO pins on mainstream microcontrollers. Each IO channel can be independently set to input or output state to drive LEDs, read switch signals and connect external sensors. Thanks to I2C bus design, multiple expansion modules can be connected in daisychain way without consuming plenty of host controller ports. Working under 3.3V voltage, it matches the logic level of Arduino, ESP32, Raspberry Pi and other common development boards. Perfect for embedded prototyping, multiLED control, multiswitch signal acquisition and various electronic DIY projects. Main controller board and external peripherals are sold separately.
- Brand: AJMRTC
- Product Type: IO Expansion Board
- Main Chip: AW9523B
- Communication Interface: I2C
- Expanded I/O Quantity: 16 Channels
- Operating Voltage: 3.3V
- I/O Mode: Configurable Input / Output
- Compatible Host: Arduino, ESP32, Raspberry Pi and other MCUs
- Application: Embedded Prototyping, LED Driving, Signal Acquisition, Maker DIY
- Package Content: 1 × AW9523B IO Expansion Board
- Note: Main control board and external devices not included
