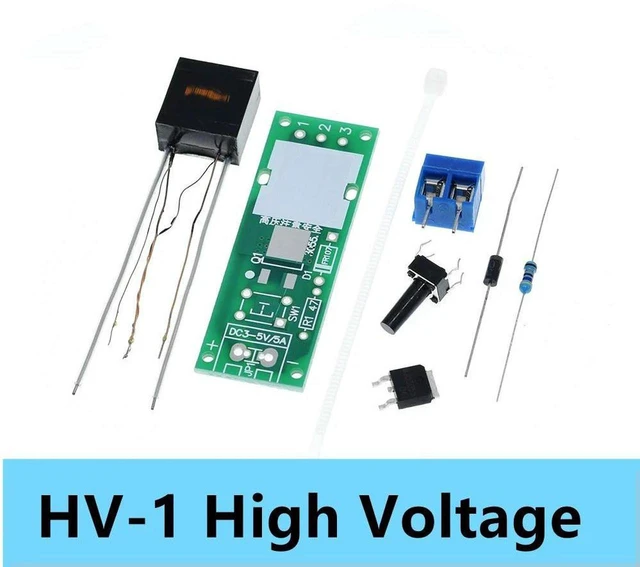

AJMRTC HV-1 High Voltage Generator Module, DC 3-5V DIY Arc Ignition Lighter Kit, Arc Cigarette Igniter Arc Generator Board for Electronic Soldering Practice, STEM Education & Electronic DIY Projects
- - HV-1 high voltage boost module, powered by DC 3-5V input, supports 3.7V lithium battery power supply
- - Self-excited oscillation boost circuit, produces stable arc spark for ignition experiments
- - Compact PCB board design, comes with full electronic components as unsoldered DIY assembly kit
- - Great for soldering training, physics experiment, arc lighter making and electronic learning
- - Simple assembly, ideal for STEM teaching, electronic hobbyists and DIY circuit enthusiasts
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AJMRTC HV-1 High Voltage Generator Module is a DIY unsoldered arc ignition kit that converts low DC 3-5V input into high-voltage pulse to generate visible arc spark. It adopts self-excited oscillating boost circuit design with flyback transformer as core component. Powered by 3V to 5V DC power source, it can work with 18650 3.7V lithium battery easily. This is a soldering practice kit, users need to solder all electronic components onto PCB by themselves. It is perfect for electronic soldering skill training, high voltage physics experiments, homemade arc igniter projects and STEM education. Suitable for electronic hobbyists, students and makers to learn boost circuit principles. Please note that continuous working time should be limited to avoid overheating.
- Brand: AJMRTC
- Model: HV-1 High Voltage Generator Module
- Input Voltage: DC 3V ~ 5V
- Recommended Input Current: 3A
- Working Frequency: 20kHz
- Max Continuous Working Time: 10s
- Arc Length: Approx 5mm
- PCB Size: 71 × 18mm
- Type: Unsoldered DIY Assembly Kit
- Application: Soldering Practice, STEM Experiment, Arc Ignition DIY
