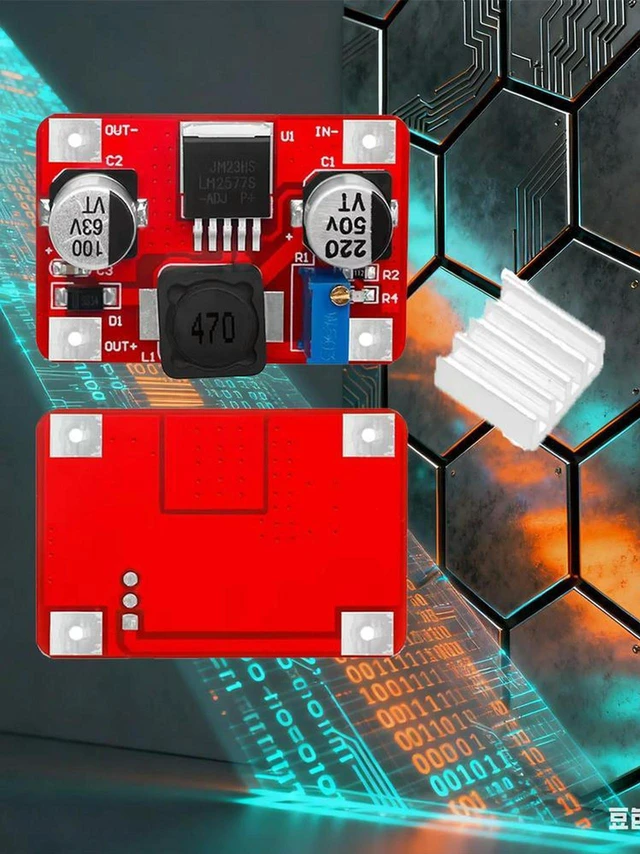

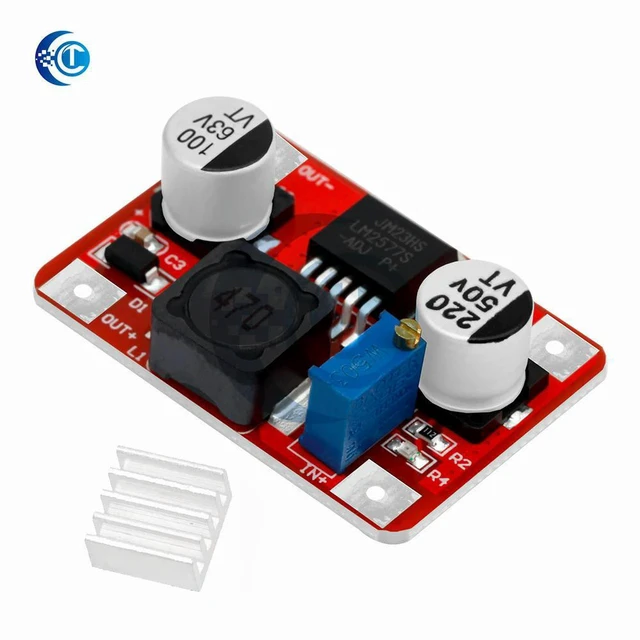

AJMRTC LM2577 DC-DC Boost Converter Module, 3A Step Up Voltage Regulator Board, DC 3.5V-35V Input to 5V-56V Adjustable High Output, Power Supply Module with LED Status Indicator for DIY Electronic
- - LM2577 based DC-DC step up converter, max 3A output current for stable voltage boosting
- - Wide input range DC 3.5V-35V, adjustable output 5V to 56V to meet various power needs
- - Built-in LED status indicator, clearly shows working state for convenient circuit debugging
- - Compact boost power module with high conversion efficiency, low heat generation during operation
- - Easy to install and wire, ideal for battery power upgrade, electronic experiment and DIY power supply build
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AJMRTC LM2577 DC-DC boost converter is a high-performance step-up voltage regulator module designed for electronic makers. It adopts LM2577 switching power chip to realize wide-range voltage boost conversion, supporting DC 3.5V~35V input and adjustable DC 5V~56V output, maximum output current reaches 3A.
This module comes with an LED working indicator light to help you quickly check whether the circuit is powered on normally. The switching power design brings high power conversion efficiency and reduces heat accumulation. You can turn the potentiometer to adjust the output voltage precisely according to your project requirements.
Suitable for battery power lifting, electronic experiment, DIY power supply, car power transformation and other scenarios. It is widely used in single/multi-cell battery power supply systems and embedded equipment power modification. Simple wiring, stable performance, perfect for your electronic prototyping work.
- Brand: AJMRTC
- Model: LM2577 Boost Converter
- Chip: LM2577
- Type: DC-DC Step Up (Boost)
- Input Voltage: DC 3.5V ~ 35V
- Output Voltage: DC 5V ~ 56V (adjustable)
- Max Output Current: 3A
- Indicator: LED Power Status Light
- Potentiometer: For output voltage tuning
- Conversion Efficiency: Up to 92%
- Dimension: 52 × 38 × 16mm
