AJMRTC XL4015 5A DC-DC CC CV Lithium Battery Step-Down Charging Module, 3 Pack, Constant Current Constant Voltage LED Power Charger Board for Lithium Battery Charging, DIY Power Supply, Lab Power
- - Based on XL4015 chip, supports max 5A high current output with CC / CV charging mode
- - Wide DC input voltage range, adjustable output voltage and current via potentiometers
- - Built-in LED indicator to show charging status, full charge and standby state
- - Multi-layer protection circuit against overcurrent, overheating and reverse connection
- - Compact size, easy to integrate for battery packs, DIY power and small charging projects
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

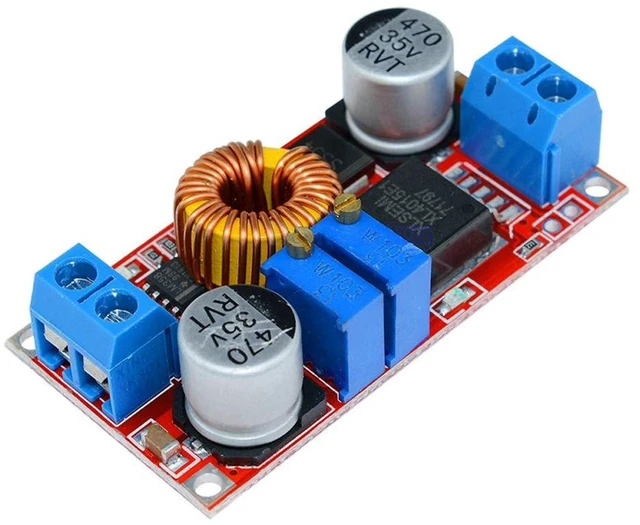

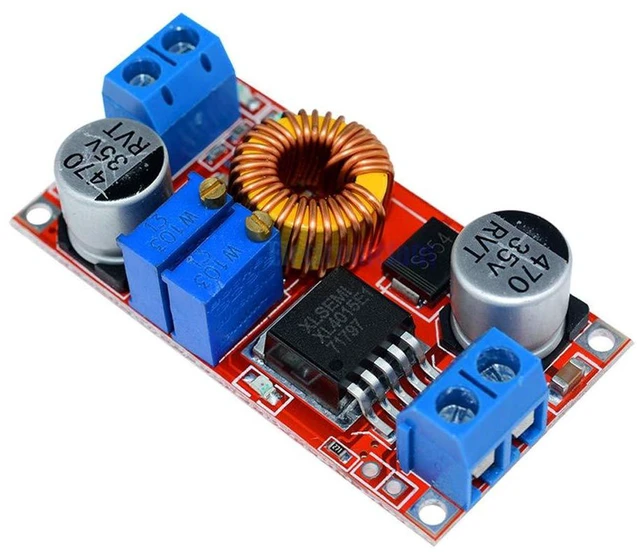

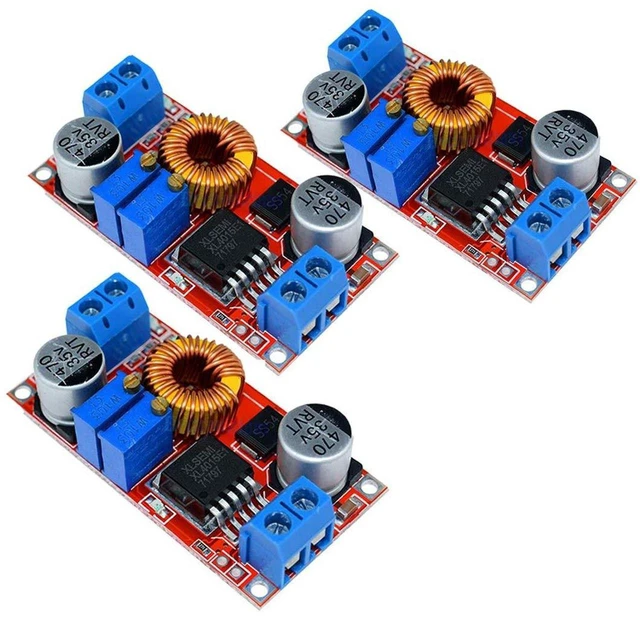

AJMRTC XL4015 DC-DC step-down charging board comes in a set of 3 pieces. It adopts CC / CV constant current and constant voltage control mode specially designed for lithium battery charging. Powered by the XL4015 buck converter chip, this module can deliver stable up to 5A output current. You can adjust the charging voltage and charging current precisely through the onboard potentiometers to match different lithium battery packs such as 1S, 2S, 3S lithium-ion and LiFePO4 batteries.
The module has an integrated temperature protection system. When the internal temperature rises too high under heavy load, it will automatically reduce power or shut down to avoid burnout. It also features reverse polarity protection; if the battery is connected backward by mistake, the circuit will be protected effectively. The LED lights on the board give clear visual feedback: different light states tell you whether charging is ongoing, completed or idle.
With high conversion efficiency and low heat generation compared with linear regulators, this board is great for electronics hobbyists, lab testing and small custom charging equipment. It can also be used as an adjustable bench buck power supply for powering LED lights, small motors and other low-voltage DC devices. Note: Please set the voltage and current parameters before connecting the battery. Incorrect settings may damage the battery or the module.
Specifications
- Brand: AJMRTC
- Chipset: XL4015
- Quantity: 3 pcs
- Working Mode: CC (Constant Current) / CV (Constant Voltage)
- Max Output Current: 5A
- Input: DC wide voltage input
- Output: Adjustable DC voltage and current
- Indicator: LED charging status light
- Protection: Overheat, overcurrent, reverse connection protection
- Application: Lithium battery charging, adjustable DIY power supply, LED driver, electronic experiment
