Positive Negative Dual Output Module 12V 15V Voltage Converter with Reverse Polarity Protection for Industrial Automation, LED Lighting

Positive Negative Dual Output Module

This dual output voltage converter module provides stable positive and negative power supply for your electronic projects. It efficiently solves the need for a reliable split-rail power source in compact designs, featuring reverse connection protection and low noise operates for sensitive circuits.

How to Use It

Step 1: Connect your input DC power source (5V-40V) to the module's input terminals, ensuring correct polarity to utilize the reverse protection feature.

Step 2: Adjust the output voltage potentiometers to your desired levels within the ±5V to ±15V range for each rail.

Step 3: Connect your load to the positive, negative, and ground output terminals. The integrated power indicators will confirm operates

This step-by-step process ensures safe setup, avoiding damage from incorrect wiring and delivering clean power to your industrial control or communication devices.

Specification:

Item Type: Positive Negative Dual Output Module

Material: PCB

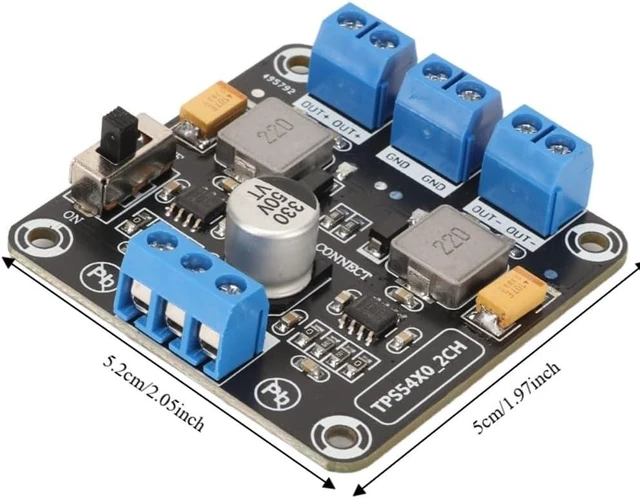

Size:5.2*5cm(2.05*1.97in)

Color: Black

Module Model: Multi Circuit Power Supply

Module Type: Switching Power Supply

Input Voltage: 5V to 40V

Output Voltage: Multiple 3.3V, 5V, 12V, ADJ

Output Current: 3A (maximum) Module Single Circuit Current Up to 3A, The Total Current Does Not Exceed 5A

Conversion Efficiency: 85%

Output Power: 9.9W 3.3V,15W 5V,36W 12V,36W ADJ

Static Power Consumption: 26mA

Switching Frequency: 150KHz

Module Enable: None

Module Protection: Reverse Connection Protection

Module Features: Low Noise, with Input and Output Power; Indicator; with Positioning Holes

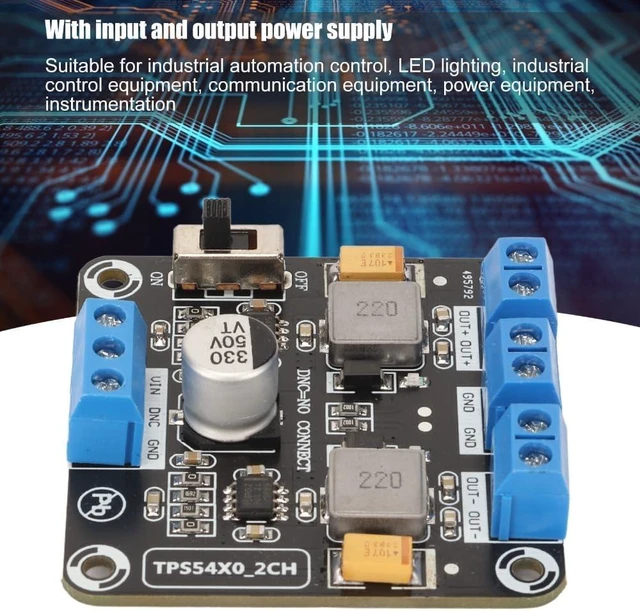

Module Application: Industrial Automation Control, LED Lighting, Industrial Control Equipment, Communication Equipment, Power Equipment, Instrumentation

Package List:

1 x Positive Negative Dual Output Module
