Palm-Sized 10-Channel IP Video Stream Gateway, Ultra-Compact H.265/H.264 Protocol Bridge, RTSP RTMP ONVIF GB28181 Ingest & Distribution, SD Card Recording, DC 12V

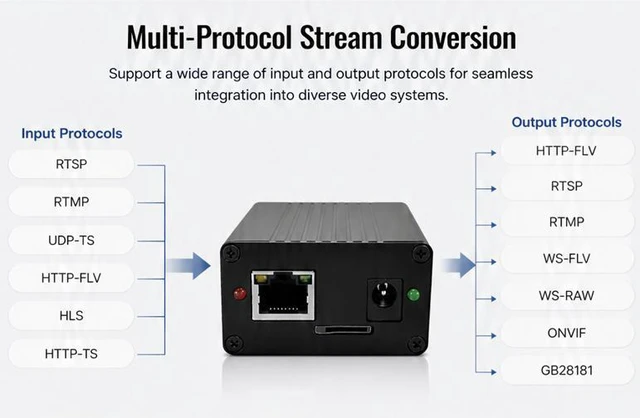

- -Multi-Protocol Stream Conversion
- Supports network video stream input via RTSP, RTMP, UDP-TS, HTTP-FLV, HLS, and HTTP-TS.
- Converts and streams video output through HTTP-FLV, RTSP, RTMP, WS-FLV, WS-RAW, ONVIF, and GB28181.
- -Multi-Channel Stream Processing
- Capable of processing up to 10 network video input channels simultaneously, enabling streamlined surveillance and broadcast operations for complex network environments.
- -Supports a total aggregate network bitrate of up to 10 Mbps (actual throughput varies based on selected protocols and encoding settings).
- -Supports a wide range of video protocols, ensuring seamless integration with diverse streaming platforms and security systems.
- -Video Codec Support
- Video Encoding/Decoding: Compatible H.264 and standard video formats.
- Supports AAC, G.711, MP3, MP2 audio inputs, with standardized AAC output.
- -The integrated Micro-SD card slot supports local video recording and backup when a compatible card is installed, safeguarding critical footage during network interruptions.
- -Form Factor & Weight: Compact metal enclosure measuring 61 x 55 x 30 mm, weighing 67 g.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product Overview
The XST-10M10CH is an ultra-compact, high-density 10-channel IP video streaming gateway designed for flexible network video protocol conversion and stream distribution. Built in a mini aluminum housing, it seamlessly bridges multi-protocol IP video streamsincluding RTSP, RTMP, HTTP-FLV, HLS, ONVIF, and GB28181making it an essential bridge for video surveillance, system integration, and multi-platform live distribution.
Features
-10-Channel IP Stream Processing: Processes up to 10 simultaneous network video input channels in a single device, significantly reducing hardware footprint and system integration complexity.
-Broad Protocol Interoperability:
Input Protocols: RTSP, RTMP, UDP-TS, HTTP-FLV, HLS, HTTP-TS.
Output Protocols: HTTP-FLV, RTSP, RTMP, WS-FLV, WS-RAW, ONVIF, GB28181.
-Codec Support: Supports H.264 video encoding/decoding formats to optimize stream quality and minimize network bandwidth utilization.
-Local Micro-SD Card Backup: Equipped with an integrated Micro-SD card slot for local edge recording, ensuring data safety and continuous recording during network interruptions.
-Full Remote Management: Supports remote web parameter configuration, firmware upgrades, and remote video playback management.
-Ultra-Compact Industrial Design: Compact metal housing (61 x 55 x 30 mm, 67g) engineered for space-constrained installations, and steady operation within 0°C to 70°C environments.
| Device model | XSWTVR-10M10CH |
| Network video input protocol | RTSP/RTMP/UDP-TS |
| Network video output protocol | HTTP-FLV/RTSP/RTMP/WS-FLV/WS-RAW/ONVIF/GB28181 client |
| Input video encoding format | H.264/H.265 |
| Input audio encoding format | AAC/G.711/MP3/MP2/AC3 |
| Output video encoding format | H.264/H.265 |
| Output audio encoding format | AAC |
| Maximum number of network video channels | 10 |
| Maximum total code rate | 10Mbit(specifically, it will vary due to different protocols and encoding formats) |
| Video recording | Supports a maximum of 512 GB TF card |
| Remote upgrade | Support |
| Remote management | Support remote modification of device parameters and remote playback of device recordings |
| Dimensions | 61x55x30mm |
| Weight | 67g |
| Power supply | DC-12V |
| Working temperature | 0~70 |
