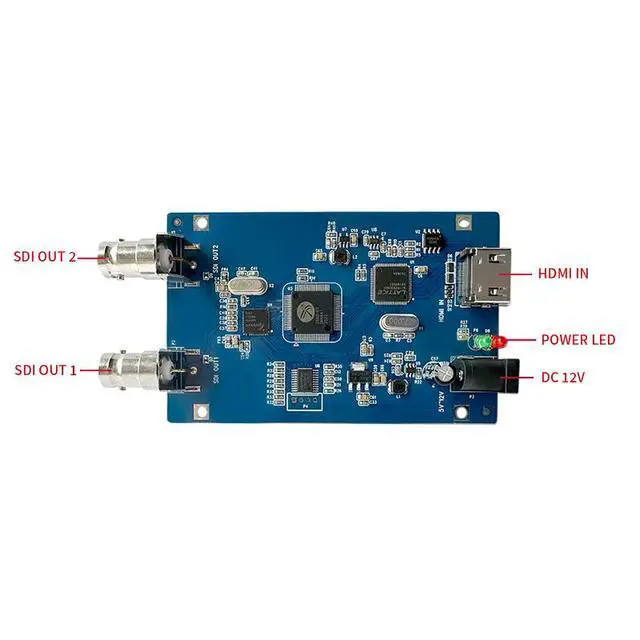

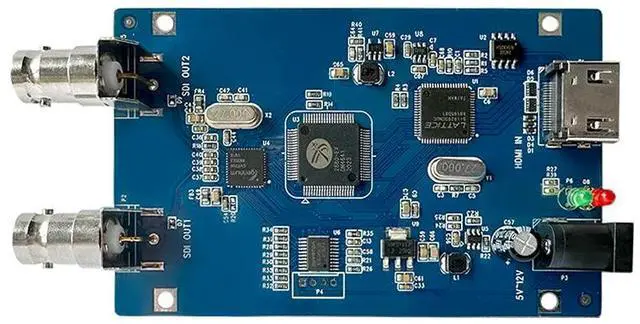

HDMI to Dual SDI Converter Board, 1080P@60Hz HDMI Input to 2-Port SDI Output Module, 1 in 2 Out Audio Video Adapter PCB
+ 10% off w/ promo code MKTCY0A3MME3,limited offer By XSTRIVE
- -HDMI to Dual SDI Conversion: Converts 1-channel HDMI video input with embedded audio into 2-channel SDI video outputs simultaneously, maintaining resolution consistency up to 1080P at 60fps.

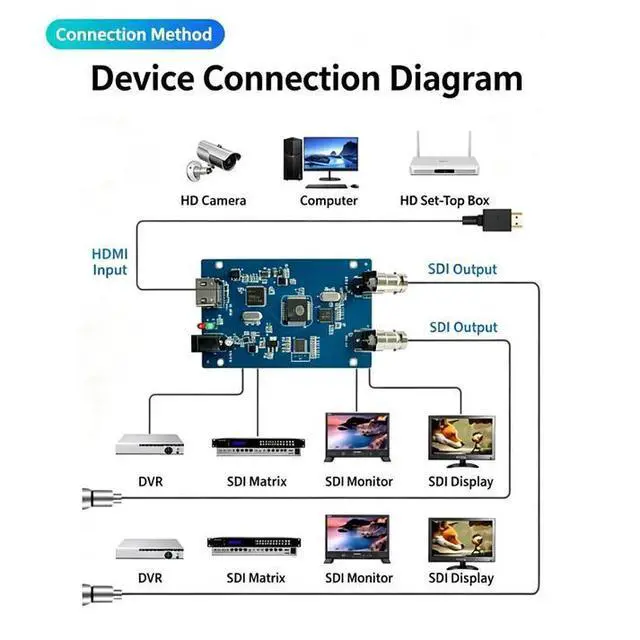

- -1 in 2 Out Signal Distribution: Equipped with dual SDI output ports (BNC connectors) to route a single HDMI source to two SDI monitors or downstream devices at the same time.
- -Resolution Passthrough: Supports video input and output resolutions including 1080P@60Hz and 720P@60Hz

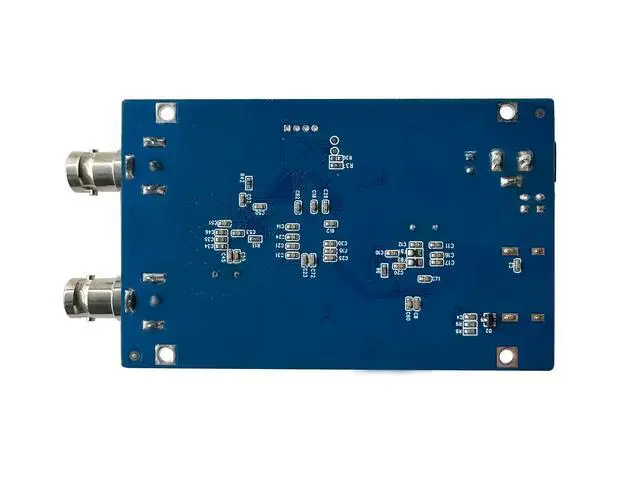

- -Compact Open-Frame PCB: Unenclosed circuit board design measuring 9.5cm x 6cm (95mm x 60mm) and weighing 41.5g, optimized for custom enclosure assembly and embedded system integration.
- -Standard Power Requirements: Powered by a DC 12V supply, suitable for standard industrial and broadcast video system power setups.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product Description
This HDMI to Dual SDI Output Converter Board is a reliable interface solution designed for automotive and hardware applications requiring high-quality video signal conversion. This compact converter board accepts HDMI input with resolutions up to 1080p at 60fps and seamlessly outputs to two SDI channels, supporting both 1080p@60 and 720p@60. The output resolution automatically matches the input, ensuring precise signal fidelity. Embedded HDMI audio is also supported, providing synchronized sound transmission. With a durable design measuring 9.5 × 6 cm and weighing only 41.5 g, it is well-suited for integration into various systems. The unit operates efficiently within a temperature range of 0°C to 70°C and is powered by a DC 12V supply, making it a versatile choice for demanding environments.
Features
- HDMI to Dual SDI output conversion
- Supports video resolutions up to 1080p@60fps
- Embedded HDMI audio support
- Automatic output resolution matching
- Compact and lightweight form factor
- Wide operating temperature range (0°C to 70°C)
Specifications
- Model: XSWEDR-HDMI2DSDI
- Input: HDMI (video & audio)
- Output: Dual SDI (1080p@60 / 720p@60)
- Power: DC 12V
- Dimensions: 9.5 × 6 cm
- Weight: 41.5 g
| Model | XSWEDR-HDMI2DSDI |
| Video Input | 1x HDMI (Up to 1080p@60Hz) |
| Audio Input | HDMI Embedded Audio |
| Video Outputs | 2x SDI Outputs (1080p@60 / 720p@60, Matches Input) |
| Transmission Distance | Up to 100 Meters (328 ft) Lossless over Coaxial Cable |
| Power Supply | DC 12V |
| Dimensions | 9.5 cm x 6.0 cm (3.74" x 2.36") |
| Net Weight | 41.5g (1.46 oz) |
| Operating Temperature | 0°C ~ 70°C |
