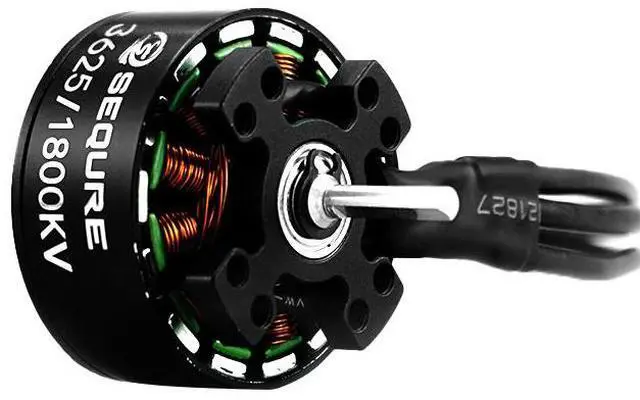

SEQURE 3625 Outer Rotor Brushless Motor 1800KV 2-4S for 1/10 RC Climbing Cars Crawlers
Limited time offer, ends 05/30 By SEQURE
- SEQURE 3625 is a high-performance brushless outer rotor motor specially designed for 1/10 remote-controlled climbing crawler cars. Features with the smallest size, highest power, and largest torque.
- The motor has a volume of 36*25mm and adopts a 12-slot stator of 30*12mm, combined with high-purity copper wire winding, which greatly improves the motor power and explosive force.
- The ultra-strong magnetic array composed of 14-pole curved high-temperature resistant magnets provides extraordinary rotor torque and powerful and fast braking response.
- The shell is made of high-hardness aluminum alloy and high-precision CNC processing, and the structure is stable and reliable.
- High-strength stainless steel motor shaft, high-precision high-quality bearings, the motor is durable.
- Eight-angle mounting holes eliminate any interference in the installation space.
- Silent and denoise design to lower the operating noise greatly. No worry about the breaking wind noise at high speed.
- Lightweight design, weight about 90g (including 16AWG 200mm motor wire), maximizes the reduction of vehicle weight and lowers the center of gravity.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

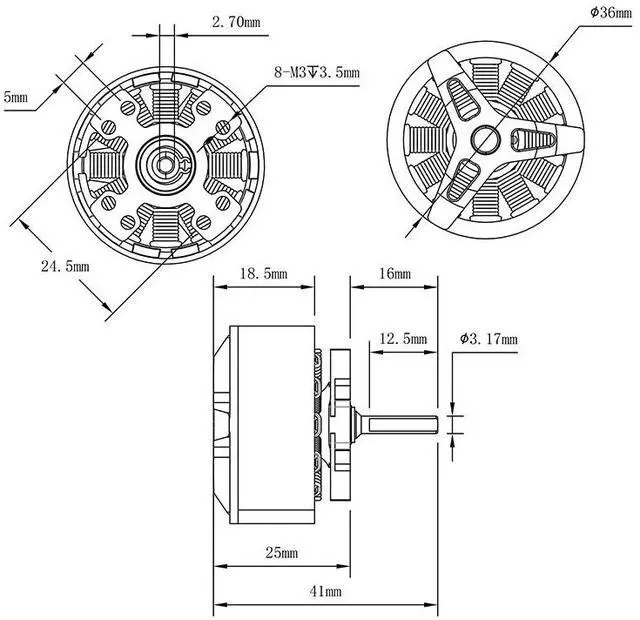

Specification:
Model: SEQURE 3625 Brushless Motor
Working Voltage: 2-4S Lipo
Slot Pole/Magnetic Pole: 12N/14P
Stator Size: 30*12mm
Output Shaft Diameter: 3.17mm
KV Value: 1800KV
Motor Wire: 16AWG 200mm
Mounting Hole Spacing: 24.5mm
Banana Plug: 3.5mm Male
Size(Without Shaft): 36*25mm
Weight(With Wire): 90g
Recommend ESC: 70A ESC (or above)
