Jansicotek 1080P HDMI to AV 3RCA CVBs Composite Video Audio Converter Adapter Supporting PAL/NTSC with USB Power Cable for PC Laptop Xbox PS4 PS3 TV STB VHS VCR Camera DVD (Whitek)

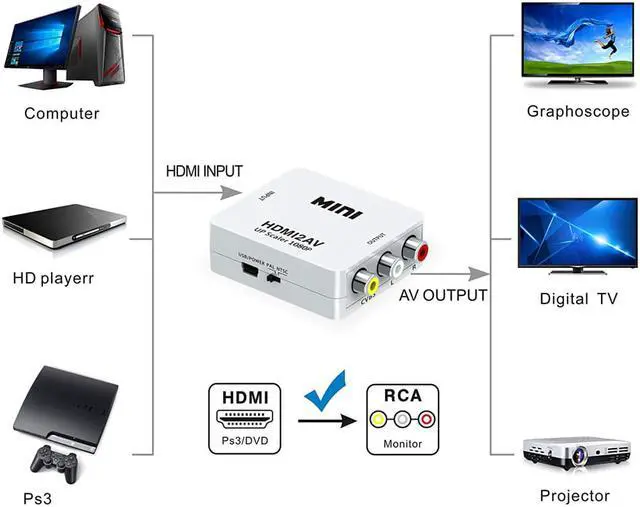

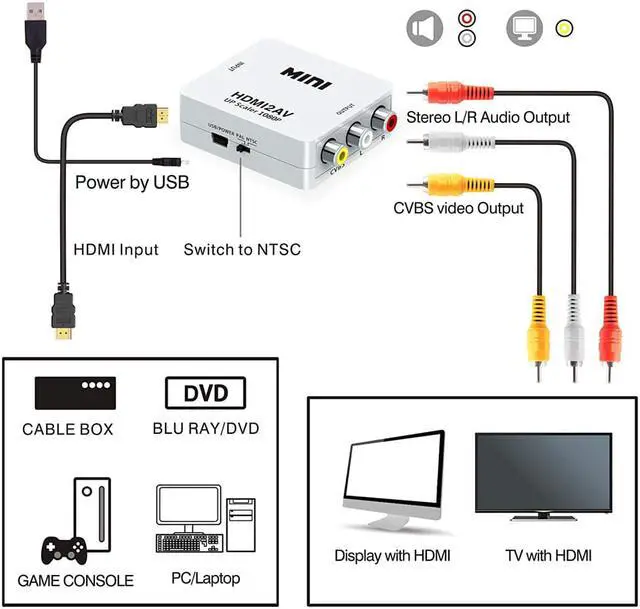

HDMI to AV Converter Your sending signal hosts device should have a HDMI output, such as Laptop / TV box (HDMI), and your receiving signal device should have a RCA input (Yellow, White, Red), such as TV / Projector / Monitor

Attention: INCOMPATIBLE with TV Sticks, (such as Fire Stick, Roku, Chromecast, mobile phones, iPad/Apple series and Super Nintendo) Please hook up the USB power cable to 5V power plug before using.

Plug & Play: No need to install drivers. Please connect your power adapter (power cable included) for item to work properly.

HD Video Converter: Box Convert high quality of HDMI video signal to normal CVBS (AV) signal (standard-definition 480i, ). Enables you to play on TV, VHS VCR, DVD recorders, etc. Support PAL and NTSC two standard TV formats output.

Latest Technology: Latest video processing and scaler video processing technologies, enhance picture's Brightness / Contrast Ratio / Color. Its Output CVBS Transparency is Ultimate Clear and high-definition of HDMI signal after scaler down into CVBS output.

Introduction:
The Mini HDMI to AV signal converter which will convert HDMI video signal or audio signal to AV (CVBS) composite video signal and the FL/FR stereo audio signals, while support DVI system sideline signals. To help users convert the high quality of the HDMI video signal into normal CVBS signal(standard-definition 480i, 576i). So that can play on TV, VHS VCR, DVD recorders, etc and support NTSC and PAL two TV format.

Features:
1. No need to install drivers, portable, flexible, plug and play.
2. Output the audio synchronization with video.
3. High bandwidth capability support 1920x1080@60Hz.
4. Support NTSC and PAL two standard TV formats output.
5.Compatible: HDMI 1.3

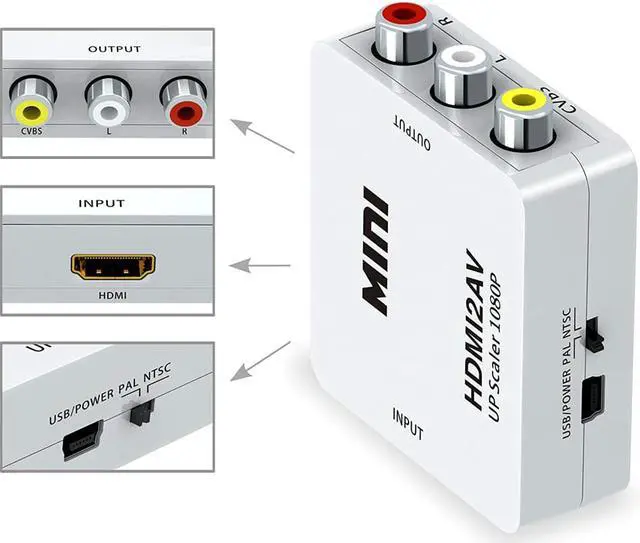

Specifications:

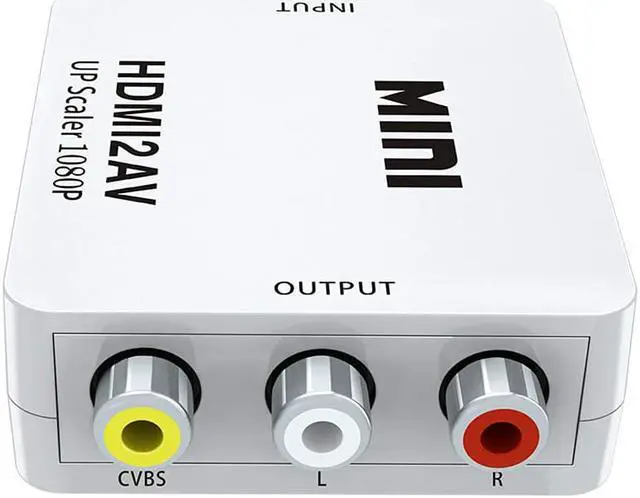

Output ports: 1x RCA (Yellow, White, Red).

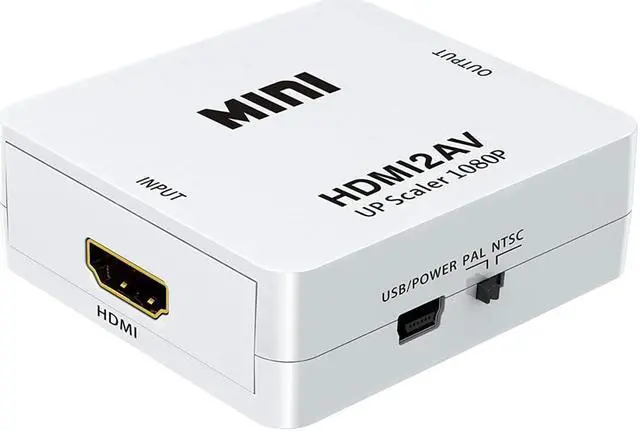

Input ports: 1x HDMI.
Product dimension: 66 (D) x55 (W) x20 (H) mm
Weight: 110 (g)
HDMI Input Resolution: 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x720@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1600x1200@60Hz, 1920x1080@60Hz. 180i/60Hz, 480p/60Hz, 576i/60Hz, 576p/60Hz, 720p50/60Hz, 1080I50/60Hz, 1080p/60Hz.
CVBS output: PAL, NTSC_M, and NTSC_J

Package content:
1 x HDMI to AV Converter (not include PS3)
1 x USB Cable
1 x User Manual

Note:
1) Video signal transfer only, can't improve the video quality, please import HD video.
2) PLEASE DO HOOP UP THE USB POWER CABLE TO 5V POWER SOURCE BEFORE USE, OTHERWISE, THE CONVERTER MAY NOT WORK PROPERLY.
3) The converter is not fit for Fire Stick, Roku, mobile phones and iPad series.
