Trench Drain System, Channel Drain with Metal Grate, 5.9x5.1-Inch HDPE Drainage Trench, Black Plastic Garage Floor Drain, 3x39 Trench Drain Grate, with 3 End Caps, for Garden, Driveway-3 Pack

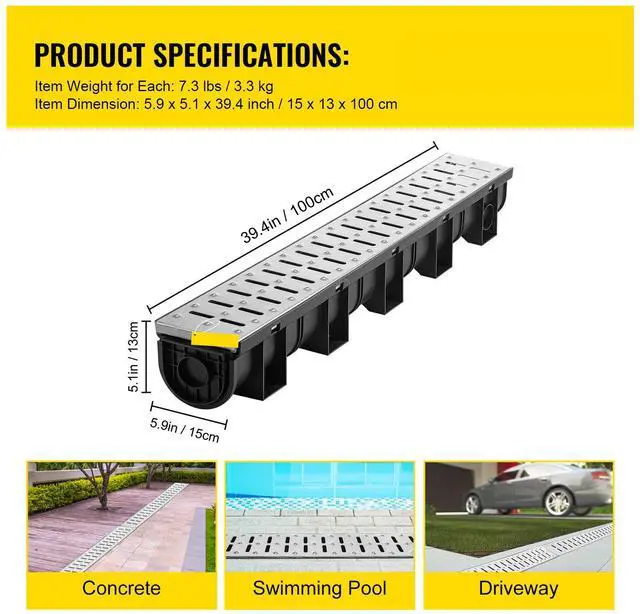

- Low-profile Drain System: Dimensions of each channel: 5.9" W x 5.1" H x 39.4" L. Commercial water drainage systems allow safe and efficient drainage for grassed areas, gardens, farms, patio areas, pool sides, office buildings, driveways, or factory interiors. The anti-flotation design prevents floating and doesnt require staking when setting in concrete.

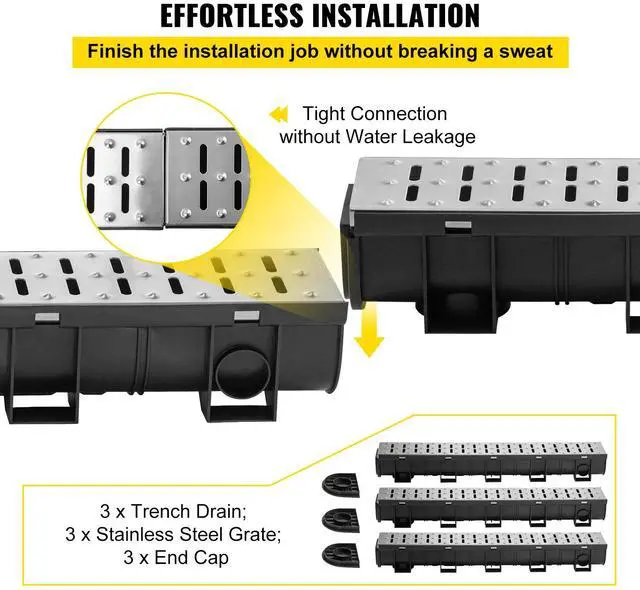

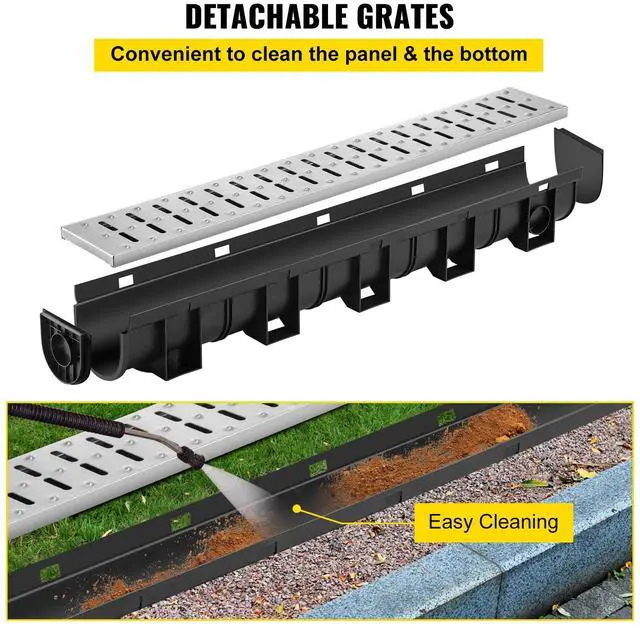

- Easy & Quick Installation: You can connect these trench drains together for extra length. The interlocking design connects the drains tightly with no potential leak of water. Detachable grate can be manually installed and detached easily, needs no screws or bolts. It also provides a convenient way to clean the drain if it is bunged up.

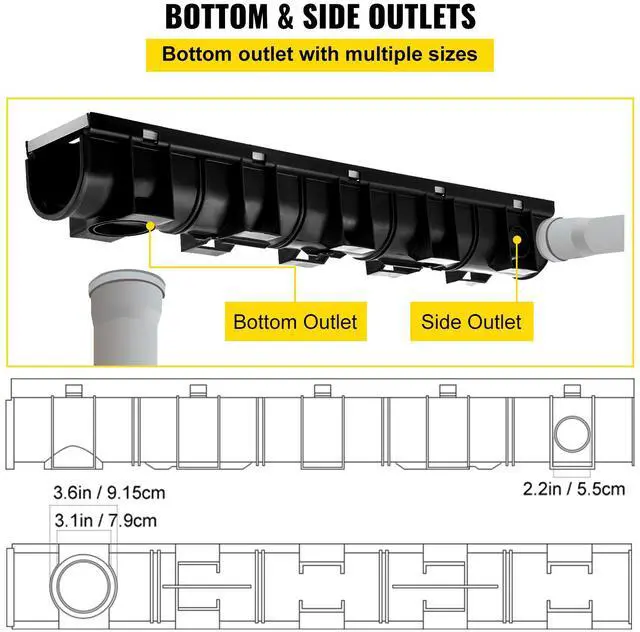

- Various Outlet Connections: Each trench drain provides a bottom outlet with multiple sizes(3.1 inch/ 2.2 inch), and a side outlet(2.2 inch/ 5.5 cm). You can choose the size you need. No outlet connector is required because it is already built-in; thus, the pipe can be connected directly
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
Model: PSG100*100*3M
Material of Trench Drain: HDPE Plastic
Material of Grate: Stainless Steel
Color: Black & Silver
Load Rate: A15
Amount: 3 Pack
External Item Dimensions: 5.9 x 5.1 x 39.4 inch/ 15 x 13 x 100 cm
Internal Item Dimensions: 3.9 x 3.9 x 39.4 inch/ 10 x 10 x 100 cm
Diameter of Bottom Drain Hole: 3.1 inch or 3.6 inch
Diameter of Side Drain Hole: 2.2 inch/ 5.5 cm
Item Weight Each: 3.3 kg / 7.3 lbs
Maximum Working Temperature: 120 / 248
Minimum Working Temperature: -40 / -40
Package Content
3 x Trench Drain
3 x Metal Grate
3 x End Cap
