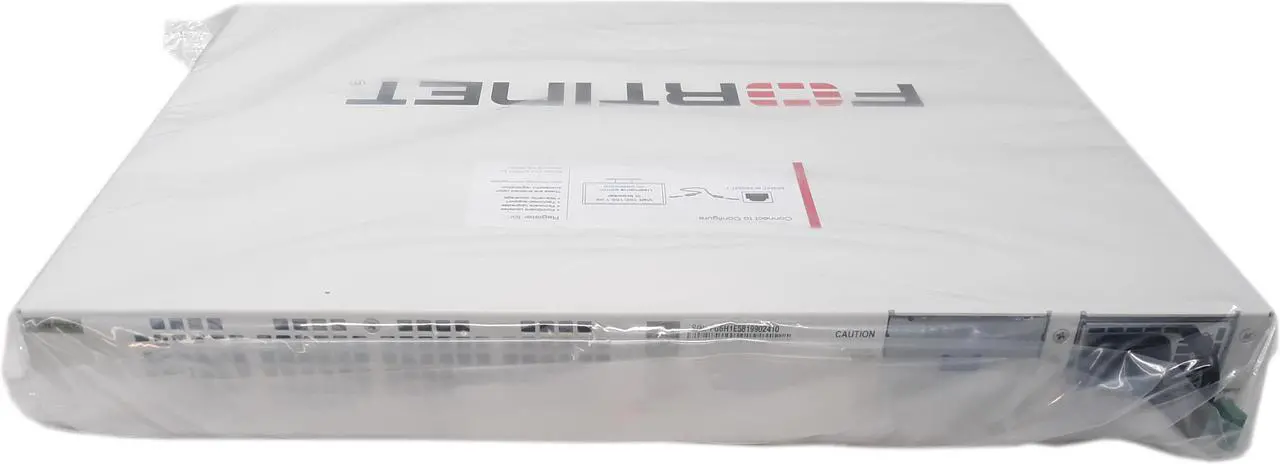

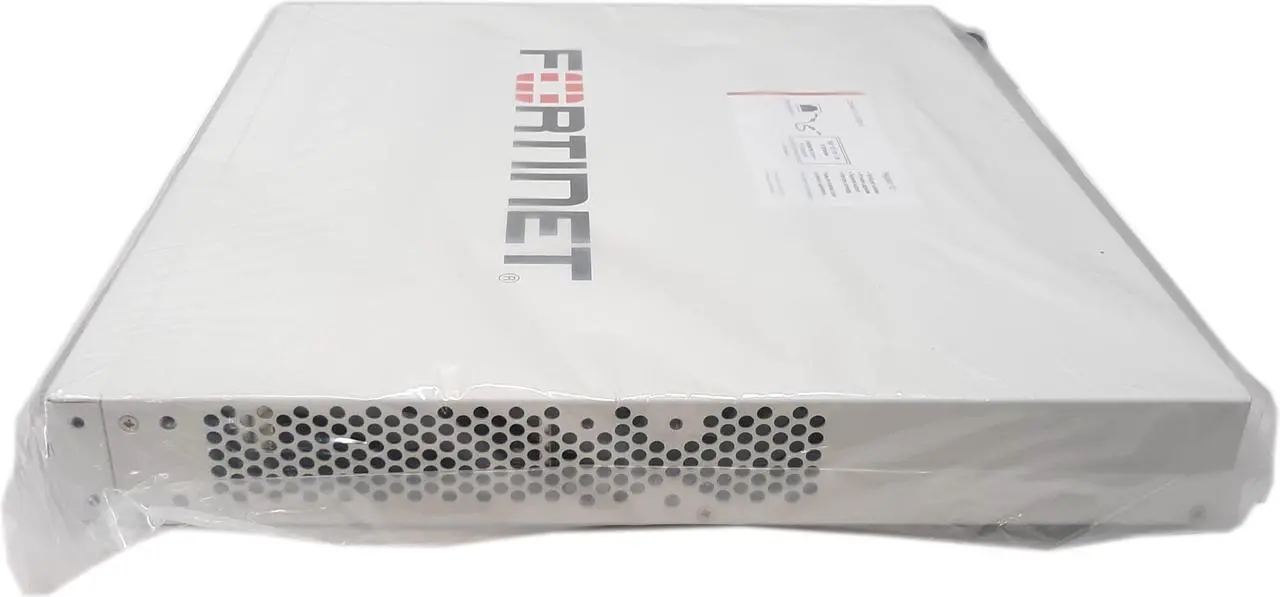

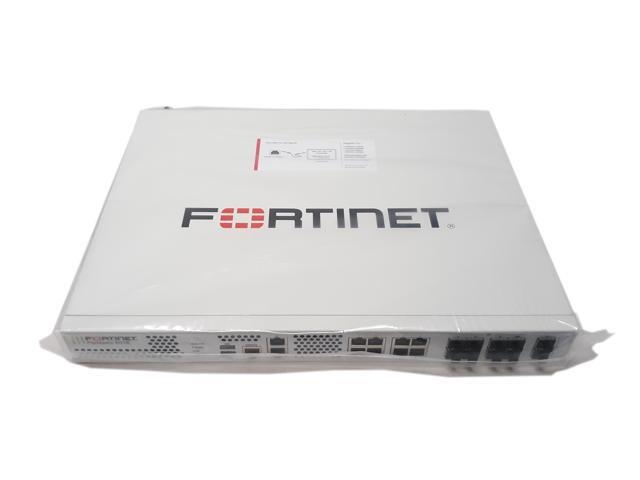

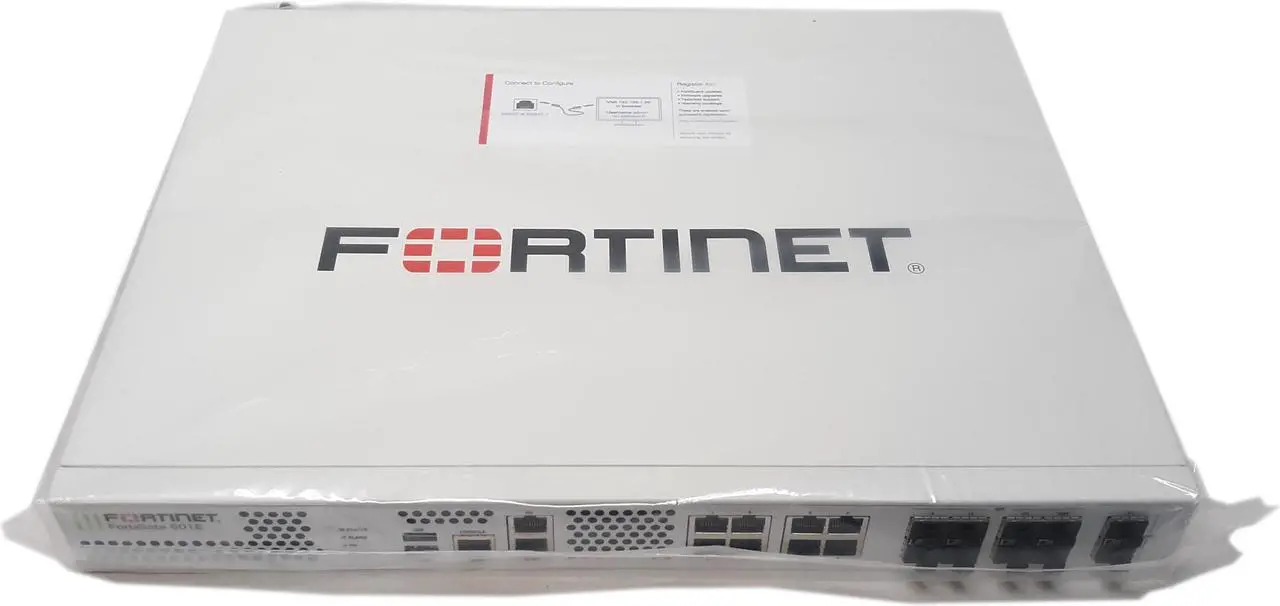

Fortinet FortiGate 601E Security Appliance Firewall Switch FG-601E-BDL-988-12

Fortinet FortiGate 601E FG-601E Security Appliance Firewall Switch P23872-03-09 FG-601E-BDL-988-12
Condition: New
(Not used, Not registered. Listing is for hardware Unit & accessories.)
LICENSE SOLD SEPARATELY
SKU: 415800100101

Specification:

Interfaces and Modules
Hardware Accelerated 10 GE SFP+ Slots 2
Hardware Accelerated GE RJ45
Interfaces 8
Hardware Accelerated GE SFP Slots 8
GE RJ45 Management Ports 2
USB Ports 2
RJ45 Console Port 1
Onboard Storage 2x 240 GB SSD
Included Transceivers 2x SFP (SX 1 GE)

System Performance - Enterprise Traffic Mix
IPS Throughput 10 Gbps
NGFW Throughput 9.5 Gbps
Threat Protection Throughput 7 Gbps

System Performance and Capacity
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) 36 / 36 / 27 Gbps
IPv6 Firewall Throughput (1518 / 512 / 64 byte, UDP) 36 / 36 / 27 Gbps
Firewall Latency (64 byte, UDP) 1.54 µs
Firewall Throughput (Packet per Second) 40.5 Mpps
Concurrent Sessions (TCP) 8 Million
New Sessions/Second (TCP) 450,000
Firewall Policies 10,000
IPsec VPN Throughput (512 byte) 20 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 2,000
Client-to-Gateway IPsec VPN Tunnels 50,000
SSL-VPN Throughput 7 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 10,000
SSL Inspection Throughput (IPS, avg. HTTPS) 8 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) 5,500
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 800,000
Application Control Throughput (HTTP 64K) 15 Gbps
CAPWAP Throughput (HTTP 64K) 18 Gbps
Virtual Domains (Default / Maximum) 10 / 10
Maximum Number of FortiSwitches Supported 96
Maximum Number of FortiAPs (Total / Tunnel) 1,024 / 512
Maximum Number of FortiTokens 5,000
High Availability Configurations Active-Active, Active-Passive, Clustering

Dimensions and Power
Height x Width x Length (inches) 1.75 x 17.0 x 15.0
Height x Width x Length (mm) 44.45 x 432 x 380
Weight 16.6 lbs (7.5 kg)
Form Factor Rack Mount, 1 RU
Power Source 100–240V, 50/60 Hz
Power Consumption (Average / Maximum) 129 W / 244 W
Current (Maximum) 6A@100V
Heat Dissipation 832 BTU/h
Redundant Power Supplies (Hot Swappable) Optional

Operating Environment and Certifications
Operating Temperature 32–104°F (0–40°C)
Storage Temperature -31–158°F (-35–70°C)
Humidity 10–90% non-condensing
Noise Level 59 dBA
Forced Airflow Side and Front to Back
Operating Altitude Up to 9,843 ft (3,000 m)
Compliance FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN, USGv6/IPv6


Compeve DTP#: mrk001
