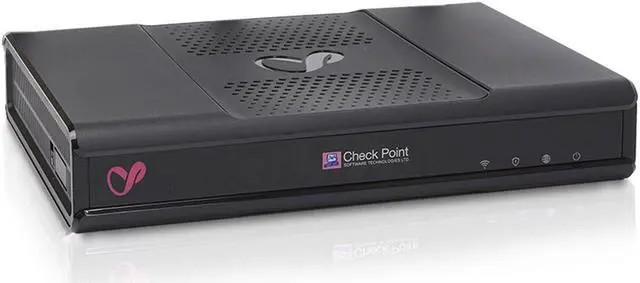

Check Point SG1530 Security switch + 3 year SNBT subscription Premium support

Enterprise Testing Conditions

Threat Prevention (Mbps) 1



300



Next Generation Firewall (Mbps) 2



800



IPS Throughput (Mbps) 900



Firewall Throughput (Mbps) 1, 000



RFC 3511, 2544, 2647, 1242 Performance (LAB)



Firewall 1518 Byte UDP Packets (Mbps) 2, 000



VPN AES-128 Throughput (Mbps) 1, 300



Connections per Second 14, 000



Concurrent Connections 500, 000



Software



Security



Firewall, VPN, User Awareness, QoS, Application Control, URL Filtering, IPS, Anti-Bot, Antivirus, Anti-Spam and



SandBlast Threat Emulation (sandboxing)



Unicast, Multicast Routing OSPFv2, BGPv4 and 4++, RIP, PIM (SM, DM, SSM), IGMP



Mobile Access License (Users) 100



Hardware



WAN Port 1x 10/100/1000Base-T RJ-45 port



LAN Ports 5x 10/100/1000Base-T RJ-45 ports



Radio Band (association rate) 3x3 Dual band 2.4 /5GHz, 11n/ac non-concurrent



Radio Band (association rate) One radio band non-concurrent: 2.4GH z (max 450 Mbps) or 5GHz (max 1, 300 Mbps)



Console Port 1x USB-C



USB Port 1x USB 3.0



Dimensions



Enclosure Desktop, wall mount



Dimensions (W x D x H) 210 x 160 x 37.5 mm, 8.3 x 6.3 x 1.5 in.



Weight 0.43 kg ( 0.95 lbs. )



Environment



Operating / Storage 0ºC ~ 40ºC / -45ºC ~ 60ºC (5~95%, non-condensing)



Power Requirements



AC Input 110 240VAC, 50 60 Hz



Power Supply Rating 12V/ 3.3A 40W power adapter



Certifications



Safety/Emissions/Environment



UL/c-UL 62368-1, IEC 62368-1 CB / EMC, EMI EN55024, EN55032 Class B, VCCI, AS, NZS CISPR 32, IC ICES 03, RSS247,



FCC: Part 15 Class B, C, E / RoHS, REACH, WEEE
