What kind of VPN throughput can I expect from the SonicWall TZ570W Wireless Firewall?

The SonicWall TZ570W Wireless Firewall has a VPN throughput of 1.8 Gbps.

What is the maximum number of simultaneous sessions supported by the SonicWall TZ570W Wireless Firewall?

The SonicWall TZ570W Wireless Firewall supports a maximum of 1,250,000 simultaneous sessions.

$1,151^.27

Free 78-day Returns

Limit 99999 per customer.

Sold by Newegg

Shipped by Newegg

Price alert

Add to Wish List

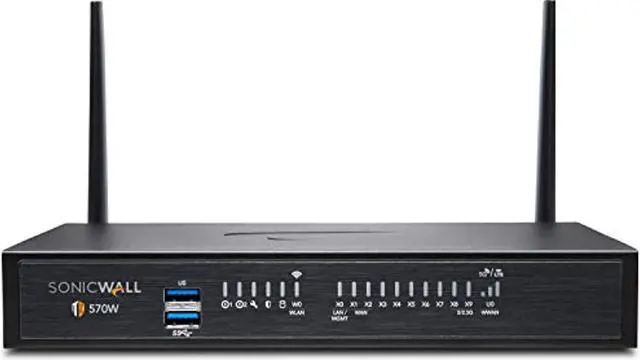

Main image of SonicWall TZ570W Wireless Firewall (Gen 7), Appliance only | 02-SSC-2835

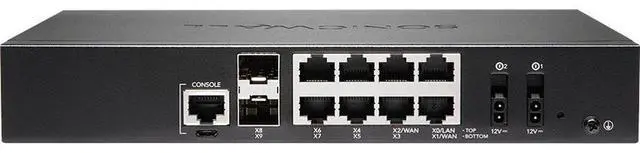

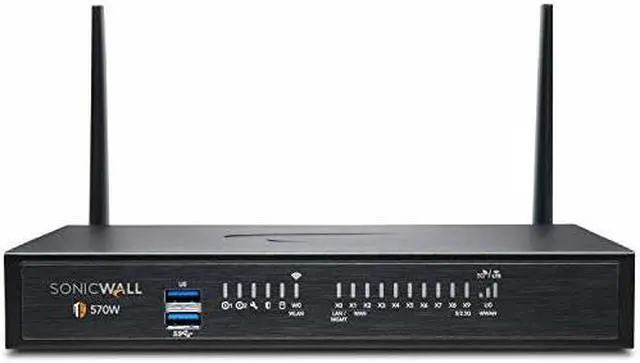

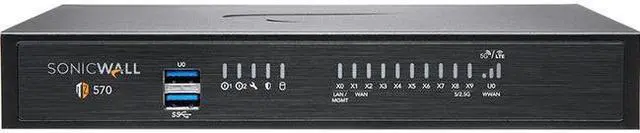

Alt view image 2 of 12 - SonicWall TZ570W Wireless Firewall (Gen 7), Appliance only | 02-SSC-2835

Alt view image 3 of 12 - SonicWall TZ570W Wireless Firewall (Gen 7), Appliance only | 02-SSC-2835

Alt view image 4 of 12 - SonicWall TZ570W Wireless Firewall (Gen 7), Appliance only | 02-SSC-2835

Alt view image 5 of 12 - SonicWall TZ570W Wireless Firewall (Gen 7), Appliance only | 02-SSC-2835

Alt view image 6 of 12 - SonicWall TZ570W Wireless Firewall (Gen 7), Appliance only | 02-SSC-2835

Alt view image 7 of 12 - SonicWall TZ570W Wireless Firewall (Gen 7), Appliance only | 02-SSC-2835

Alt view image 8 of 12 - SonicWall TZ570W Wireless Firewall (Gen 7), Appliance only | 02-SSC-2835

Alt view image 9 of 12 - SonicWall TZ570W Wireless Firewall (Gen 7), Appliance only | 02-SSC-2835

Alt view image 10 of 12 - SonicWall TZ570W Wireless Firewall (Gen 7), Appliance only | 02-SSC-2835

Alt view image 11 of 12 - SonicWall TZ570W Wireless Firewall (Gen 7), Appliance only | 02-SSC-2835

Alt view image 12 of 12 - SonicWall TZ570W Wireless Firewall (Gen 7), Appliance only | 02-SSC-2835

Shop All SonicWall Products

SonicWall TZ570W Wireless Firewall (Gen 7), Appliance only | 02-SSC-2835

Be the first to review this product...

Hardware: TZ 570W

TZ 270
TZ 270W
TZ 370
TZ 370W
TZ 470
TZ 470W
TZ 570
TZ 570W
TZ 670

Option: Hardware Only

Hardware Only
High Availability
Secure Upgrade Plus (Appliance + 2Y APSS)
Secure Upgrade Plus (Appliance + 3Y APSS) +1Y CSE
Total Secure (Appliance + 1Y APSS)

Designed for small to mid-sized organizations and distributed enterprise with SD-Branch locations, the TZ570W series deliver industry-validated security effectiveness with best-in-class price-performance.

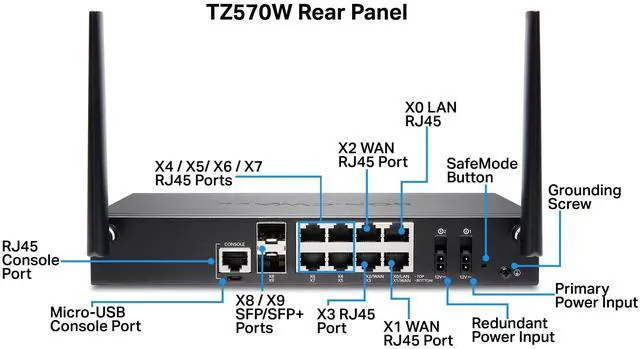

Interfaces: 8x1GbE, 2x5G SFP+, 2 USB 3.0, 1 Console
SD-Branch ready
Secure SD-WAN capability
Zero-Touch Deployment
Single-pane-of-glass-management through cloud or firewall

Overview

Specs

Reviews

See all Q & A

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

TZ570 WIRELESS-AC

Model
Brand	SONICWALL
Series	TZ 570W
Model	TZ 570W
Part Number	02-SSC-2835

Details
Type	Wireless
Form Factor	Desktop
Standards	TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Protocols	BGP, OSPF, RIPv1/v2, static routes, policy-based routing
Security	Security Services Deep Packet Inspection services: Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL Content Filtering Service (CFS): HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists Comprehensive Anti-Spam Service Application Visualization Application Control Capture Advanced Threat Protection
Ports	8x1GbE, 2x5GbE, 2 USB 3.0
Simultaneous Sessions	1250000
Maximum Users	2500

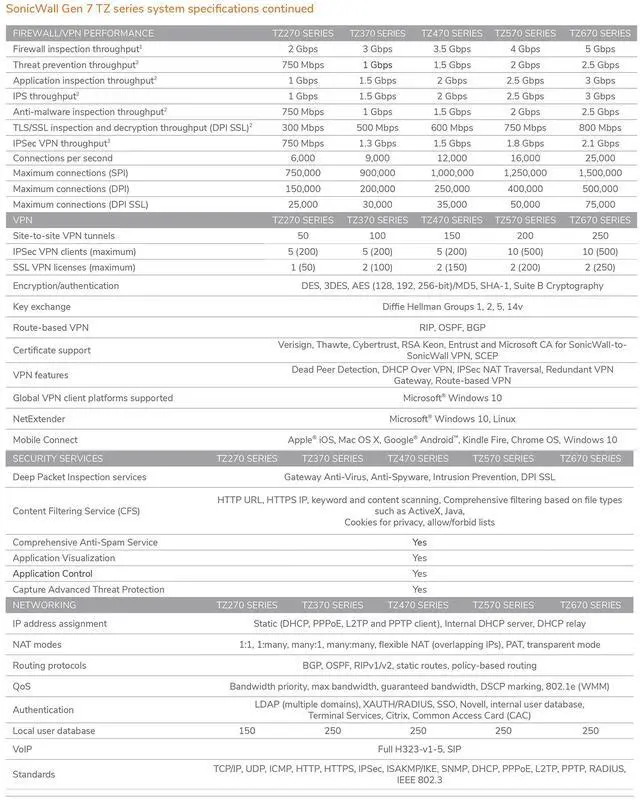

VPN	Site-to-site VPN tunnels: 200 IPSec VPN clients (maximum:) 10 (500) SSL VPN licenses (maximum): 2 (200) Encryption/authentication: DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography Key exchange: Diffie Hellman Groups 1, 2, 5, 14v Route-based VPN: RIP, OSPF, BGP Certificate support: Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to- SonicWall VPN, SCEP VPN features: Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN Global VPN client platforms supported: Microsoft®, Windows 10 NetExtender: Microsoft®, Windows 10, Linux Mobile Connect: Apple® iOS, Mac OS X, Google® Android™, Kindle Fire, Chrome OS, Windows 10 Firewall/VPN Performances Firewall inspection throughput: 4 Gbps Threat prevention throughput: 2 Gbps Application inspection throughput: 2.5 Gbps IPS throughput: 2.5 Gbps Anti-malware inspection throughput: 2 Gbps TLS/SSL inspection and decryption throughput (DPI SSL): 750 Mbps IPSec VPN throughput: 1.8 Gbps Connections per second: 16,000 Maximum connections (SPI): 1,250,000 Maximum connections (DPI): 400,000 Maximum connections (DPI SSL): 50,000
Certifications	FIPS 140-2 Level 2 (with Suite B), IPv6/USGv6, ICSA Network Firewall, ICSA Firewall Enterprise, ISCA Network Antivirus / AntiMalware
Compliance	FCC Class B, FCC P15C, FCC P15E, ICES Class B, ISED/ IC, CE (RED, RoHS), C-Tick, VCCI Class B, Japan Wireless, UL/cUL, CB, Mexico DGN notice by UL, WEEE, REACH, BSMI, NCC (TW) KCC/MSIP, SRRC, ANATEL
Power Input	100-240 VAC, 50-60 Hz
Max Power Consumption	15.3W

Features
Features	Integrated Wireless Standards: 802.11a/b/g/n/ac Wave 2, WEP, WPA, WPA2, 802.11i, TKIP, PSK,02.1x, EAP-PEAP, EAP-TTLS Frequency bands: 802.11a: 5.180-5.825 GHz; 802.11b/g: 2.412-2.472 GHz; 802.11n: 2.412-2.472 GHz, 5.180-5.825 GHz; 802.11ac: 5.180-5.825 GHz Operating channels 802.11a: 12 802.11b/g: 1-11 802.11n (2.4 GHz): 1-11 802.11n (5 GHz): 36-48/149-165 802.11ac: 36-48/149-165 Transmit output power: Based on the regulatory domain specified by the system administrator Transmit power control Data rates supported: 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps per channel; 802.11b: 1, 2, 5.5, 11 Mbps per channel; 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps per channel; 802.11n: 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72.2, 15, 30, 45, 60, 90, 120, 135, 150 Mbps per channel; 802.11ac: 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72.2, 86.7, 96.3, 15, 30, 45, 60, 90, 120, 135, 150, 180, 200, 32.5, 65, 97.5, 130, 195, 260, 292.5, 325, 390, 433.3, 65, 130, 195, 260, 390, 520, 585, 650, 780, 866.7 Mbps per channel Modulation technology spectrum: 802.11a: Orthogonal Frequency Division Multiplexing (OFDM); 802.11b: Direct Sequence Spread Spectrum (DSSS); 802.11g: Orthogonal Frequency Division Multiplexing (OFDM)/Direct Sequence Spread Spectrum (DSSS); 802.11n: Orthogonal Frequency Division Multiplexing (OFDM); 802.11ac: Orthogonal Frequency Division Multiplexing (OFDM)

Dimensions & Weight
Dimensions	3.5x15x22.5 (cm) 1.38x5.91x8.85 in
Weight	0.99 kg / 2.18 lbs
