Type | Wired |
---|
Form Factor | Desktop |
---|
Standards | TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3 |
---|
Protocols | BGP, OSPF, RIPv1/v2, static routes, policy-based routing |
---|
Security | Deep Packet Inspection services: Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL Content Filtering Service (CFS): HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists Comprehensive Anti-Spam Service Application Visualization Application Control Capture Advanced Threat Protection |
---|
Encryption Standard | DES, 3DES, AES |
---|
Frequency Band | 2.4 GHz/5 GHz |
---|

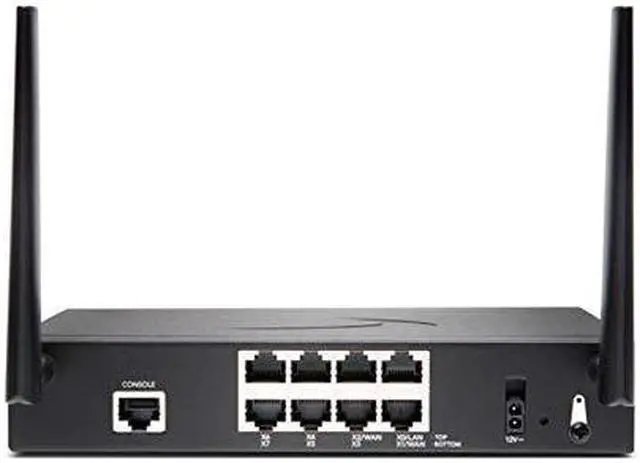

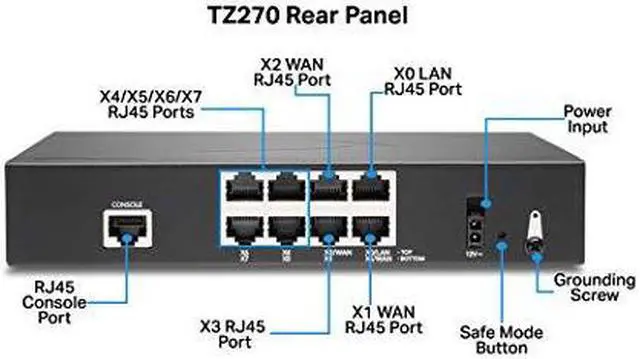

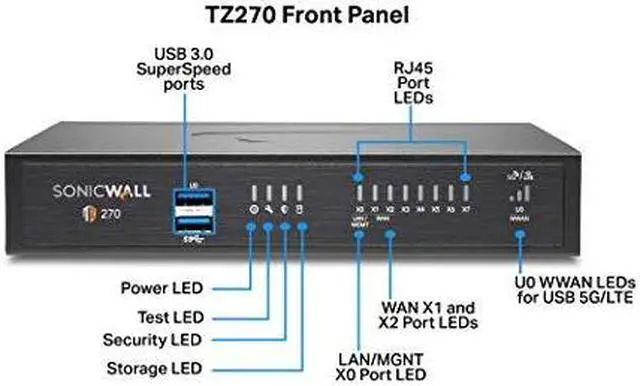

Ports | 8x1GbE, 2 USB 3.0, 1 Console |
---|
Simultaneous Sessions | 750000 |
---|
Maximum Users | 1000+ |
---|
VPN | Firewall / VPN Performance
Firewall inspection throughput: 2 Gbps Threat prevention throughput: 750 Mbps Application inspection throughput: 1 Gbps IPS throughput: 1 Gbps Anti-malware inspection throughput: 750 Mbps TLS/SSL inspection and decryption throughput (DPI SSL): 300 Mbps IPSec VPN throughput: 750 Mbps Connections per second: 6,000 Maximum connections (SPI): 750,000 Maximum connections (DPI): 150,000 Maximum connections (DPI SSL): 25,000
VPN
Site-to-site VPN tunnels 50 IPSec VPN clients (maximum) 5 (200) SSL VPN licenses (maximum) 1 (50) Encryption/authentication: DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography Key exchange: Diffie Hellman Groups 1, 2, 5, 14v Route-based VPN: RIP, OSPF, BGP Certificate support: Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to- SonicWall VPN, SCEP VPN features: Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN Global VPN client platforms supported: Microsoft® Windows 10 NetExtender: Microsoft® Windows 10, Linux Mobile Connect: Apple ® iOS, Mac OS X, Google® Android™ , Kindle Fire, Chrome OS, Windows 10 |
---|
OS Support | Windows, Mac, Linux |
---|
Certifications | FIPS 140-2 Level 2 (with Suite B), IPv6/USGv6, ICSA Network Firewall, ICSA Firewall Enterprise, ISCA Network Antivirus / AntiMalware |
---|
Compliance | FCC Class B, ICES Class B, CE (EMC, LVD, RoHS), C-Tick, VCCI Class B, UL, cUL, CB, Mexico CoC by UL, WEEE, REACH, BSMI, KCC/ MSIP, ANATEL |
---|
Power Input | 36W external |
---|
Max Power Consumption | 16.84W |
---|
