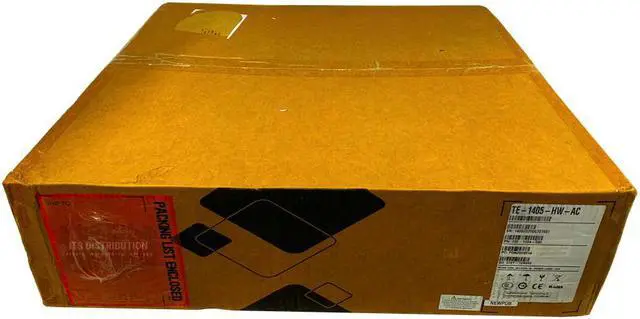

Infoblox Next Level Trinzic Enterprise TE-1405 DDI Appliance (TE-1405-HW-AC) 150-1004-000

TE-1405 Network Interfaces Options • Two 10/100/1000 Base-T Ethernet (LAN ports) • One 10/100/1000 Base-T Ethernet (HA port) • One 10/100/1000 Base-T Ethernet (MGMT port) •
NIC Card: No card, 1GE or 10GE NIC •
Transceiver: Four 1GE SFP or 1GE/10GE SFP+ interfaces* Lights Out Management (LOM) • One 10/100/1000 Base-T Ethernet LOM port; IPMI 2.0 compliant • Supports IPv4 Serial Port DB-9 (9600/8n1, Xon/Xoff ) USB Ports One USB 3.0 / 2.0 compliant (reserved for
future use) LCD Panel NA Unit Identification Front and back AC Power Supply (SKU Option) • Two hot-swappable AC PSUs •
Input voltage: 100–240 VAC switchable, 50–60 Hz •
Output power: 600W Chassis Ground Included (ground lug) Disk and Fans • Six fixed fans • Two field-replaceable hard drives • System on flash Operating Temperature • 41°F to 95°F (5°C to 35°C) • 5% to 95% relative humidity, non-condensing Storage Temperature • -40°F to 122°F (-40°C to 50°C) • 5% to 95% relative humidity, non-condensing Dimensions and
Weight • Enclosure: 1U, 19 in., rack mountable •
Height: 44 mm ( 1.73 in. ); 1 rack unit •
Width: 441 mm ( 17.36 in.
) • Depth: 547 mm ( 21.54 in.
) • Weight: Approximately 20 lbs ( 9.07 kg) Hardware only, no licenses, warranty or software included.
