Fashion model: Partaker H10 Firewall Mini PC
CPU: Intel Celeron N5095, 4 Cores 4 Threads, Main Frequency 2.00-2.90Ghz
Memory: 2 * DDR4 2400/2666/2933 SO-DIMM, maximum 16GB RAM
Storage:1 * mSATA Slot, 1 * 7pin SATA 3.0, support 2.5 inch HDD/SSD
Display Chip:Intel UHD Graphics
Link: VGA Display connector, 1 * HD-MI
For I/O: 5 * Intel I225-V3 2.5G Gigabit Network Card, 2 * USB3.0, 2 * USB2.0, 2 * COM Ports, 1 * HD-MI, 1 * VGA
Extension Connector: USB3.0, Mini PCie(PCI, either WiFi or 4G)
CPU Fan: Passive Heat Dissipation (Fanless)
Power source: External power 12V 4A DC5.5*2.5 (optional)
Support System: Windows,10, server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Lede/Liunx
Working humidity: 0% ~ 95% (non-condensing state)
Working temperature: 10°C ~ 60°C
Safety Certification: CE/CCC/FCC Class A/ROHS
Product Measurement: 187*120*50mm
Machine Fan: NO FAN

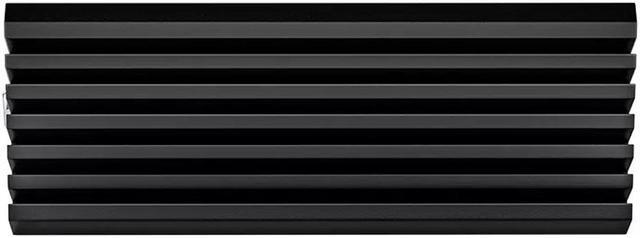

Material: Aluminum 1*2.5Hard drive position7-9MM height
Packaging Contains: OPS, a power cord, a set of warranty cards
| Processor |
Intel Celeron N5095 quad-core and four-thread, main frequency: 2.0GHz |
| Chipset |
N5095 (optional N5105) |
| BIOS |
AMI EFI BIOS |
| Memory |
1 x DDR4 2933MHz SODIMM memory slot, up to 32GB |
| Storage |
1 x mSATA solid-state drive, 1 x 2.5-inch hard drive |
| Graphics |
Integrated Intel HD Graphiacs 600 core graphics card |
| Display Ports |
1 x VGA, 1 x HDMI |
| Front I/O Ports |

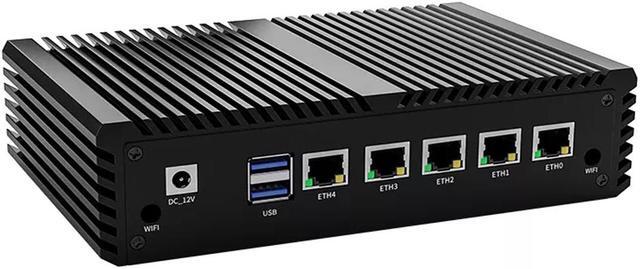

5 x INTEL I225/I226 2.5G network port, 1 x power adapter interface, 2 x USB3.0 |
| Rear I/O Ports |

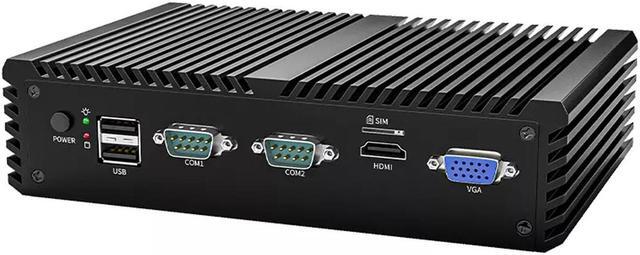

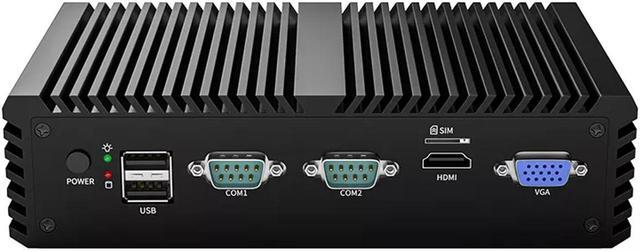

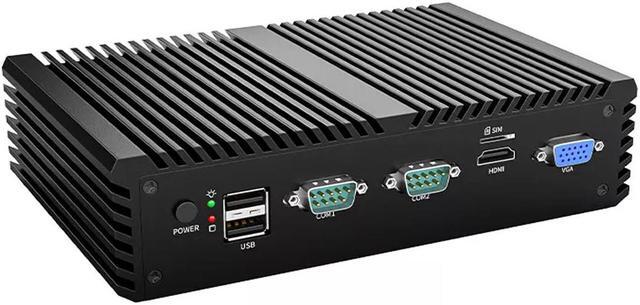

2 x USB2.0, 2xDB9 COM, 1xHDMI (with output audio), 1x power button, 1xSIM card slot, 1xVGA interface |
| Expansion slot |
Support 2 MINIPCIE channels (WIFI/Bluetooth/4G available) |
| Network |
5 x INTEL I225/I226 2.5 network card (optional 4 POE, Pay extra cost, contact us if need) |
| Function |
Power-on boot, scheduled boot, wake-up on LAN, PXE boot, watchdog |
| Power |
DC24V-5A 5.5*2.5 |
| Size |
187x120x50(mm) |
| Operating temperature |
-0~+50°C (commercial HDD), -20°C~+50°C (industrial SSD), surface air flow |
| Ambient temperature |
5~90°C relative humidity, non-condensing |
