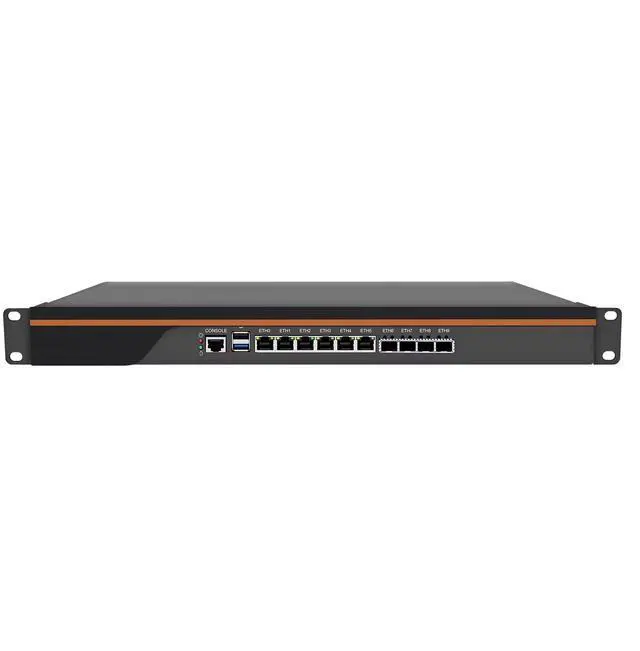

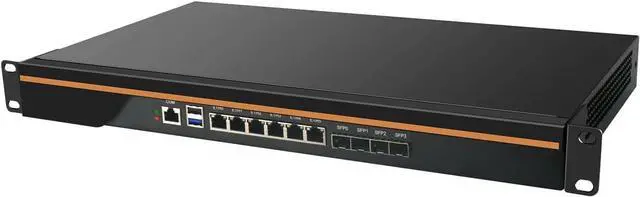

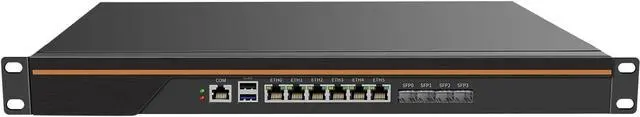

Partaker 1U Firewall Appliance, Network Firewall Hardware, OPNsense, VPN, Router PC, Denverton Atom C3808, R6, 6 x 1GbE LAN, 4 x SFP+ X553 10GbE, 32G RAM, 1TB SSD
- Partaker R6 with Atom C3808 processor with AES-NI hardware encryption, optimized for high-speed firewall traffic handling; compatible with FreeBSD, Linux, and Windows for versatile deployment.
- Seamlessly integrates with pfSense, OPNsense, and other open-source firewall platforms; UEFI boot support ensures hassle-free setup and configuration.
- 1U rack-mountable chassis with branded DDR4 RAM and high-endurance SSD; ATX power supply included (pre-installed OS optional), ready for immediate deployment.
- 6x Gigabit LAN ports + 4x 10G SFP+ fiber ports; USB 2.0/3.0, Console management, and VGA support; compact 484 x 252 x 48mm design for flexible rack integration.
- Industrial-grade motherboard with ultra-low power consumption; turbo silent cooling fan ensures 24/7 reliability in data centers or enterprise environments.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model Number: Partaker R6
CPU: Intel Atom Processor C3808 12M Cache, up to 2.0 GHz
AES-NI Supported: Yes
Memory: 2 x SODIMM DDR4 2400 MT/s, MAX. 64GB RAM
Storage: 1 x M. 2 2280 NVME PCIE 3.0 x2 SSD, 1 x 2.5 Inch SATA SSD/HDD
Network Card: 2 x Intel I211 1GbE LAN, 4 x I350 1GbE LAN, 4 x SFP+ Optical, the SFP+ model is X553

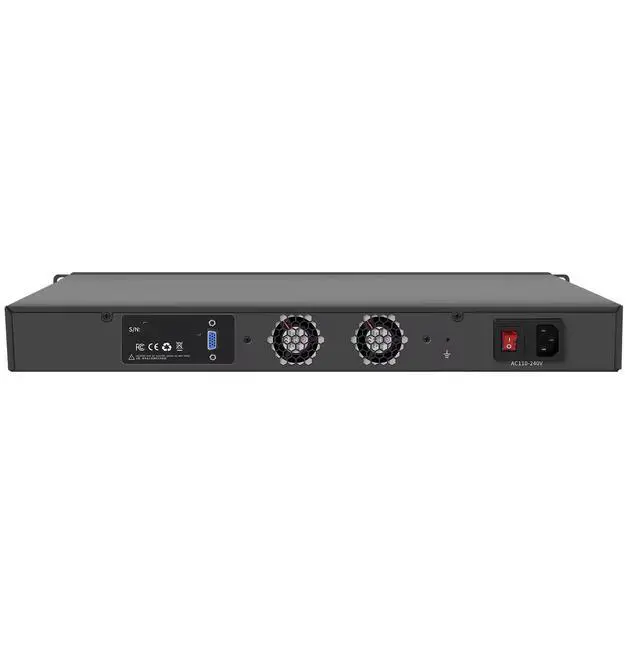

I/O Interface: Console, USB 2.0, USB 3.0, 6 x LAN, 4 x SFP+ Optical, AST 2400 VGA, Power Switch, AC Socket
Expansion: 1 x Mini PCIE slot for WiFi/4G, 1 x M. 2 3052 USB 3.0 x1 signal slot for WiFi/4G, with SIM slot, 1 x PCIe x8 slot
Chassis: 1U 19 inch cabinet, rackable, with mounting bracket ears, wall hanging, foot pad
Power: 100-240V 1.0A, 12V 6.25A
Operating Temperature: -0~+50°C commercial HDD, -20°C~+50°C industrial SSD, surface air flow
Ambient Temperature: 5%~90% non-condensing
TDP: 25W
Cooling System: The processor uses the ball silent cooling fan to ensure the long time work and stable cooling
Size: 484 x 252 x 48mm
Weight: 3.2 kgs
Packing List: Partaker R3 firewall appliance, rackable ears, power cord, warranty card
Function: Supports hardware auto power on enabled default, Scheduled boot, Wake-up on LAN, PXE boot, Watchdog
System Compatibility: 5.10. x and above core-based freebsd router systems, linux distros, or win. os supported
Compatibility: firewalls for pfsense, opnsense and other popular open-source software solutions
4-12 LAN/WAN Ports, Different CPU, Nano Type, Mini Type, 1U/2U rackable, 9-15 inch rackable, all are available in our shop,
Bookmark Partaker store, for customization needs and other needs, we shall be glad to supply, contact us to get a timely reply
CPU: Intel Atom Processor C3808 12M Cache, up to 2.0 GHz
AES-NI Supported: Yes
Memory: 2 x SODIMM DDR4 2400 MT/s, MAX. 64GB RAM
Storage: 1 x M. 2 2280 NVME PCIE 3.0 x2 SSD, 1 x 2.5 Inch SATA SSD/HDD
Network Card: 2 x Intel I211 1GbE LAN, 4 x I350 1GbE LAN, 4 x SFP+ Optical, the SFP+ model is X553
I/O Interface: Console, USB 2.0, USB 3.0, 6 x LAN, 4 x SFP+ Optical, AST 2400 VGA, Power Switch, AC Socket
Expansion: 1 x Mini PCIE slot for WiFi/4G, 1 x M. 2 3052 USB 3.0 x1 signal slot for WiFi/4G, with SIM slot, 1 x PCIe x8 slot
Chassis: 1U 19 inch cabinet, rackable, with mounting bracket ears, wall hanging, foot pad
Power: 100-240V 1.0A, 12V 6.25A
Operating Temperature: -0~+50°C commercial HDD, -20°C~+50°C industrial SSD, surface air flow
Ambient Temperature: 5%~90% non-condensing
TDP: 25W
Cooling System: The processor uses the ball silent cooling fan to ensure the long time work and stable cooling
Size: 484 x 252 x 48mm
Weight: 3.2 kgs
Packing List: Partaker R3 firewall appliance, rackable ears, power cord, warranty card
Function: Supports hardware auto power on enabled default, Scheduled boot, Wake-up on LAN, PXE boot, Watchdog
System Compatibility: 5.10. x and above core-based freebsd router systems, linux distros, or win. os supported
Compatibility: firewalls for pfsense, opnsense and other popular open-source software solutions
4-12 LAN/WAN Ports, Different CPU, Nano Type, Mini Type, 1U/2U rackable, 9-15 inch rackable, all are available in our shop,
Bookmark Partaker store, for customization needs and other needs, we shall be glad to supply, contact us to get a timely reply
