NEOSMAY Micro Firewall Appliance,12th Gen Core i7-1260P,16GB RAM 512GB NVME SSD,MINI PC,Soft Router,WiFi 6,BT 5.2,Thunderbolt 4,Dual 2.5Gbe LAN,Type-C/DP/HDMIx2,COMx2,USBx8(USB3.2x4),VESA mount
- Excellent performance: 12th Gen Core i7-1260P,Up to4.7GHz,12 Cores 16 Threads,12 MB Smart Cache.16GB RAM 512GB NVME SSD.
- Support upgrade RAM & SSD:2x SO-DIMM DDR4-2666/3200, max support 64GB(not included); a.1 x M.2 2280 SSD slot, support SATA/ NVME PCIe Gen4 SSD, b. 1 x M.2 2280 SSD slot, support NVME SSD, c. 1 x SATA III for 2.5"HDD/SSD.
- Support 4K Four Screen Display: Iris® Xe Graphics(Max 1.3GHz), Mini PC euqipped with via 2*HDMI 2.0b, DisplayPort and Type-C. You could connect Four independent displays, and perform different tasks on the four screens.
- Versatile connectivity options: 2.5Gbe Dual network interface. Type-C (thunderbolt 4)*1,COM 485 * 1,COM 232 * 1,4*USB3.2 Gen2 USB Type-A, upto 10Gbps, 4*USB2.0.
- Compact and space-saving design: Chassis:185*125*60mm, Support VESA Mount,You could mount it on the back of the monitor, which greatly saves your place.
- Operation System: Compatible with Windows 11, Windows 10, Linux OS.WiFi 6 network card, Bluetooth 5.2.
Overview
Specs
Reviews
Model: KC12-F
Dimension: 185mm (L) x125mm (W) x60mm (H)
CPU: Core i7-1260P
GPU: Iris Xe Graphics
Ram: 2 x SO-DIMM DDR4 slots, support 3200MHz
SSD:1 x M. 2 2280 SSD slot, support SATA/ NVME PCIe Gen4 SSD, 1 x M. 2 2280 SSD slot, support NVME SSD
HDD: 1 x SATA III for 2.5"HDD /SSD
WiFi/BT: WiFi 6+Bluethooth 5.2
Lan: Dual 2.5Gbe LAN RJ 45

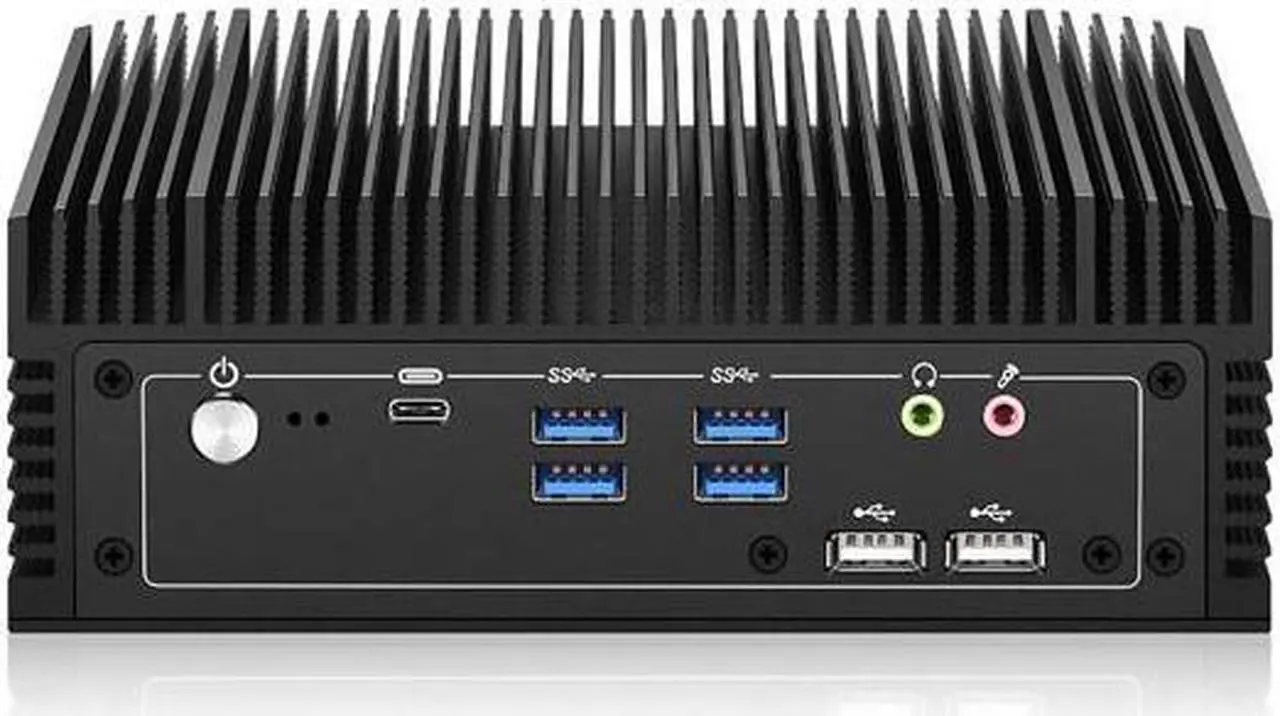

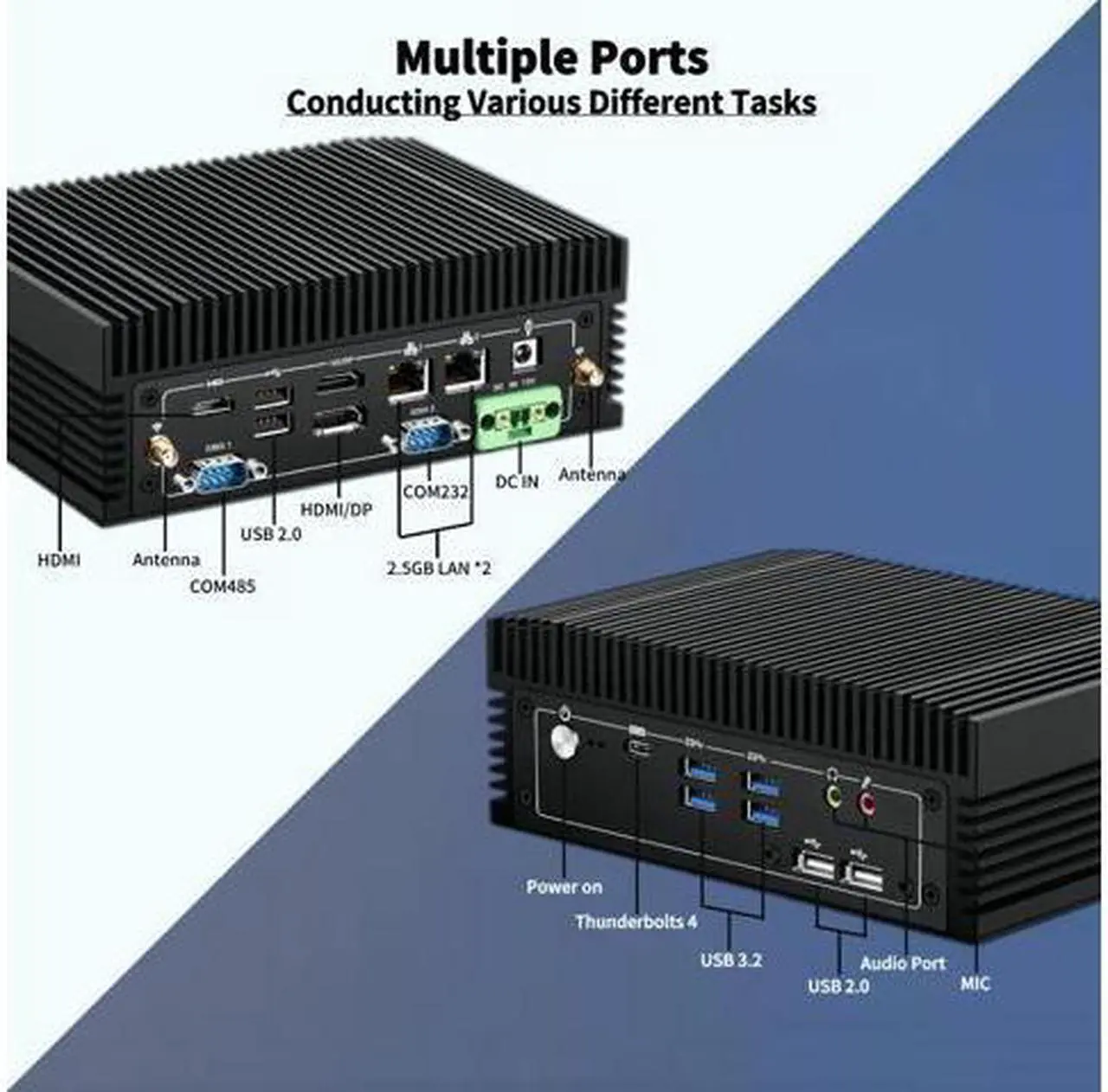

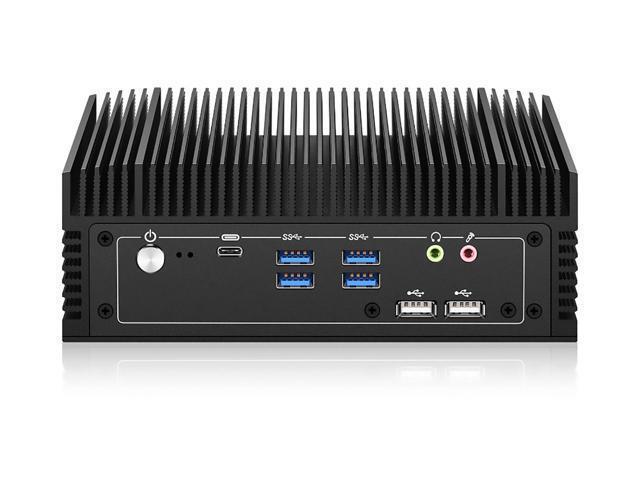

Front I/O: 4 x USB 3.2, 2 x USB 2.0,1 x Type-C (Thunderbolt), 1 x Power Button, 1 x MIC /Audio port

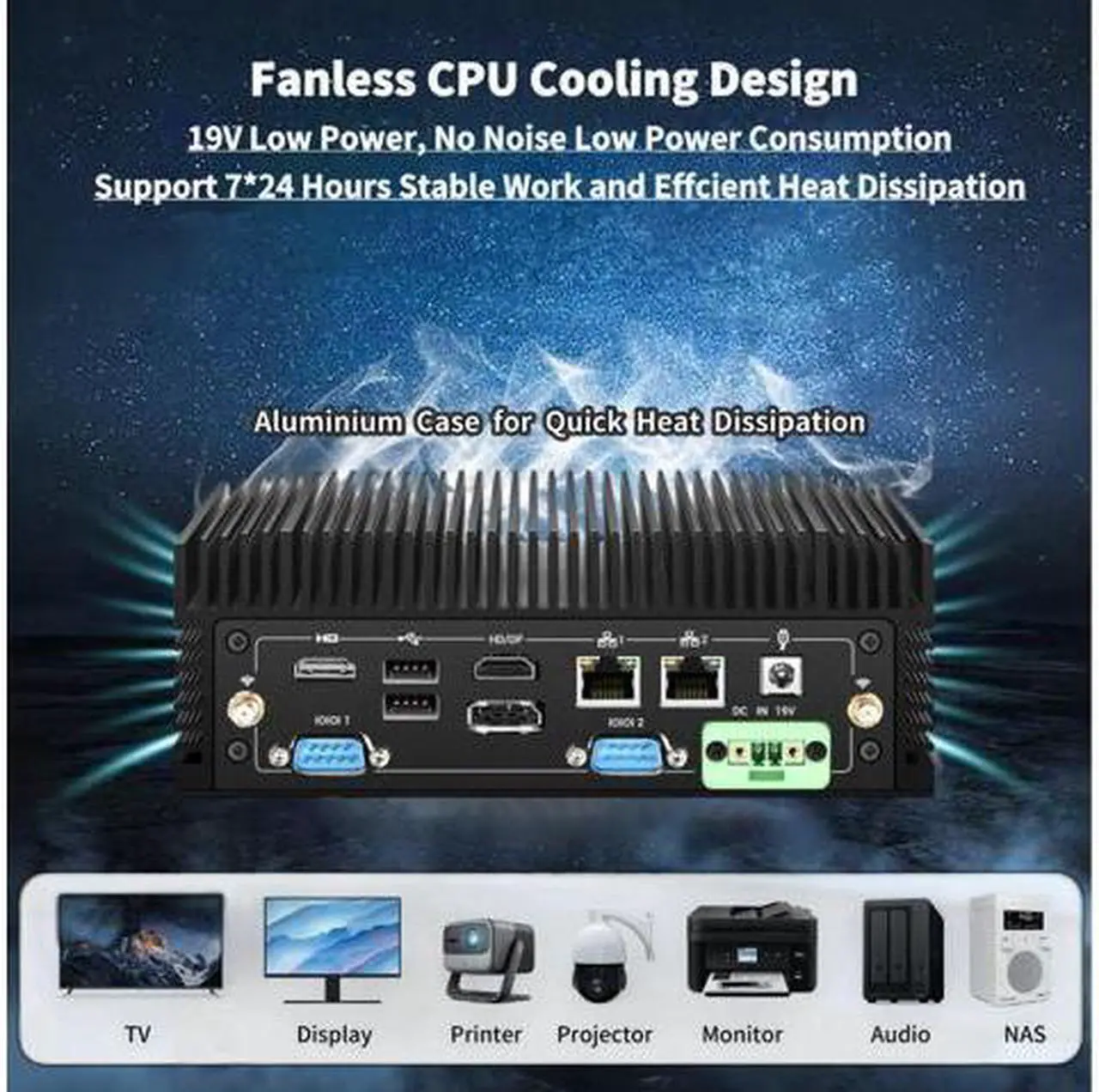

Back I/O: 2 x USB 2.0, 2 x RJ45 LAN, 2 x HDMI 2.0, 1 x DP, 1 x COM 232, 1 x COM 485,1 x DC-IN, 2 x Antenna
OS: Windows 11 pro
Power: 19V 4.74A

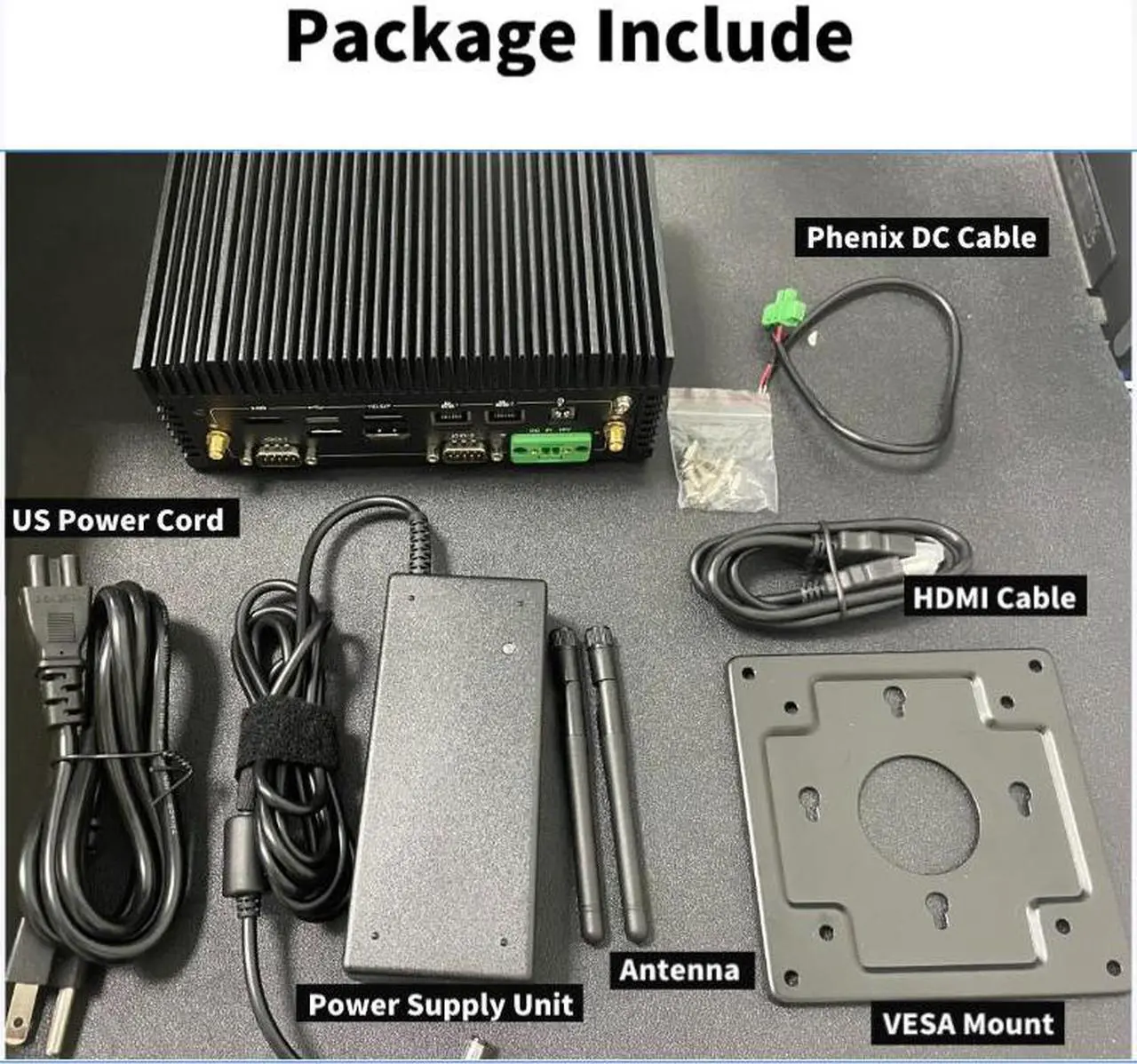

ACCESSORIES:Quick User Guide,AC Adapter,HDMI cable,VESA mount
Dimension: 185mm (L) x125mm (W) x60mm (H)
CPU: Core i7-1260P
GPU: Iris Xe Graphics
Ram: 2 x SO-DIMM DDR4 slots, support 3200MHz
SSD:1 x M. 2 2280 SSD slot, support SATA/ NVME PCIe Gen4 SSD, 1 x M. 2 2280 SSD slot, support NVME SSD
HDD: 1 x SATA III for 2.5"HDD /SSD
WiFi/BT: WiFi 6+Bluethooth 5.2
Lan: Dual 2.5Gbe LAN RJ 45
Front I/O: 4 x USB 3.2, 2 x USB 2.0,1 x Type-C (Thunderbolt), 1 x Power Button, 1 x MIC /Audio port
Back I/O: 2 x USB 2.0, 2 x RJ45 LAN, 2 x HDMI 2.0, 1 x DP, 1 x COM 232, 1 x COM 485,1 x DC-IN, 2 x Antenna
OS: Windows 11 pro
Power: 19V 4.74A
ACCESSORIES:Quick User Guide,AC Adapter,HDMI cable,VESA mount
