2x1 4K 120Hz Switch eARC Audio Extractor ARC Optical Toslink 2.0 Switch 4K 60Hz Switcher Remote for Apple TV PS4

(Kind reminder: 3.5 mm audio does not support ARC/eARC function)

Features:

1. The 2x1 4K 120Hz HDMI 2.0 Switch eARC audio extractor is a high-performance 2 HDMI input and 1 HDMI output switch with audio output. HDMI/Theslink/ 3.5 mm jack audio output supports audio extraction function, only audio HDMI/Theslink/coaxial supports ARC (audio return channel), only audio HDMI supports eARC (enhanced audio return channel). Except for Gao Da 4Kx2K@60 /120Hz

RGB 8:8: 8.

2. Excellent quality, metal shell, sturdy and durable.

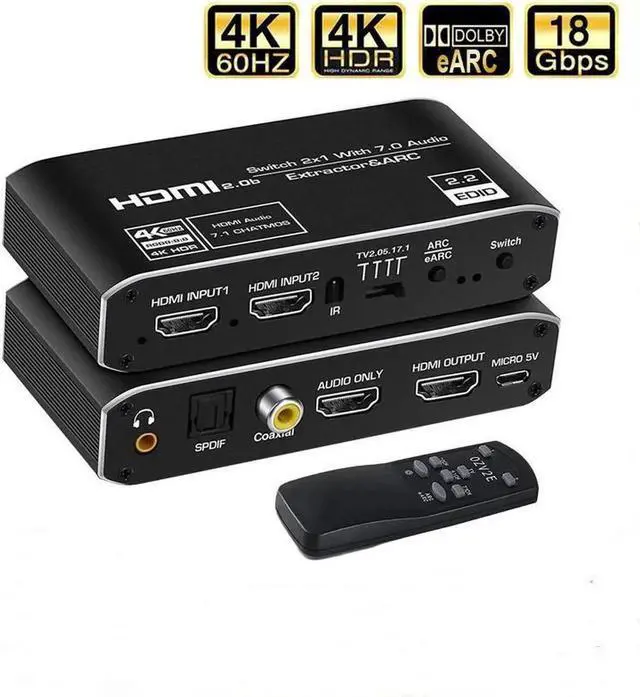

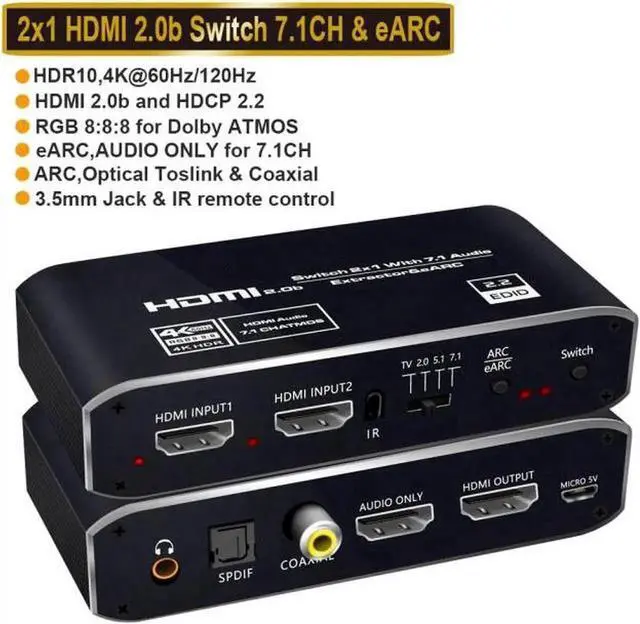

3. There are 2 HDMI inputs, 1 HDMI output, 1 Toslink audio output, 1 port coaxial audio output, 1 3.5 mm audio jack, and 1 port HDMI audio output.

4. HDMI (audio only) /coaxial/optical link SPDIF audio output supports audio return channel function (ARC)

5. Only audio HDMI supports eARC (Enhanced Audio Return Channel)

6. 3.5 mm jack output supports audio extraction function, does not support ARC/eARC

Supports 480i/480p/576i/576p/ 720p@50 /60 Hz/ 1080p@50 /60 Hz/ 4Kx2K@30 /60/120Hz with 24 bit

RGB 8:8: 8/YcbCR

4:4: 4(

4k@60hzYUV 4:4: 4).

7.

Maximum bandwidth per channel: 600MHz.

Maximum baud rate per monitor: 18.5G bps

8. Compatible with HDR 10, HDMI 2.0 b, and HDCP 2.3 / 2.2 / 1.4 / 1.3 / 1.2 / 1.1.

9. HDMI Switch supports LPCM 7.1CH, Dolby True-HD, DTS-HD, AC 3, DTS, DSD, Dolby Digital Plus, and Dolby Atmos audio formats, but cannot decode these audio formats. If your amplifier or speaker does not support these audio formats, the speaker or amplifier will not output audio. In this case, please set the audio format to PCM/LPCM on the HDMI source.

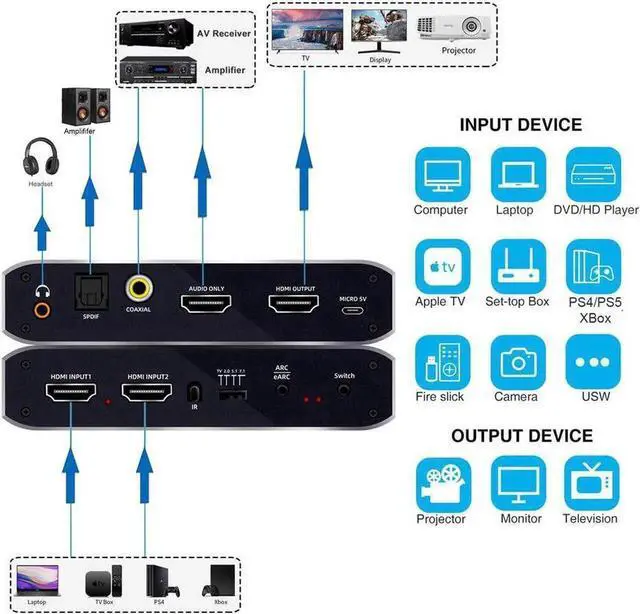

10. HDMI audio extractor - With optical TOSLINK SPDIF+coaxial+ 3.5 mm+HDMI audio output, it can extract the sound from HDMI input sources (such as PS5/4, Xbox one, etc. ) to the speaker or amplifier without connecting to a TV or monitor.

11. HDMI ARC/eARC switch adapter - extracts audio from the IV to the speaker or amplifier. Connect the TV HDMI (ARC/eARC) port to this switch's HDMI output port using an HDMI cable, then connect the optical/coaxial/HDMI cable to the speaker, speaker, home theater, AV receiver, etc., and then turn on the "ARC/eARC" button.

HDMI input compatible with any HDMI device: such as PS4/Roku/Fire TV/Blu ray player/Apple TV/Xbox/Nintendo Switch/PS4Pro/Xbox 3 60/Xbox One X/PS3/Beamer/laptop and other HDMI signal sources.

HDMI video/audio output: monitor, TV, projector. HDMI audio/SDIF/coaxial/ 3.5 mm audio output: receivers, amplifiers, speakers, headphones, and other audio devices.

12. Each channel supports 24 bit deep color (please note: it is not compatible with DVI and we do not recommend using HDMI-DVI cables to connect to the projector/monitor).

13. We strongly recommend using AWG 26 (19+1) standard HDMI 2.0 cables. When the resolution is 4K@60Hz If the resolution is lower than, it can reach up to 8 meters in front and back 4K@30Hz.

Specifications

:

Product type: HDMI switch eARC audio extractor

Input port: 2 GHz

Output port: HDMI

HDMI audio output: supports ARC/eARC function

Toslink audio output: supports audio return channel function

Coaxial audio output: supports audio return channel function

3.5 mm jack output: supports audio extraction function

Audio support: LPCM 7.1CH, Dolby TrueHD, and DTS - high-definition main audio

Video resolution: up to 4k@60 /120Hz RGB 8:8: 8

Product size: 60 * 82 * 22mm

Packaging includes:

1 * HDMI switch eARC audio extractor

1 * User manual

1 * USB power cord

1 * Remote control (without battery)

Important reminder:

1. When using eARC or ARC speakers, please use HDMI input to connect to our device's AUDIO ONLY HDMI port. Do not use HDMI ARC input and HDMI eARC input that cannot obtain any audio.

2. When using the eARC audio extractor 4K@120Hz Please use all HDMI cables and 19 pin HDMI version 2.1 cables (HDMI 2.1 cables smaller than 3 meters). We recommend that you use an HDMI 2.1 cable that works well with the eARC audio extractor.

3. ARC/eARC, please first ensure that your monitor supports ARC/eARC functionality. Secondly, use an HDMI cable to plug the plug into the HDMI ARC/eARC port on the monitor. Insert the HDMI output on the other side of the switch.
