Stereo Hi-Fi Audio Balun, Analog Audio Extender, Stereo RCA to Stereo RCA Audio Over Cat5e/Cat 6 Extender

Stereo RCA to Stereo RCA Audio Extender

The product is designed for audio applications where full-range, hi-fidelity audio frequency response is required.

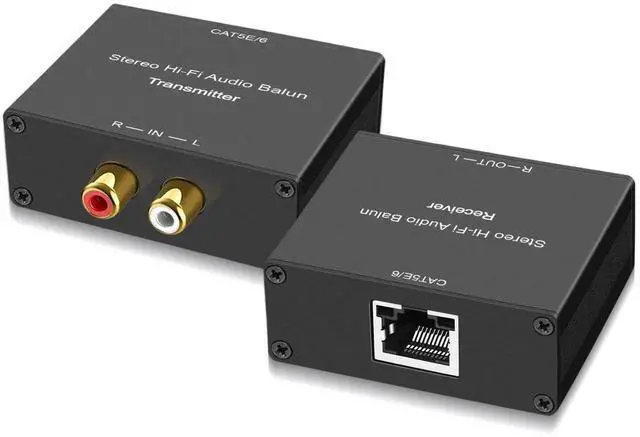

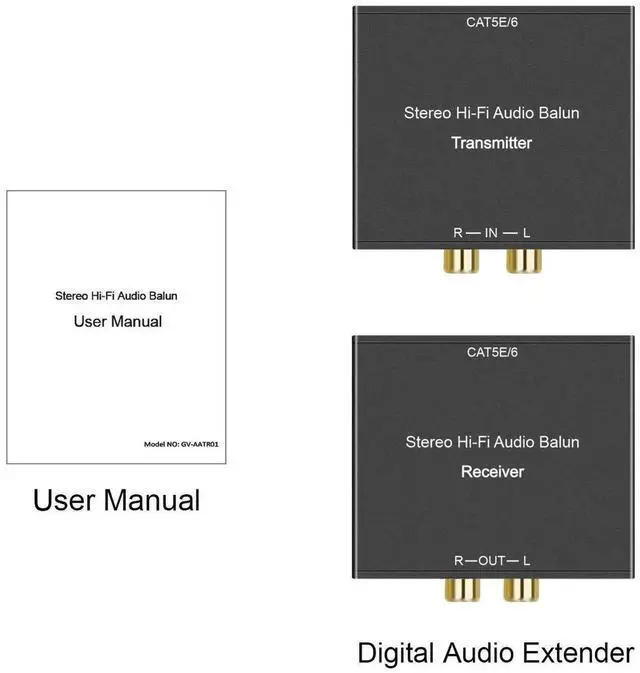

Set of 2 audio baluns - 1 receiver and 1 transmitter

Used in pairs, the Stereo Hi-Fi Audio Balun eliminates costly and bulky coaxial cable, allowing audio equipment to be connected or moved within a structured cabling environment.

The Stereo Hi - Fi Audio Balun allows one Analog Stereo Hi-Fi Audio to be transmitted Via Cat5/5e/6 Cable, up to 1000 foot-- 1600 foot in a point - to - point connection.

It is built in surge suppressor to protect audio equipment against damaging voltage spikes.

Its integrated ground loop isolation prevents annoying "hum-bars" common noise with long distance installations.

Analog Audio Extender Applications

Boardroom Systems, Classroom training, Auditoriums, Custom home installations, Intercom systems ect

Sound Link Audio

Maximum Input: 2V RMS

Audio Source Impedance: 100 ohms maximum

Audio Receiver Impedance: 10 k ohms minimum

3dB Bandwidth 20 Hz to 20 KHz over the distance range

Insertion Loss per balun pair Less than 3 dB over the frequency range.

Common Mode Rejection Greater than 60 dB @ 1KHz Greater than

40 dB over the frequency and distance range

THDMaximum 0.007% @ 1 KHz over distance range

Plug and Play:

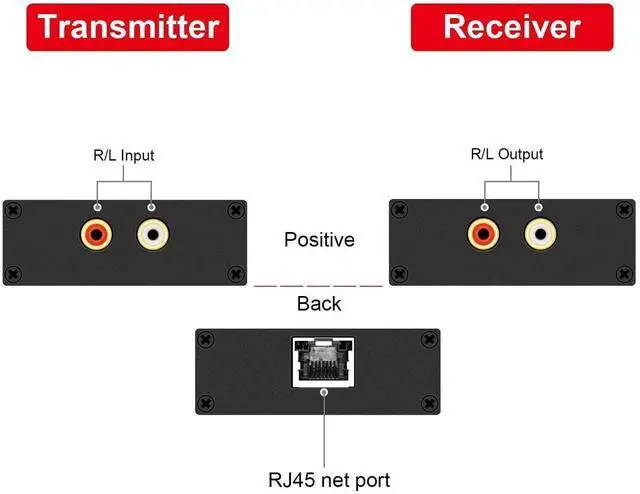

Left (White) and Right (Red) stereo audio RCA connectors

Transmission Balun into the HI-FI audio output of the source component

Receive Balun into your desired input component.

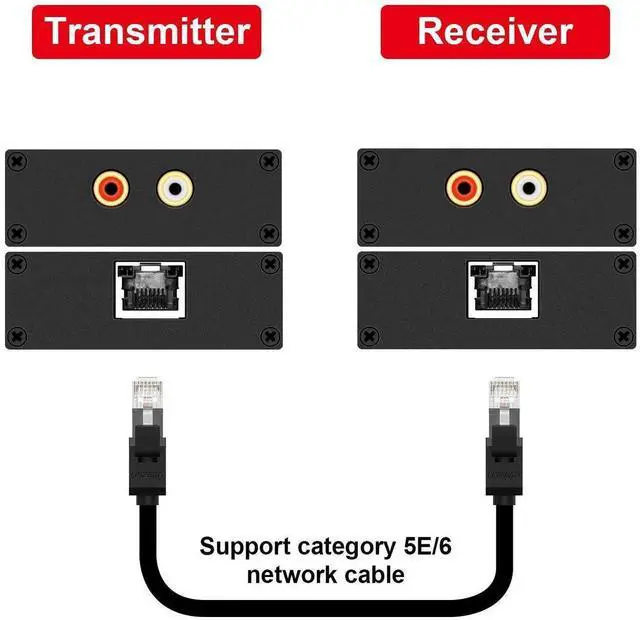

Insert the Cat5e/Cat6 cable into both ends of the Baluns.

NOTE:

Usually use the length of 1000 foot--1650 foot.

It can be up to 3280 foot, but there will be slight crosstalk.
