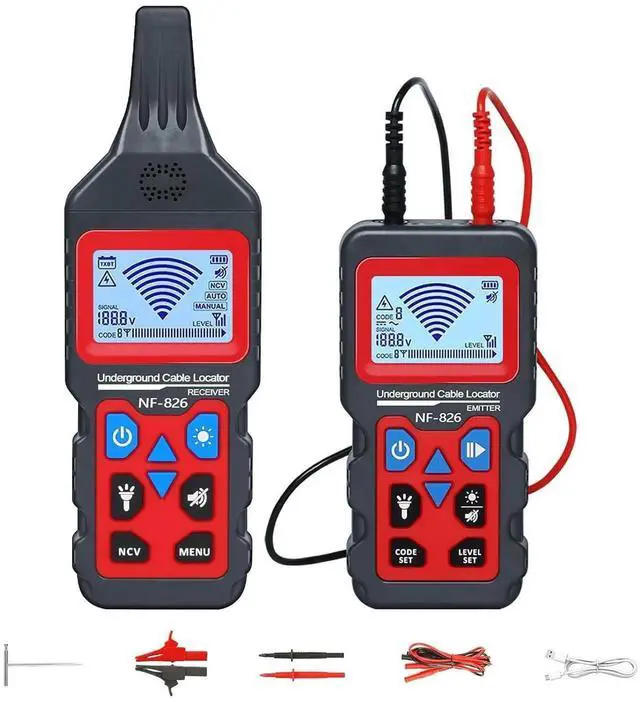

Underground Cable Locator, Cable Tester Wire Tracker, NF826 Underground Wire Locator for Dog Fence Cables, Test Short Circuit Breaker of Wall
- Functions: The underground cable locator is designed to detect cables, electrical lines buried in walls or underground, as well as fuses and current circuits. It can also detect interruptions and short-circuits in cables and wires. Note: The black cable needs to be connected to a ground plug for grounding when detecting a breakpoint. When testing multi-core cables, the other cores must be grounded together.

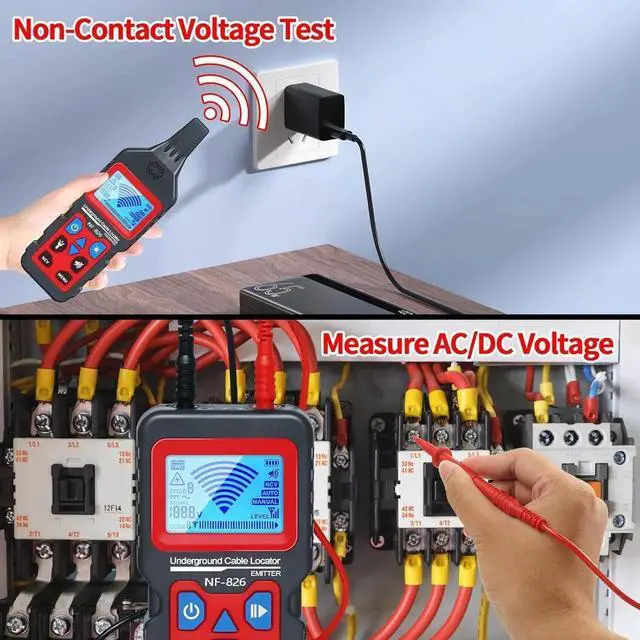

- Measurement: This underground wire locator features a built-in AC/DC voltmeter function, allowing for linear measurement of 12 to 400V AC/DC voltage. It has a wire tracer range of up to 3-4 feet in depth and 3000 feet in length. Note: the maximum test length and depth may vary depending on the soil type.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

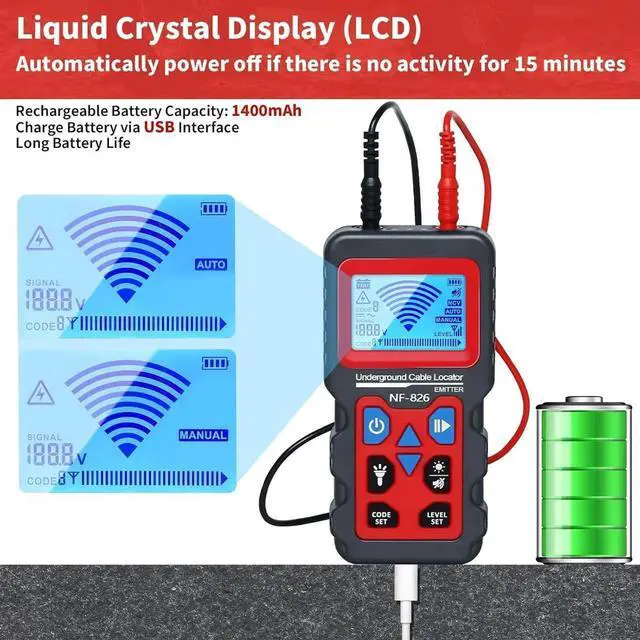

Self-Inspection: The transmitter includes a self-inspection function to detect its own working status, displaying it on the LCD screen for user reference. The LCD screen of the locator is equipped with backlight for use in low light conditions and a flashlight for working in darkness.

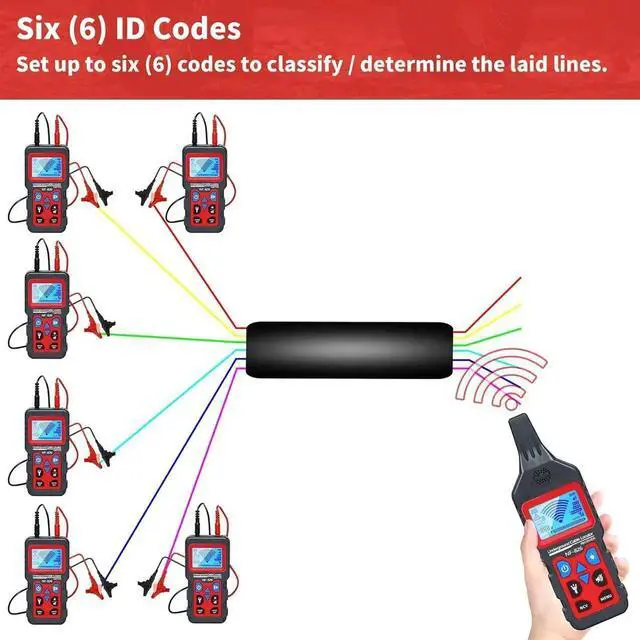

Display: Both the transmitter and receiver display preset transmitting power, transmitted codes, battery energy levels, mains voltage detected, AC/DC status of mains voltage detected, and warning symbols fomains voltage, Both units can operate in mute mode.
Auto&Manual Mode: The receiver sensitivity can be adjusted manually or automatically. During operation, you can adjust the sensitivity in real time according to the actual application scenario to meet your needs.
Wide Application: This underground cable locator is widely used in communication cable construction, power cable construction, and maintenance of communication cables, power supply lines, and electric heating lines. Most importantly, if you are testing multi-core cables, all but the target cable must be grounded.
1

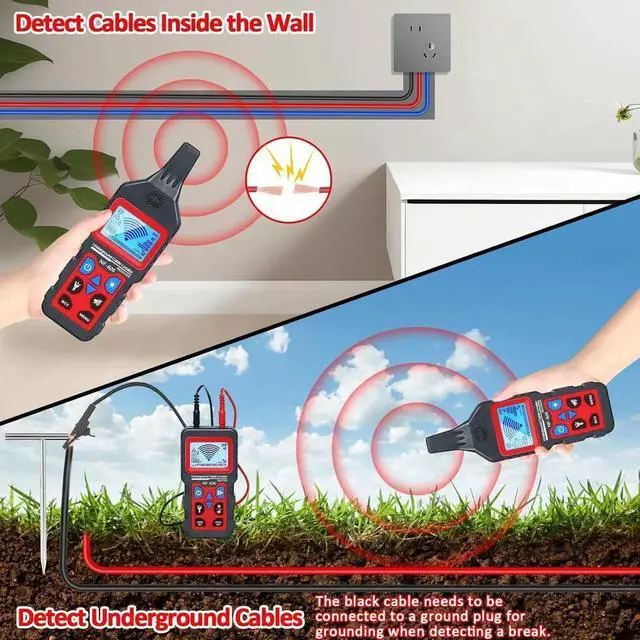

Cables Inside the Wall
2
Underground Cables
3
Pet Fence Cables
4
Construction Site Cables
Technical Parameters of Transmitter Output signal
125kHz
External voltage
DC 12-400V +/- 2.5 %
Identification range
AC 12-400V(50-60Hz) +/- 2.5 %
Display
LCD Screen 52*35mmTN screen with backlight
External voltage
Max. 400V AC/DC
Dielectric strength
CAT III 300V
Overvoltage type
2
Power supply
3.7V 1400 mAh Lithium battary
MIN curren
80mA
MAX curren
300mA
Fuse
0°C - 40 °C, with maximum relative humidity
In work
of 80% (non-condensation)
In storage
-20°C - 60°C, with maximum relative humidity
Altitude
80% (non-condensation) Max. 2000m
Dimensions (HxW*D)
156 x 80 x32 mm
Weight
235g with battary Technical Parameters of Receiver Depth of tracking
The depth of tracking depends on the material and specific applications
Single pole application
About 0-1m
Dual-pole application
About 0- 0.5 m
Single loop line
Up to 2.5 m
Grid voltage identification
About 0- 0.4 m
Display
LCD Screen 52*35mmTN screen with backlight
Power supply
3.7V 1400 mAh Lithium battary
MIN current
100mA
MAX current
300mA
In work
0°C - 40°C, with maximum relative humidity of 80% (non-condensation)
In storage
-20°C - +60°C, with maximum relative humidity of 80% (non-condensation)
Altitude
Max. 2000m
Dimensions (HxWxD)
226 x 73 x29 mm
Weight
235g with battary
