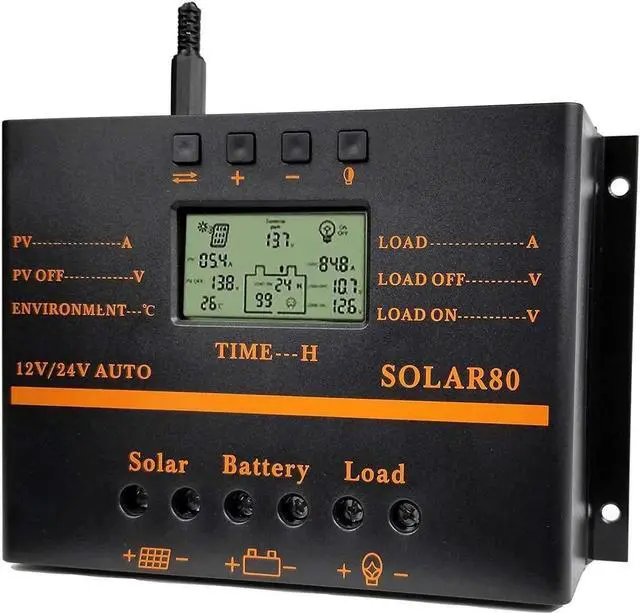

Solar Charge Controller 80A PWM 12V/24V 1920W with USB Output, Multi-Circuit Protection, ABS Housing, for Lighting System

Enhanced Heat Sink: High-Quality aluminum alloy Heat Sink, Super Efficient Heat Dissipation, the thickest Part can Reach to 0.12 In.

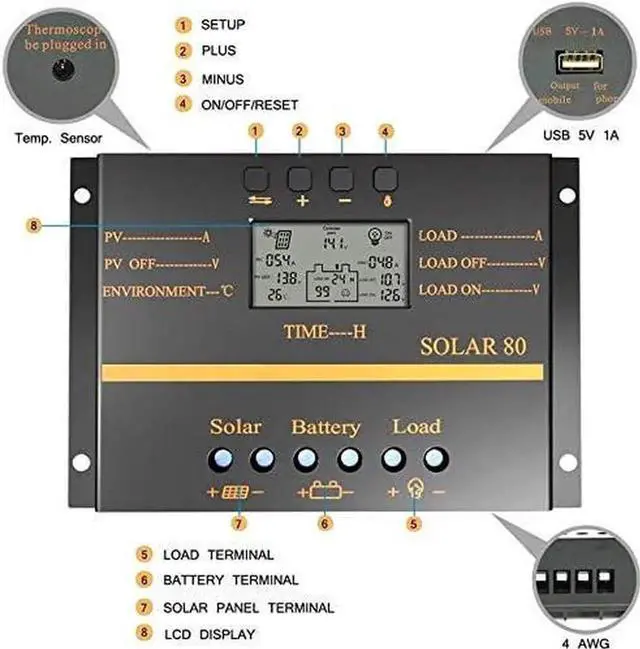

Simple Operation: 1, Simple & Easy Button Operation 2, Adjustable Charge-Discharge Parameter 4, Operation Mode of Load is SettablefalseThis controller has an efficient charging system and can handle high power input reach to 1920W, this controller equipped with industrial-grade STM 8 microprocessor to control the charge and discharge process. It has perfect and liable battery charge and discharge period management. The charge circuit is characterized by high efficiency and low consumption by controlling the MOSFET of the ultra-low internal resistance with PWM. This controller has multiple load control modes and adaptable to different industries. the housing of this controller is made of superior quality ABS material that is extra durable. USB output port also equipped with this controller for electrical devices charging.

User Manual is available for Download

Product Specification:

Charge Control Mode: PWM

Rated Current: 80A

Rated voltage: 12V/24V Automatic Identification

Max input Power: 960W (12V), 1920W (24V)

Installation Cable Area: 3# AWG (25mm2)

Maximum Voltage of solar panel: 48V

Float Voltage: 13.8V / 27.6V

Low Voltage Disconnection: 10.7V / 21.4V

Low Voltage Re-connection: 12.5V /25V

No load loss: <30mA

loop voltage drop: <200mV

Temperature compensation: -4mV/Cell/°C

Operating Temperature: -10~60

Storage temperature: -30~70

Humidity Requirement: 90

Dimension: 128 mm×188 mm×61mm

Mounting hole spacing: 98mm×178 mm --5

Net Weight: 720g

Package List:

1 x 80A Solar Charging Controller

1 x Temperature Sensor

1 x User Manual

- High Charging Ability: Large Power 80 amp solar charge controller, 12V/24V Auto Identification, 5V USB output, Max PV Array input Voltage/Power (Battery

Voltage): 24V/960W (12V), 48V/1920W (24V), Get Free Battery Monitor in the Package

- Intelligent High-complex Protection Technology: Short Circuit Protection, Overcharge Protection, Over-current Protection, Reverse Connection Protection

- ABS Material Shell Design: Anti-Fall & Durable Overall Design, Achieve the Longest Product Service Lifetime

- Enhanced Heat Sink: High-Quality aluminum alloy Heat Sink, Super Efficient Heat Dissipation, the thickest Part can Reach to 0.12 In.

Simple Operation: 1, Simple & Easy Button Operation 2, Adjustable Charge-Discharge Parameter 4, Operation Mode of Load is Settab
