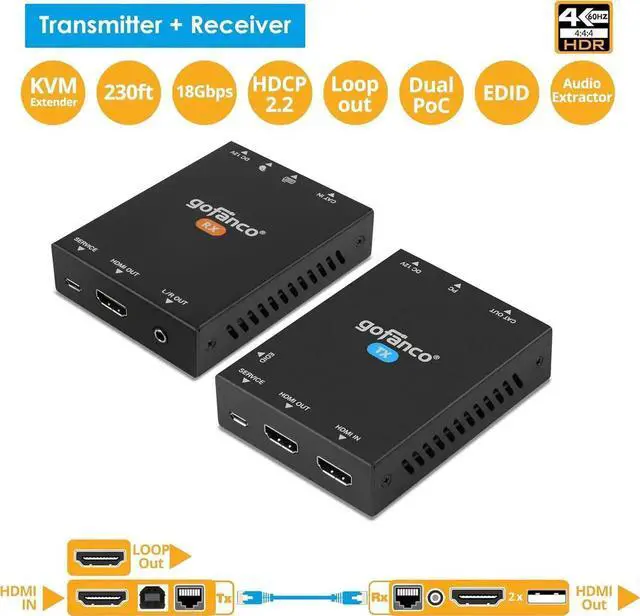

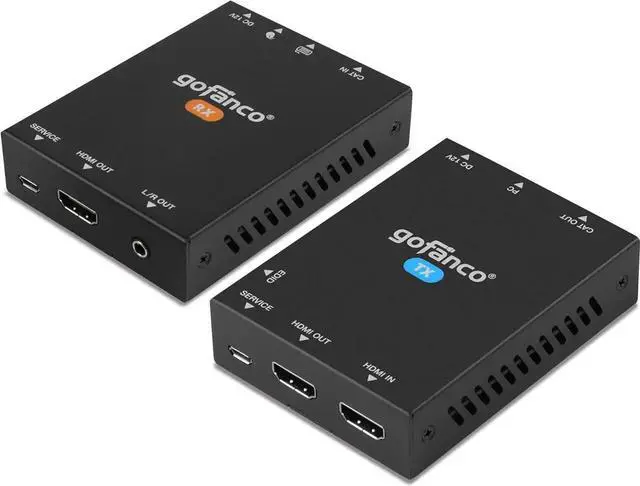

4K HDMI USB KVM Extender Over CAT6 / CAT7 Cable - Up to 230ft (70m), 4K@60Hz, HDCP 2.2, Dual PoC, EDID, USB Keyboard/Mouse, Near Zero Latency, HDMI Loopout, HDR, 7.1-ch Audio (KVMHD20Ext-LT)

ADVANCED FEATURES Bi-directional Power-over-Cable (PoC) allows one power supply connected to either the TX or RX to power both units, EDID management, and an additional HDMI output (loopout) on the Transmitter to connect to a local display

SIMPLE INSTALLATION No driver required; Surface mountable metal housing provides durability and minimizes EMI noise interference. FCC, CE & RoHS compliant. Our products are backed with a 1-year limited warranty and experienced tech support team in Silicon Valley. If you have any questions or concerns, visit our website or click on our name in the buy box and select "Ask a Question"

HDMI 2.0 b VIDEO

High resolution up to 4K @60Hz YUV 4:4: 4, 4K @30Hz, HDR/HDR10/HDR10+, Dolby Vision, HLG. Supports LPCM 2.0 / 2.1 / 5.1 / 6.1 / 7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-HD, DTS Audio, and analog (PCM 2.0 ) audio extraction. *Note:

ATMOS is NOT supported KVM EXTENDER

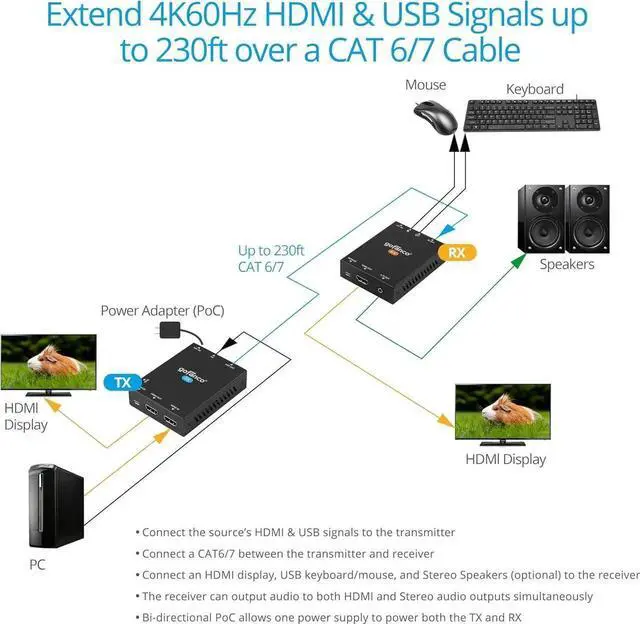

Extend USB Keyboard, Mouse, and HDMI video signals up to 230ft (70m) over CAT6/7 cable with

NEAR ZERO latency/delay. *Note:

Good quality CAT cables are essential in delivering quality content USB 1.1 KVM EXTENSION

Equipped with 2 USB ports on the Receiver (RX) to control your computer at a remote location using a USB keyboard and mouse; Bi-directional Power-over-Cable (PoC)

allows one power supply connected to either the TX or RX to power both units 1

KVM Function

2

Audio Extraction

3

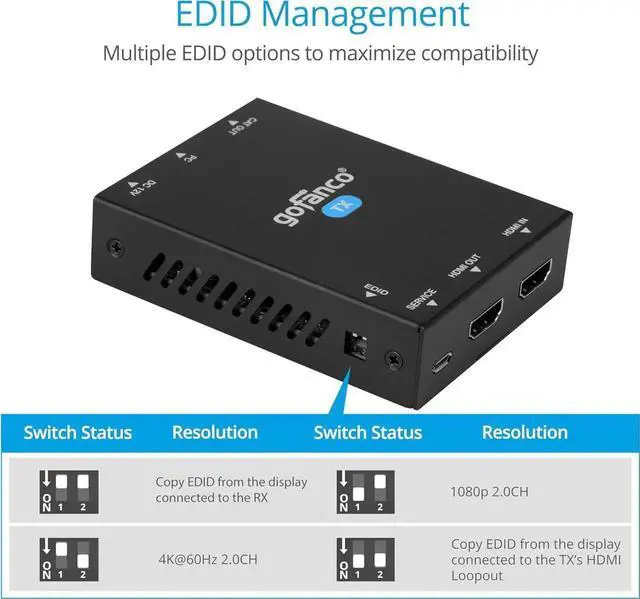

EDID Management

SpecificationsVideo resolution: Up 4K @60Hz

YUV 4:4: 4, Supports HDR/HDR10/HDR10+, Dolby Vision, HLG

Transmission range: Up to 230ft (70m) over CAT6/7

HDMI 2.0 b, HDCP 2.2

Audio formats: LPCM 2.0 / 2.1 / 5.1 / 6.1 / 7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-HD, DTS Audio, and analog audio extraction. *Note: ATMOS is NOT supported

Supports analog (PCM 2.0 ) audio extraction on the receiver (RX)

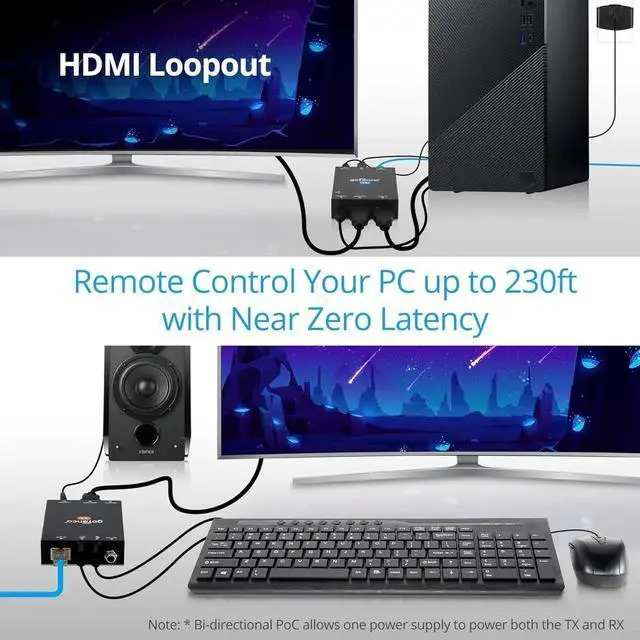

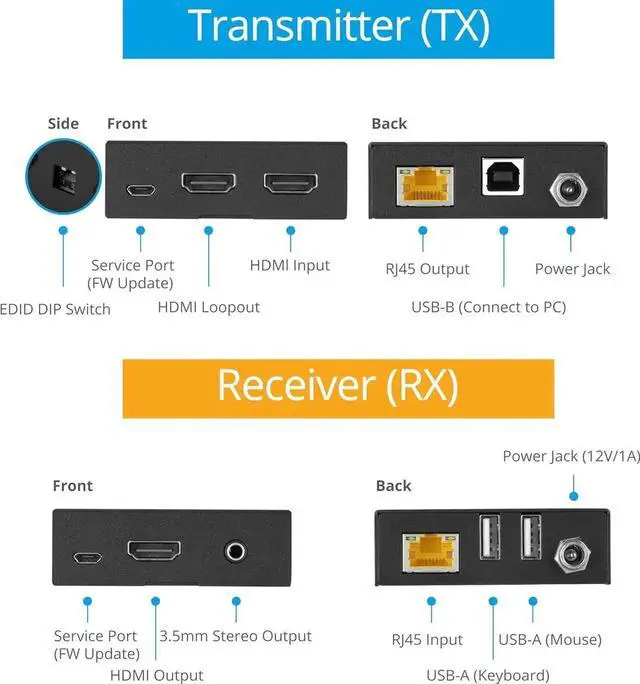

HDMI loopout on Transmitter (TX) to connect a local display

USB 1.1 for keyboard/mouse; EDID management

Important Notes:

1)A good quality CAT cable is essential in delivering quality content. CAT6/7 is recommended over CAT5e; 2)Use a straight-through (patch) Ethernet cable and

NOT crossover: 3)This kit is point to point and comes with 1 Transmitter and 1 Receiver. Its not meant to work through routers or network switches SIMPLE INSTALLATION

No driver required; Surface mountable metal housing provides durability and minimizes EMI noise interference
