$247.11
Meet Your Seller

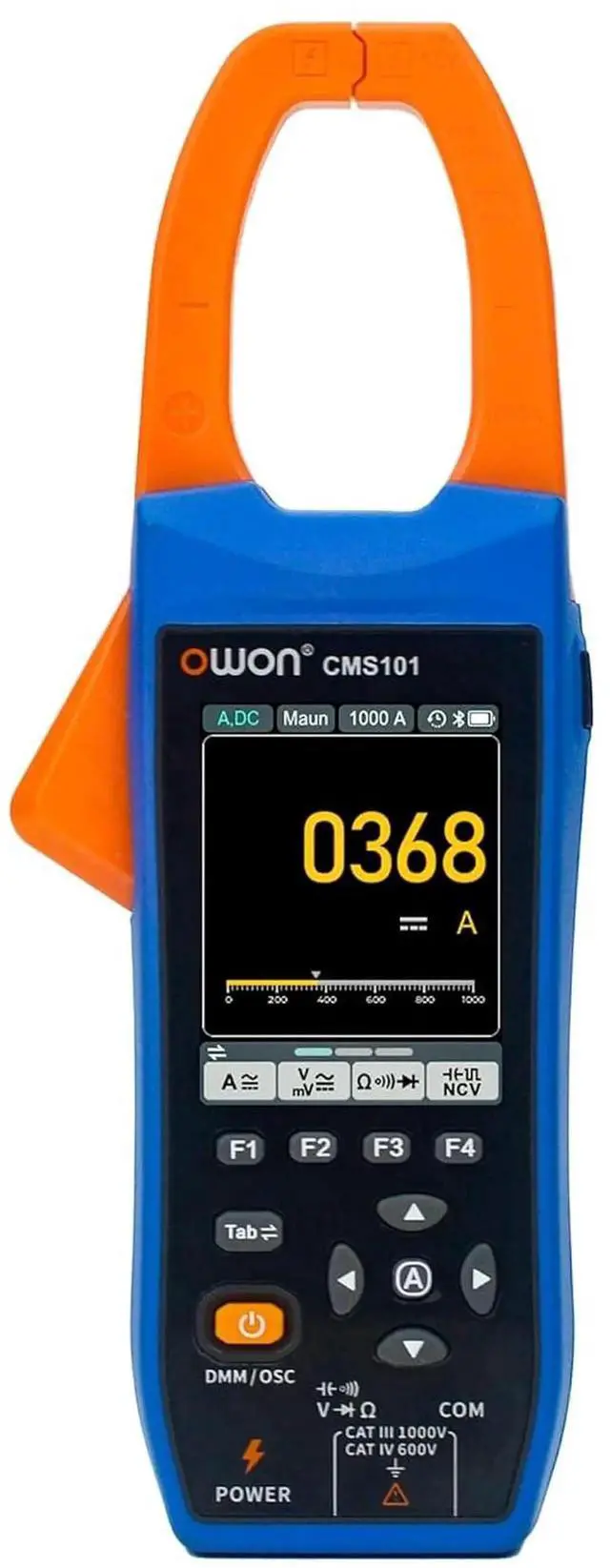

Clamp Meter 1000V AC/DC Voltage Tester 1000A Current Test with 1MHz Oscilloscope Multimeter 3 in 1 Functions Clamp Meter with 2.8-inch IPS LCD Display ( CMS101)
- 3 in 1 Functions: Built-in 1000A DC/AC clamp meter, 1MHz oscilloscope and record functions with Bluetooth, meet your demand; 2.8 inch IPS screen, view clearer; Switch DMM or OSC mode; Switch dual theme display up to your demand
- Clamp Meter: 1000V DC/AC Voltage, 1000A AC/DC Current, 1000A Inrush Current; Support NCV, 100.00M Resistance; 20.00mF Capacitance; 20.000MHz Frequency; 0.1%-99.99% Duty Cycle; 3.0000V Diode; 0~200.0 On-Off
- Oscilloscope: 1MHz Analog Bandwidth (Voltage), 1KHz Analog Bandwidth (Current); 1CH; 5.0MSa/S Sample Rate; 10M input impedance, 1000V MAX input voltage, 1000A MAX sample current; RmsPeriod, FreqMaxMinPK-PKAvg Measurement value; Auto trigger mode; Trigger type: rise, fall
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Record Function: Support Bluetooth connect your phone and view the date, support perform remote control, display data charts and store the measurement data in CSV format, display in a graph tovisualize trends
Applications: AC/DC clamp meter is a versatile device for more usage; Use in Electrical Troubleshooting to identify overloaded circuits, faulty wiring, or inefficient equipment; Use in Motor Maintenance to monitor the current draw of motors during operation, indicate issues like bearing problems, winding faults, or improper loading, allowing for timely maintenance; Clamp meters are used to measure current consumption of individual equipment or entire facilities, OR troubleshoot and maintain electrical components
AC/DC Clamp Meter + Recorder Function + Oscilloscope Function 3 in 13 IN 1
CURRENT CLAMP
AC/DC Voltage: 0~1000VAC/DC Current: 0~1000A
Inrush Current: 0~1000AResistance: 0~ 100.00M
Capacitance: 0~ 20.00 mFFrequency: 0~ 20.000MH z
Duty Cycle: 0.1 %~ 99.9 %Diode: 3.0000V
On-Off: 0~200 Support NCV
OSCILLOSCOPE
1MHz Analog Bandwidth (Voltage), 1KHz Analog Bandwidth (Current)
1CH; 5.0MS a/S Sample Rate
RmsPeriod, FreqMaxMinPK-PKAvg Measurement value; Auto trigger mode;
Trigger type: rise, fall
RECORDER DATE
Connect to the instrument via Bluetooth, automatically record measurement values, and display them in a graph tovisualize trends
The recorded data (CSV format) can be shared with PC for analysis
3 IN 1 AC/DC Clamp Meter + Recorder Function + Oscilloscope function 3 in 120, 000 count true RMS auto-ranging clamp meter

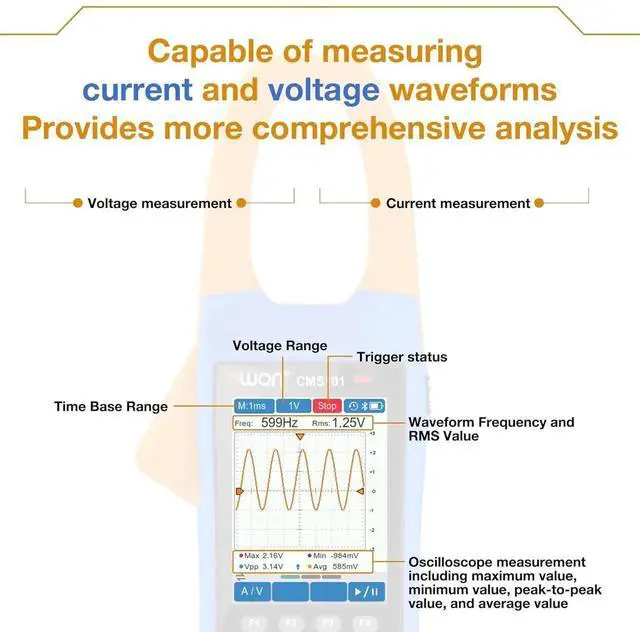

OscilloscopeCapable of measuring both current and voltage waveforms simultaneously
Recorder Function: View, compare, analyze, and store measurement data via i-meter (app)
Inrush Current Measurement Function
Support for Android/IOS dual systems
Full touch-key operation enables quick switching with one hand

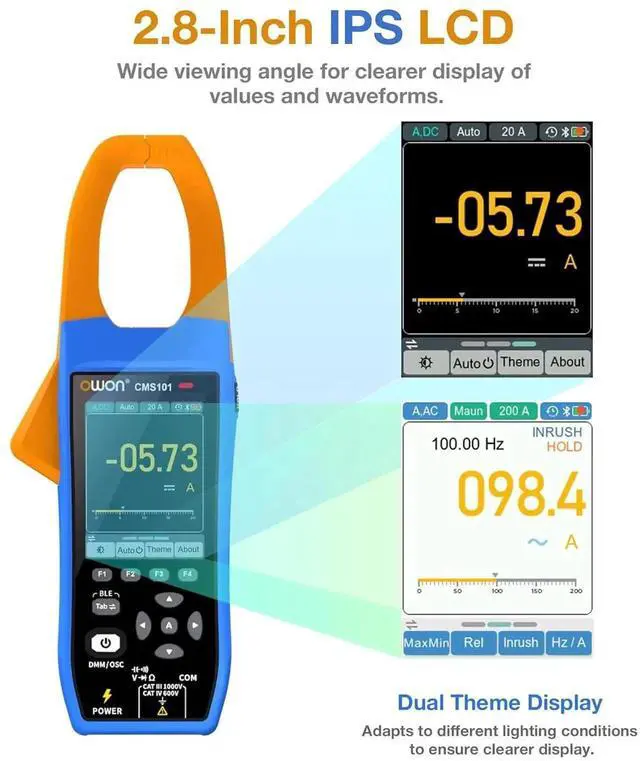

2.8 -inch IPS LCD display with wide viewing range makes the values and waveforms clearer
Dual theme display adapts to different light environments
NCV function
18650 lithium battery meeting the needs of extended operations
CLAMP METERMULTI-FUNCTIONS

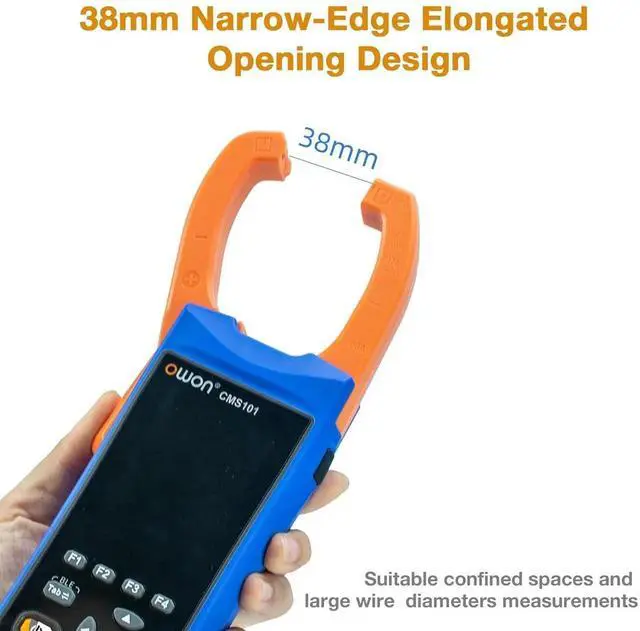

38mm narrow-edge elongatedopening design
