Dual Monitor KVM Switch 2 Port 8K@60Hz 4K@144Hz HDMI+DP USB 3.0 Switch Extended Display 2 Monitors 2 Computers with USB 3.0 Cables Wired Controller

Dual Monitor KVM Switches with 4 USB 3.0 PortsDual monitor kvm switch with 4 USB 3.0 ports which can recognize keyboard, mouse, printer, scaner and other USB devices. USB 3.0 offers data transfer speeds of up to 5Gbps, while USB 2.0 offers data transfer speeds of only 480Mbps.

Note: If the input USB 3.0 ports are not connected to the KVM or connected incorrectly, the output USB device will not be recognized.

2 Switching Mode&LED IndicatorThis KVM Switch with 2 swtich methdos that are pressing the button on the panel and the wired controllerincluded). The two color indicator light will show which computer is the active computer.

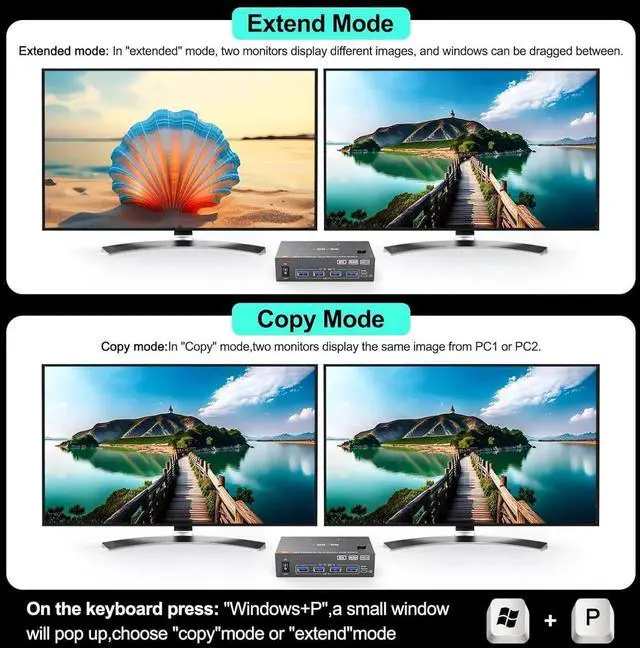

Extended Mode&Copy ModeDual display KVM switches require HDMI+DP connections per computer, and for computers with discrete and integrated graphics cards require the HDMI and DP port to be belong of the discrete graphics card.

Note: MAC M1/M2 only supports one external screen, no multi-screen output. If using the MST multi-screen docking station, the computer CPU requires support for 11th generation.

Wide Compatibility and Easy to UseThis dual monitor KVM switch is driver-free, plug and play. It is required that each connected computer hhave HDMI and DP port, but there may be many computers, especially laptops, which may not have HDMI and DP port, then an adapter is required, such as USB-C to HDMI, USB-C to DP.

Power SwitchWhen you dont need to use KVM, you only need one-key switch to avoid re-plugging and saving power.

Packing list1*Dual Monitor USB 3.0 HDMI + DP KVM Switch+2*USB 3.0 Cable( 1.5 m)+1*Wired Controller+1*User Manual+1*DC12V Power Adapter.

8K@60Hz/4K@144Hz DualMonitor KVM for 2 Computer

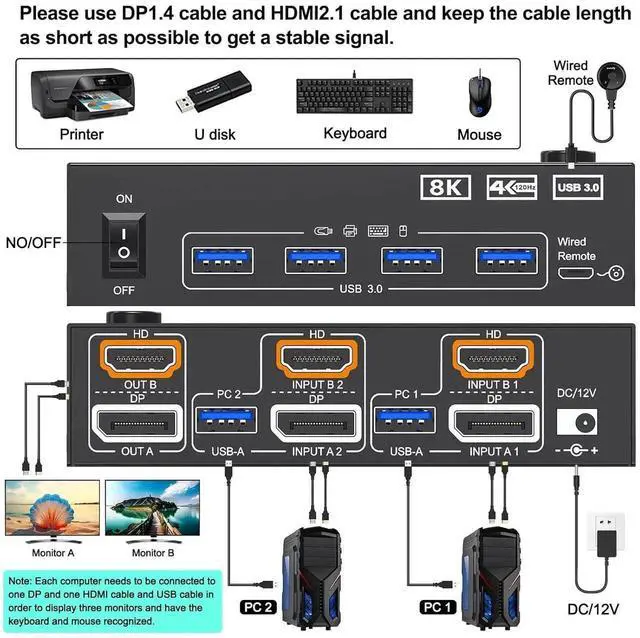

Dual monitor kvm switchPlease connect the devices correctly to make the switch work properly.

Each computer needs to connect DP, HDMI and USB cables to the machine.

Please note: Please use DP 1.4 and HDMI 2.1 cables, and the shorter the cable length, the better.

8K KVM switch 2 monitorsThe resolution and fresh rate of dual monitor KVM switch supports up to 8K@60Hz/4K@144Hz.

BUT PLEASE NOTE THAT: HDMI part supports 8K@60Hz4K@120Hz, and backward compatible. Displayport part support 8K@30Hz, 4K@144Hz and backward compatible.

Warming: Please use HDMI 2.1 and DP 1.4 cables, if the set distance allows, the length of cabels more short more better.

2 PC share 2 Monitor and 4 USB 3.0 Devices

2 Display Model for the Dual Monitors KVM

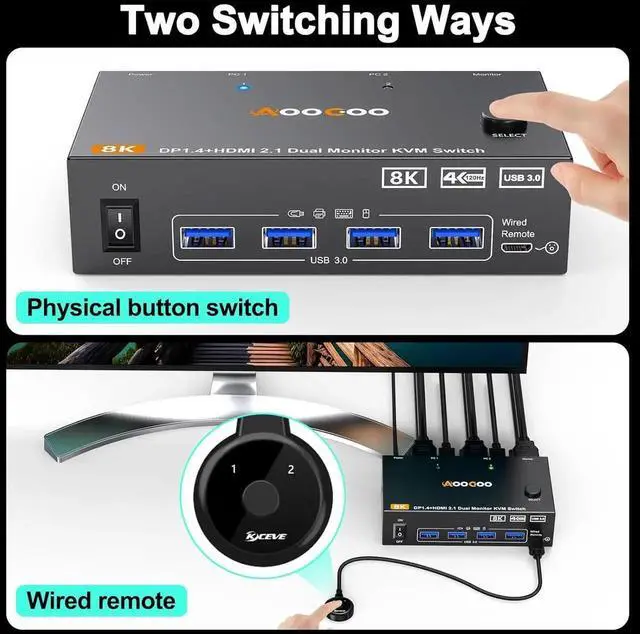

Two switching MethodTwo switching methods: control panel button + 4.92 ft wired controller (included)

12V Power PortA 12V power adapter is included in the package.

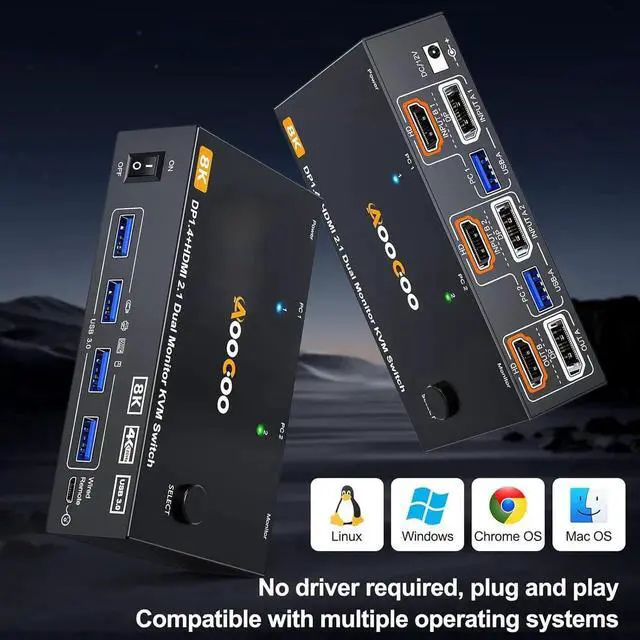

Plug and PlayApplicable to various devices, plug and play, no driver required

Wide ApplicationsThis KVM switch can be used in a variety of scenarios to facilitate your work and life

Packaging

Details

Some details about Dual KVM

More Recommendations and Options Triple Monitor KVM for 2 PCs

Dual Monitor KVM for 2 PCs

Triple Monitor KVM for 2 PCs

Triple Monitor KVM for 2 PCs

2 PC(2 DP+HDMI) share 3 Monitor(HDMI+HDMI+DP) and 4 USB 3.0 Devices

Dual Monitor HDMI KVM for 2PCs

2 PC(HDMI+HDMI) share 2 Monitor (HDMI+HDMI) and 4 USB 3.0 Devices

Triple Monitor KVM for 2 PCs

2 PC(2 DP+HDMI) share 3 Monitor(HDMI+DP+DP) and 4 USB 3.0 Devices

Resolution

8K@60Hz/4K@144Hz

Resolution

8K@60Hz/4K@120Hz

Resolution

8K@60Hz/4K@144Hz
