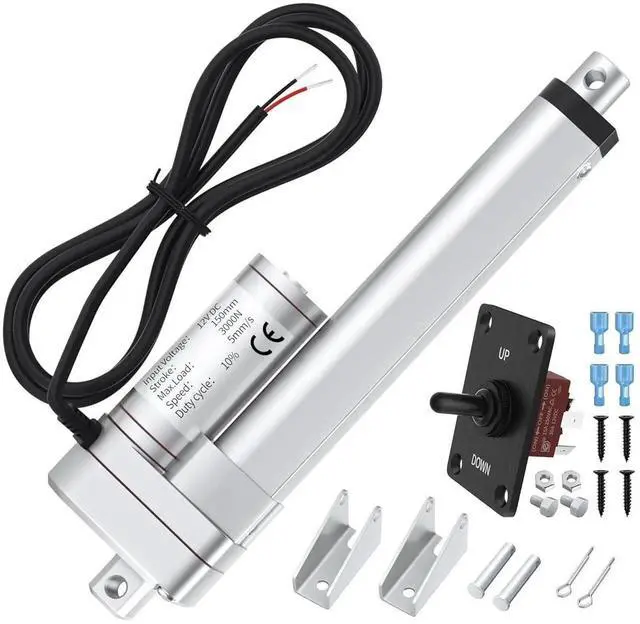

Linear Actuator 12V with Controller 6" 3000N/660lbs Stroke Electric Actuator 5mm/s Motion Actuator Heavy Duty with Reverse Polarity Switch Controller
- 3000N Heavy Duty: The 12V linear actuator is equipped with a strong 3000N motor. With 5.9 inch (150mm) stroke length, 5 mm/s travel speed, this 12 volt actuator could enable much bigger thrust force tasks compared to other 1500N actuators.

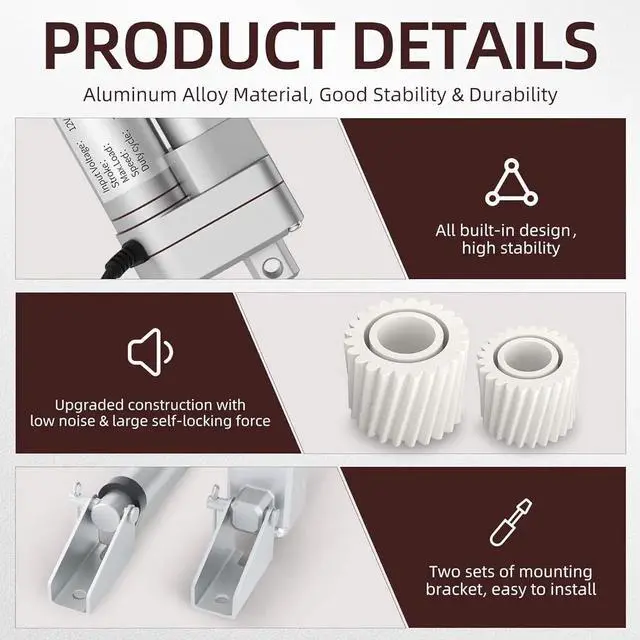

- Low Noise: The electric actuator 12V is made of aluminum alloy material. The internal gear of the actuator motor is upgraded to high-strength engineering plastic worm gear with low noise (50dB sound), large self-locking force, and strong durability.

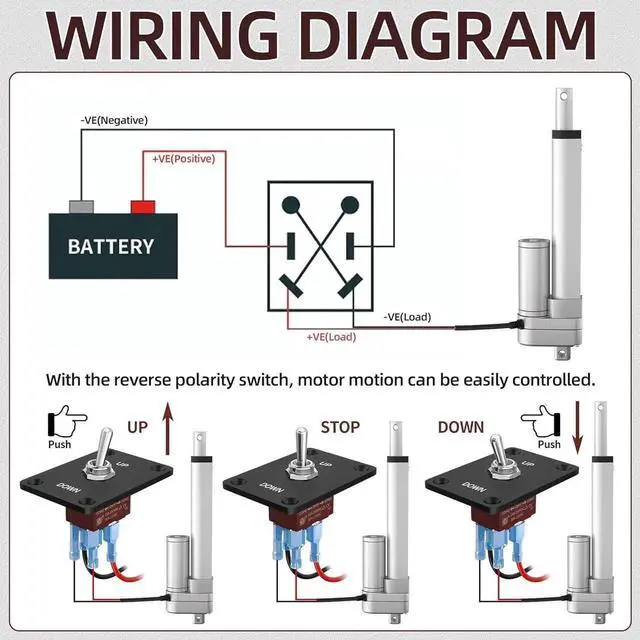

- Flexible Motion: The linear actuators kit comes with 3 position & momentary reverse polarity toggle switch, and push the switch to the"UP" or "DOWN", realizing the flexible retract & extend of the liner actuator. Furthermore, as the switch is released, the 12V linear actuator will be locked at your wanted position. Therefore, the motion control can be easily and safely implemented to meet your specific needs
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Wide Application: The electric actuator could perform tasks much efficiently and safely compared to manual operation. All in all, this actuator 12V could widely applied to window opener, electric sofa, electric wheelchair, electric nursing bed, automatic door opener, industrial electric lifting system, etc
With Controller: The package of this electric actuator 12V will also includes a polarity reversing switch to meet special need. In addition, the switch will also be equiped with all necessary parts for use, such as mounting panel to adapt different hole size, waterproof cap to make it suitable for outdoor use, terminal connectors to make it convenient for connecting

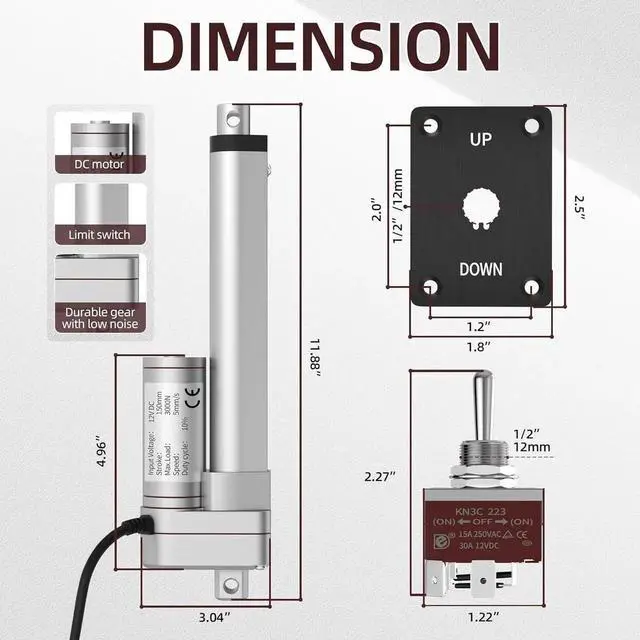

Specification: stroke
length: 6 inch (150mm); travel speed: 0.2
in/sec(5mm/sec); retracted length: 260mm(10")
; extended length: 410mm(16")
; current draw: 4 amps.
