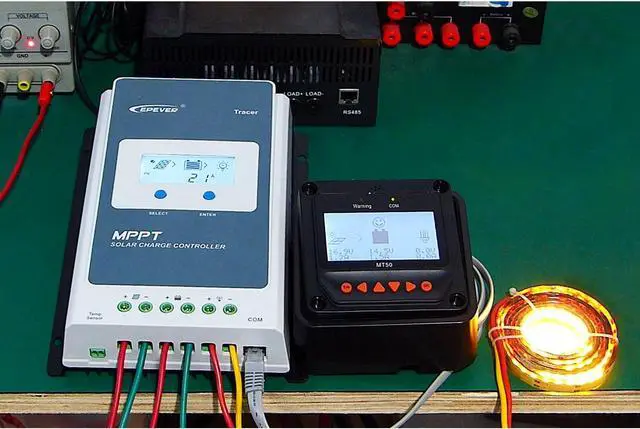

MPPT Solar Charge Controller 30A 12V 24V Auto Tracer3210AN + Remote Meter MT50 + RTS Solar Panel Regulator Common Negative Ground for Lead-Acid LiFePO4 Lithium Battery (30A + MT50+RTS)

LCD panel backlight display design, dynamically displaying tools operating data and working condition.

Multiple load control modes: manual control, light ON/OFF, light On+Timer and test mode. With RS-485 communication bus interface and Modbus communication protocol, Monitor and set the parameters via remote meter MT50 or WiFi or BLE adapter via APP (Solar Guardian) or PC softwarefalseReal-time energy statistics function, Independent voltage regulation constant voltage output function, Multiple load work modes. Battery temperature compensation function(only for Lead-acid battery). Widely used for various applications, e. g. solar RV, household system and industrial field monitoring etcfalse

Tracer-AN series mppt solar charge controller is new upgrade version, Better funcations and advanced technology.

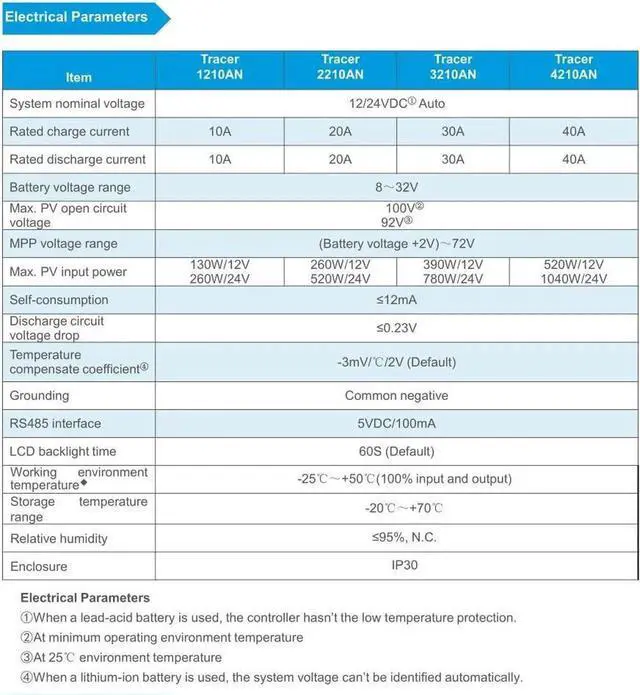

Rated charge current: 30A

System nominal voltage: 12V/24VDC Auto identifying

Battery voltage range: 8V~32V

Max.

PV open circuit voltage: 100VDC

Max.

PV input power: 390 W/12V, 780W/24V

Added Features:

Blacklight LCD Display

Common Negative Ground

Support lithium Battery: LiFePO4, Li (NiCoMn) O2

More Safety Protection

Protection function:

PV Over Current/power; PV Short Circuit; PV Reverse Polarity; Night Reverse Charging; Battery Reverse Polarity; Battery Over Voltage; Battery Over Discharge; Battery Overheating, Controller Overheating; Lithium Battery Low Temperature; Load Short Circuit; Load Overload; TVS High Voltage Transients

Automatic identify the controller, and display relevant parameter data

Large-screen informative LCD displays all the operating data and system working status

Simple and convenient operation

Real-time alarm of failure information

Longer communication distance based on RS485

Diversified load control modes: Manual Control, Light ON/OFF, Light ON+ Timer, Time Control

Battery type selection: Gel, sealed, flooded and User (programable)

Programmable parameters

Energy statistics display function

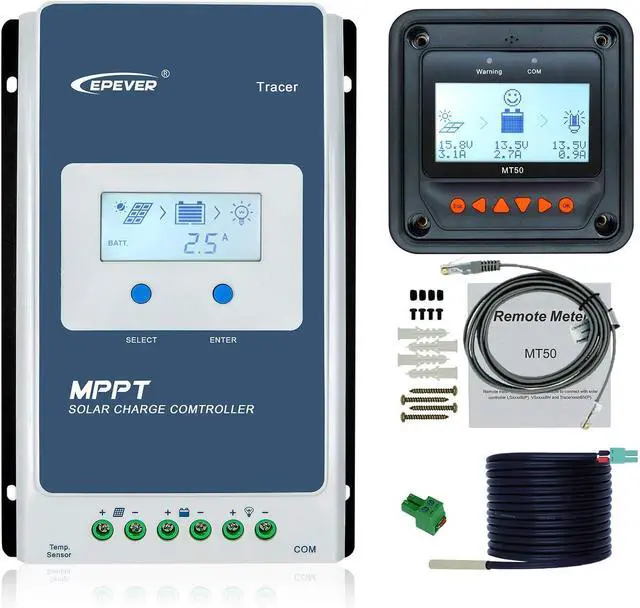

1 x 30A MPPT Solar Charge Controller

1x Temp sensor for controller ( RT-MF58R47K 3.81A )

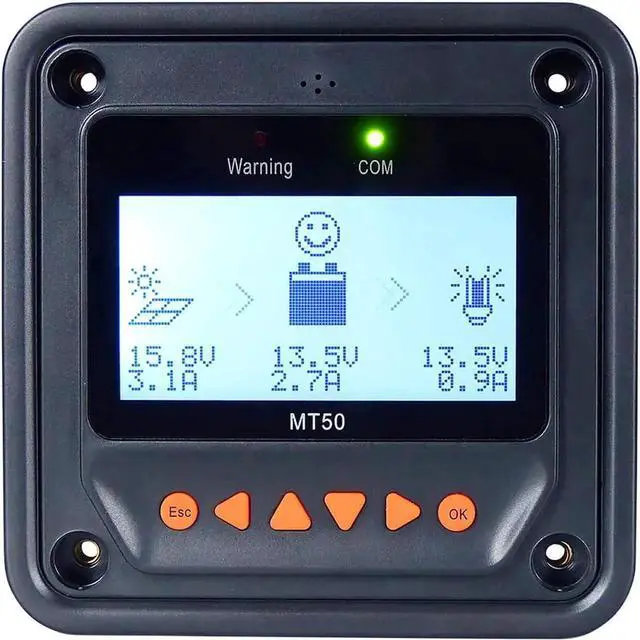

1 x MT50 Remote Meter

1x Temp sensor cable for battery (RTS300R47K 3.81A )

2 x User Manual (English)

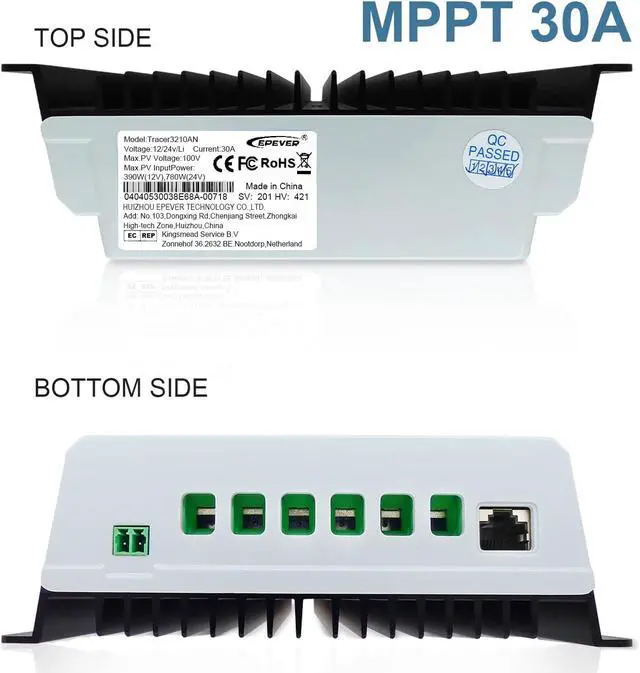

- EPEVER MPPT charge controller 30Amp Tracer3210AN + Remote Meter MT50 + Temp sensor cable RTS300R47K 3.81A. 12V/24V Auto identifying system voltage, Max. PV (Voc) 100V, Common Negative Grounding, Solar Panels Max input power 390W Charging for 12V battery system or 780W Charging for 24V battery system

- High MPPT tracking efficiency no less than 99.5 %, Maximum charge conversion efficiency as high as 98%. Ultra-fast tracking speed and guaranteed tracking efficiency, Accurately recognizing and tracking of multiple power points. Wide MPP operating voltage range

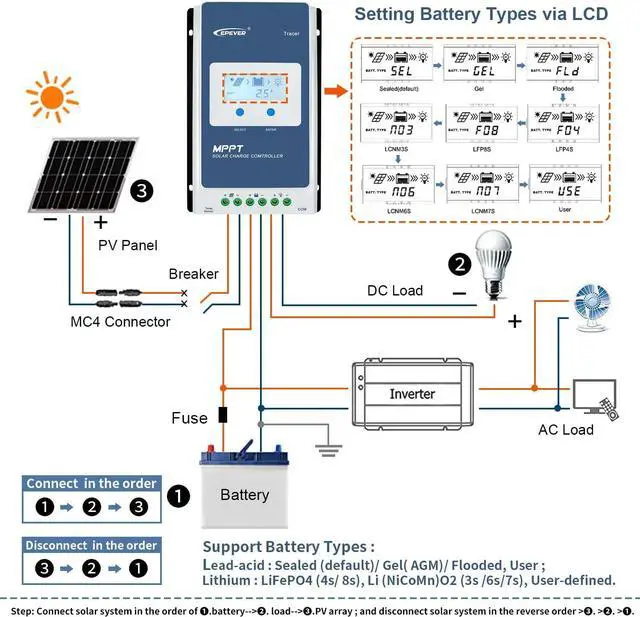

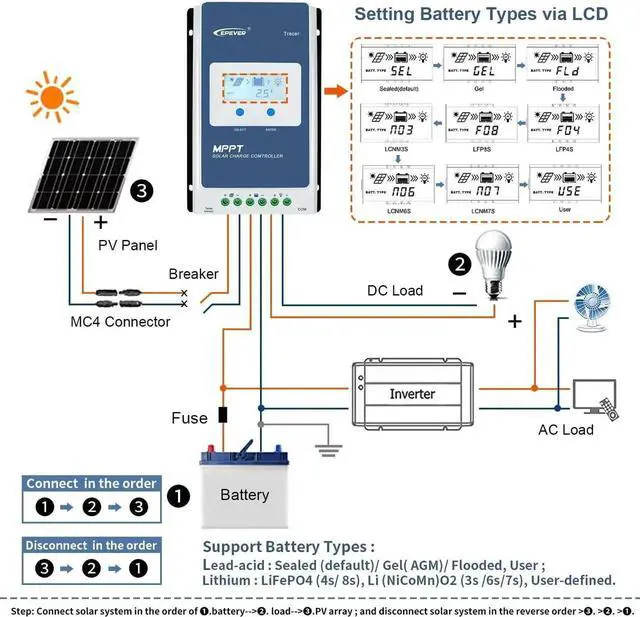

- Upgraded version MPPT Controller suitable for Lead-acid: Sealed, Gel (AGM), Flooded;

Lithium: LiFePO4 (4s/12V; 8s/24V), Li (NiCoMn) O2 (3s/12V; 6s/24V) and User-defined; User mode allow you set battery charging parameters

- LCD panel backlight display design, dynamically displaying tools operating data and working condition.

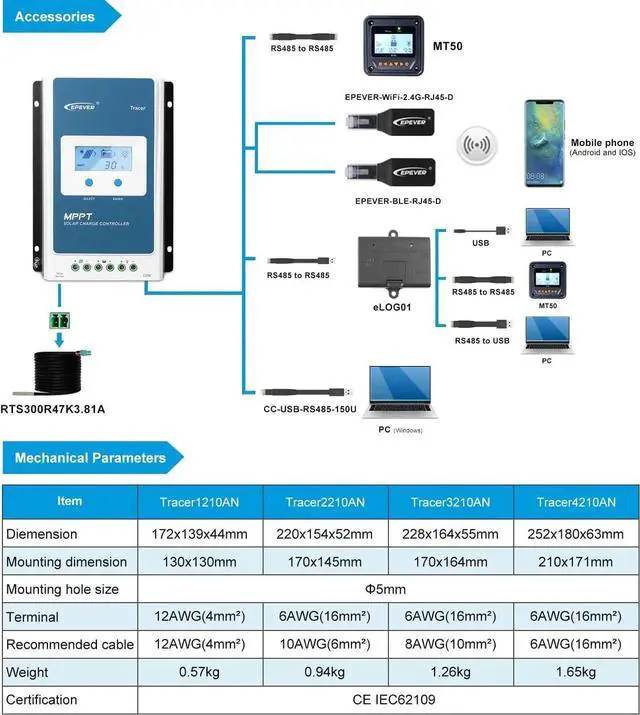

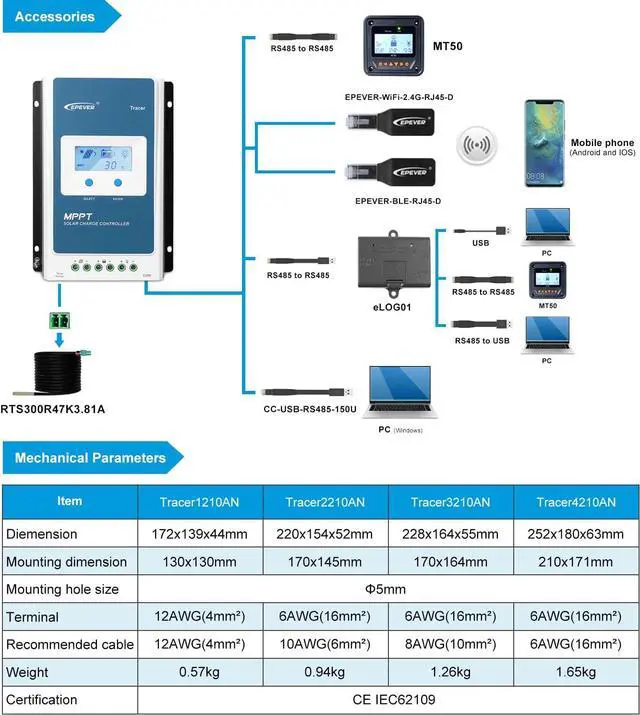

Multiple load control modes: manual control, light ON/OFF, light On+Timer and test mode. With RS-485 communication bus interface and Modbus communication protocol, Monitor and set the parameters via remote meter MT50 or WiFi or BLE adapter via APP (Solar Guardian) or PC software

- Real-time energy statistics function, Independent voltage regulation constant voltage output function, Multiple load work modes. Battery temperature compensation function(only for Lead-acid battery). Widely used for various applications, e. g. solar RV, household system and industrial field monitoring e
