CCTV Tester Monitor Auto HD Coaxial Camera Tester 4K 8MP TVI/CVI/AHD/CVBS Video Monitor 5 inch TFT-LCD Screen Support Cable Tester, HD VGA Input PTZ Control RS485 OSD Menu DC12V Power Output

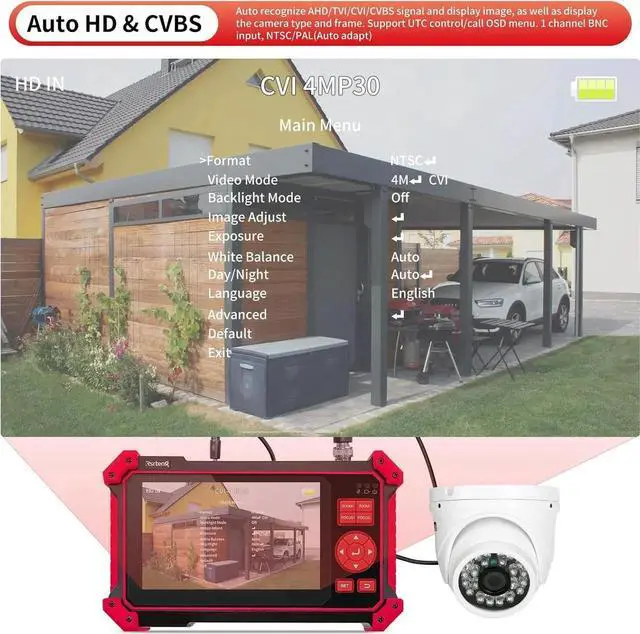

- Coaxial TVI/AHD/CVI CCTV Camera TestAutomatically recognize up to 4K 8MP(3840x2160P) TVI/AHD/CVI coaxial camera test, support UTC control and call OSD menu. Support CVBS analog camera test, 1 channel BNC input, NTSC/PAL (Auto adapt). NOTE:THIS TESTER DOESNT SUPPORT IP NETWORK CAMERA TESTER.
- Auto HD CCTV tester monitor & PTZ RS485 Auto HD app, auto recognize HD coax camera type and resolution. UTC control and call OSD menu. DC12V/1A power output, which can provide temporary power to the camera. Support control the PTZ, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols.

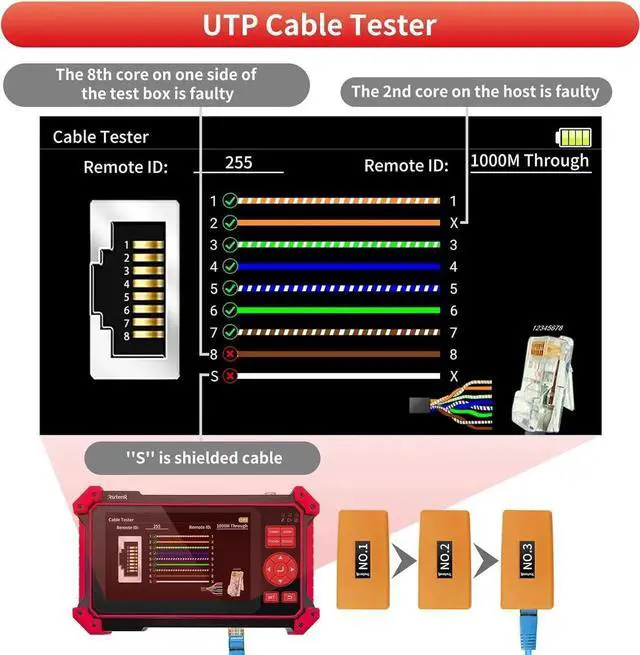

- UTP Cable TesterCCTV camera tester built-in cable tester app, which can Test the RJ45 network cable connection status and displays it on the screen. Tests cable wiring sequence, pass-through(connectivity state), displays remote kit number. If you need more remote kits, you can find them in the shop. Also support length measurement.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

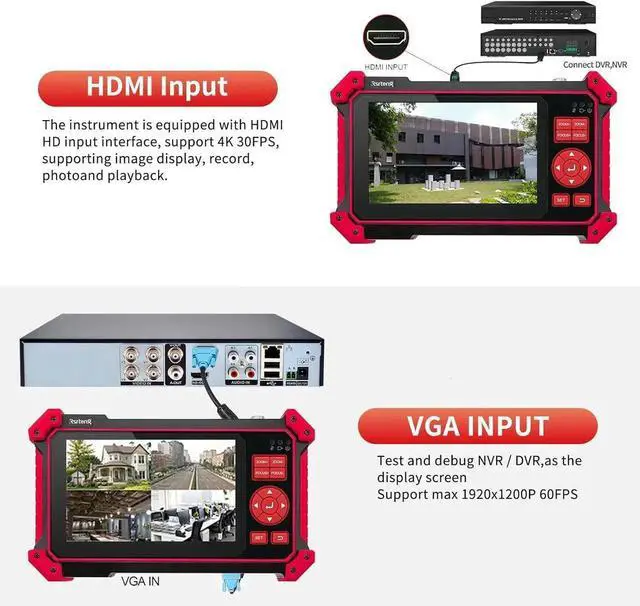

VGA input & HD input1 channel HD signal input and 1 channel VGA vedio signal input, HD input support max 4K 30FPS. VGA support max 1920×1200P 60FPS. Tester will as a display. Tester Dimension/Net weight 7.2 x 4.3 x 1.6 inch/ 0.4 kg( 0.88 lbs).
Audio input & Battery5 inch TFT-LCD screen, 800 * 480 resolution. 1 channel audio input, test the audio input from pickup devices. 5V/2A power input. LED light can work in dark environments. We tested every cctv camera tester before we sent it to the warehouse, to ensure that you will not receive defective products.

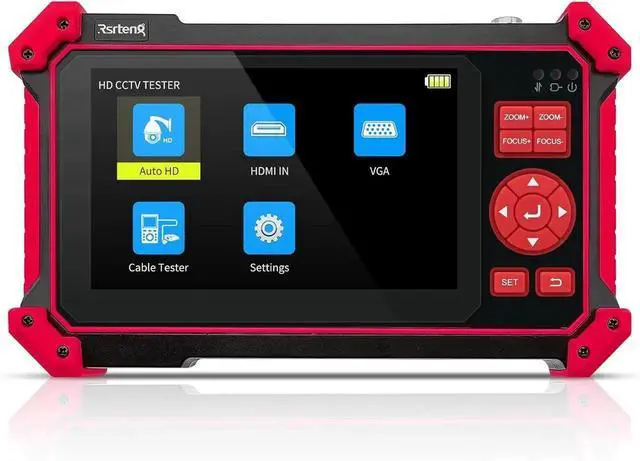

Auto HD TVI/CVI/AHD/CVBS Coaxial Camera Tester 5 inch TFT-LCD screen HD CCTV tester is designed for maintenance and installation of HD coaxial cameras. Easy to carry.
CCTV system installation and maintenance
TVI CVI AHD CVBS camera testing
UTC control Call OSD memu

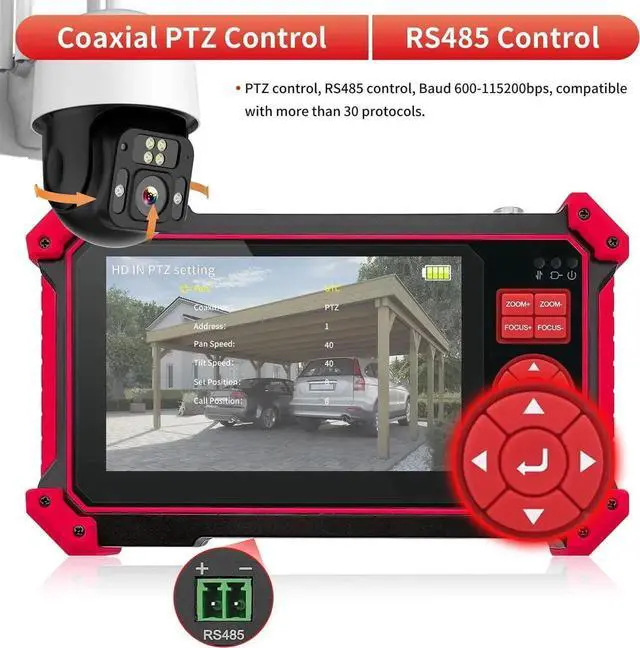

PTZ controller RS485 control
Cable Tester
HDMI input and VGA input

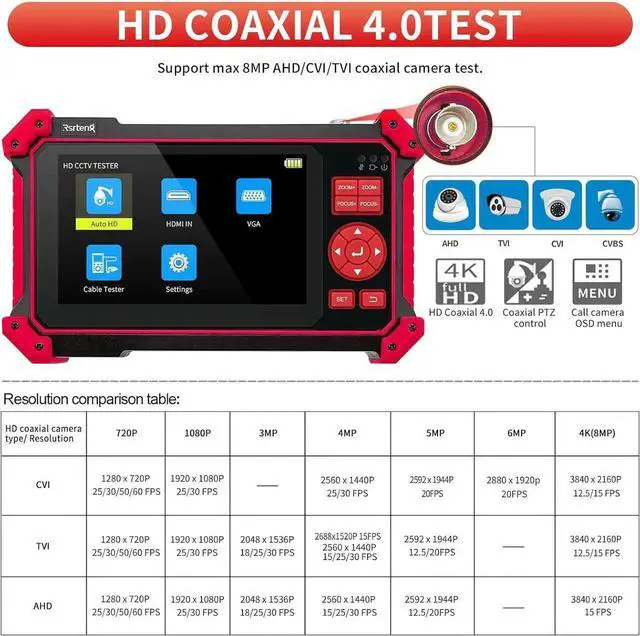

HD code stream coaxial monitoring support max8MP TVI/AHD/CVI/camera test, 3840 x 2160P, support UTC control and callOSD menu.
CVI coaxial camera test:
· 720P 1280 x 720P 25/30/50/60 FPS, · 1080P 1920 x 1080P 25/30 FPS, ·4MP 2560 x 1440P 25/30 FPS, · 5MP 2592x 1944P 20FPS, · 6MP 2880 x 1920P20FPS, ·4K (8MP) 3840 x2160P 12.5 /15 FPS
TVI coaxial camera test:
· 720P 1280 x 720P 25/30/50/60 FPS, · 1080P 1920 x 1080P 25/30 FPS, ·3MP 2048 x 1536P 18/25/30 FPS, · 4MP 2688x1520P 15FPS2560 x 1440P15/25/30 FPS, · 5MP 2592x 1944P 12.5 /20FPS, · 4K (8MP) 3840 x2160P 12.5 /15 FPS
AHD coaxial camera test:
· 720P 1280 x 720P 25/30/50/60 FPS, · 1080P 1920 x 1080P 25/30 FPS, ·3MP 2048 x 1536P 18/25/30 FPS, · 4MP 2560 x 1440P 15/25/30 FPS, · 5MP2592x 1944P 12.5 /20FPS, ·4K (8MP) 3840 x2160P 15 FPS
CVBS analog camera test:
1 channel BNC input, NTSC/PAL (Auto adapt).
Application PortDC 12V/1A, supply temporarily power for the camera.
DC5V 2A power input.
Universal RS485 interface, you can easily use it to control cameras and other devices with RS485 interface.
