8pcs DMX512 DMX Dfi DJ 2.4G 7 Charging Wireless Receiver Built-in Battery & 1 Transmitter LED Lighting Control for LED Stage Par Party Light

DMX512 wireless transmitter transmits standard DMX512 protocol data (generated by console) by wireless way. falseMetal Black Shell. 7 groups ID code settable, user can use 7 groups individual wireless net without any interfere each other in the same place. false1. 2.4G wireless DMX512 receiver

2. 126 channels jumping frequency automaticallyhigh anti-jammingability. to ensure works reliability

3.

Material: zinc alloy + plastic

4.

Input voltage: 5VDC 500mA MIN

5.

Communication distance: 400M (visible distance)

6.

Work frequency section: 2.4G ISM, 126 channels frequency section

7. 7 groups ID code settableuser can use 7 groups individual wireless net without any interfere.

8.

1. Power on DMX512 wireless received boardfirst and then following to power up the transmitted board.

2. Press Key button to setsame ID value of transmitted board and received board. Please use different IDvalue if you need use more than 1 group wireless universals at same time insame place.

3. The red LED flashes when transmittertransmits DMX data by no interfered frequency section, then receiver changescommunicated frequency section. Green LED flashes til received corrected sameID value, LED flashes faster once DMX data faster.

4. Communication was establishedcorrectly.

1. Please use the original chargerDC 5V 500mA min output. need about 2 hours to fully charge the batterythe fully charged battery can lasts about 8 hours of workand users can also use the product while charging.

Before using the product, please read themanual carefully. If you face any problems, please feel free to contact us.

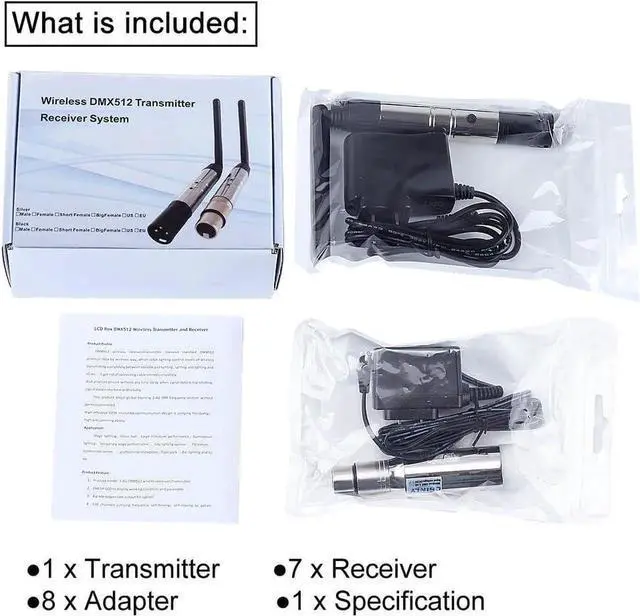

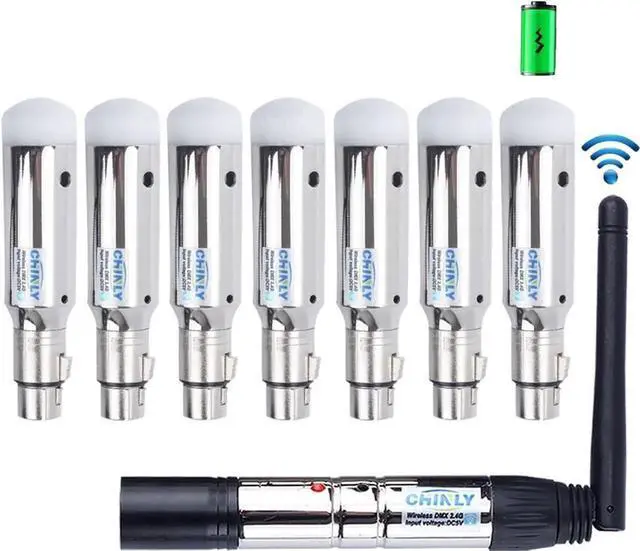

7 X Charging DMX512 Wireless Receiver (built-in battery

1 X DMX512 Wireless transmitterno built-in battery

8 X Adapter

1 X Instruction book

- Latest design wireless DMX512 receiver have a built-in battery, don't need power adapter any more when it works. 2 hours full charging time, can lasts about 8 hours of work Users also can use the product while charging. (Transmitter does not contain charging function)

- Work frequency section: 2.4G ISM; No time delay when signal data is transmitting, signal data is real time and reliably.

- DMX512 wireless transmitter transmits standard DMX512 protocol data (generated by console) by wireless way.
