1x4 HDMI Extender Splitter 4K Over Cat6 70m/230ft POC with 4X Receivers IR Control EDID HDMI Over Ethernet Splitter

Design: Compact design for easy and flexible installation, with 2x Mounting ears and 8 × Machine Screw (KM3*4).

Distance: Support 70m/230ft under 1080P resolution and 40m/131ft under 4K@30hz resolution.

Dimensions:

Transmitter: 210mm (W) x 83mm (D) x 18mm (H)

Receiver: 79.5 mm (W) x 69mm (D) x 16.5 mm (H)

Features1x4 HDMI splitter extender

1. HDMI 1.4 and HDCP 1.4 compliant

2. Video resolution up to 4K2K@30Hz( 4:4: 4) 8-bit

3.

Support audio formats: LPCM 7.1CH, Dolby True HD, and DTS-HD

Master Audio

4. Extend the signal transmission distance up to 131ft / 40 meters at the

resolution of 4K30Hz, or 230ft / 70 meters at 1080P@60Hz via a single

CAT6 cable

5. Support 1 HDMI input, 1 HDMI loop output and 4 CAT outputs.

6. Advanced EDID management

7. Support one-way POC function (only from transmitter to receiver)

8. Compact design for easy and flexible installation

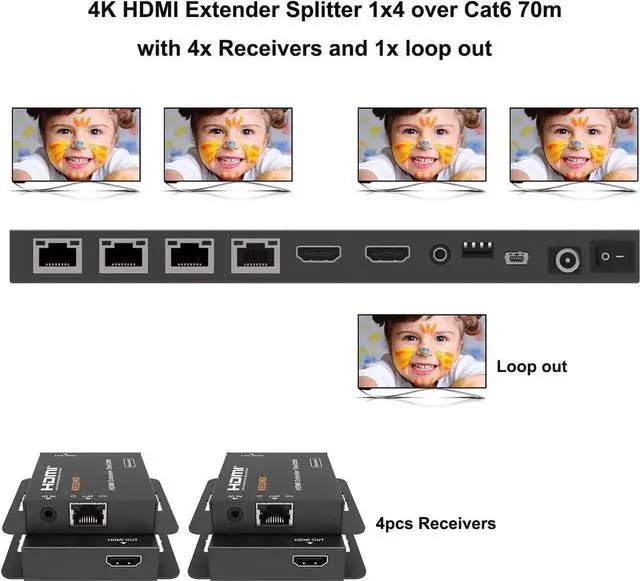

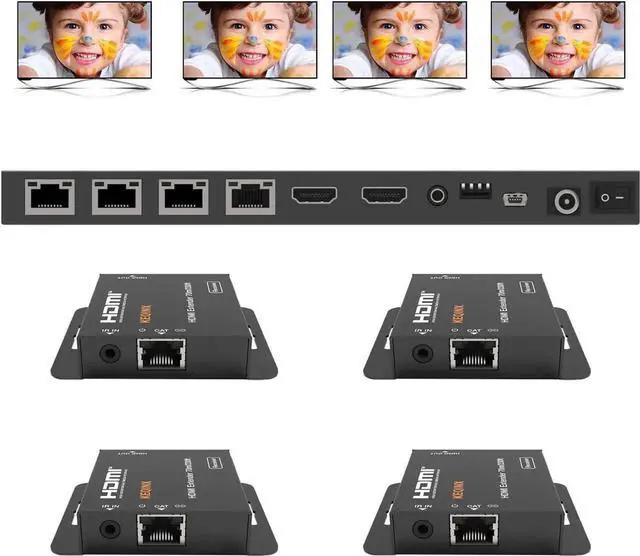

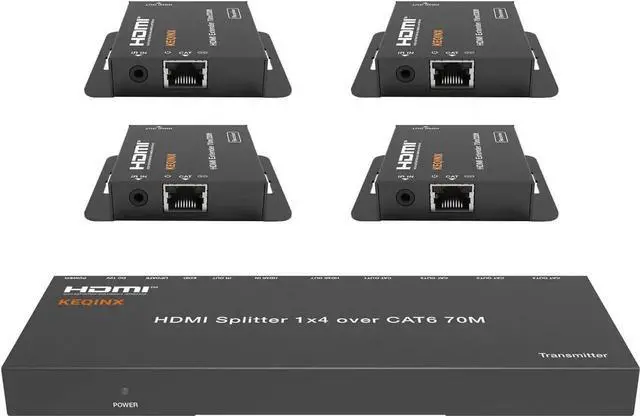

Easy SetupThis product include 1x HDMI splitter and 4x Receivers

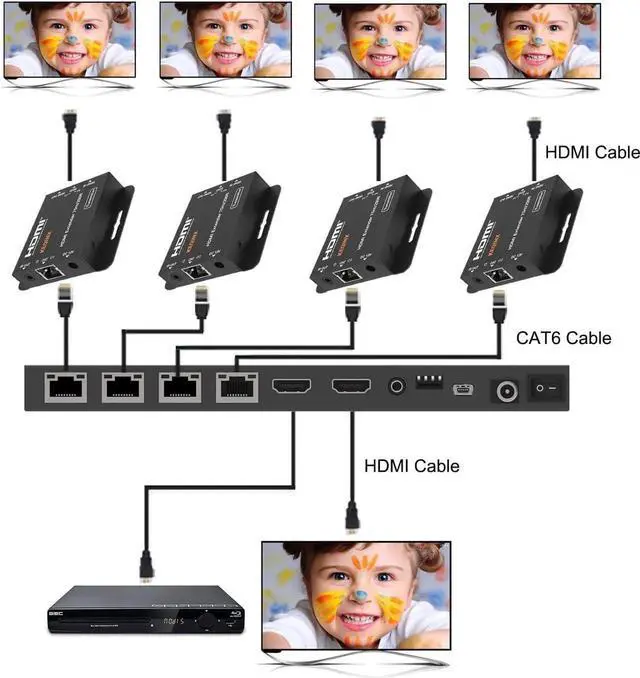

Easy connect Splitter to four receivers with Cat6 cable.

Connect the HDMI port of the splitter with the HDMI source with the HDMI cable, connect the cat port of the receiver and the cat port of the splitter with the CAT6 cable respectively, and finally connect the HDMI port of the receiver and the HDMI port of the TV with the HDMI cable.

Plug in the included power supplies.

Your HDMI extension is now ready.

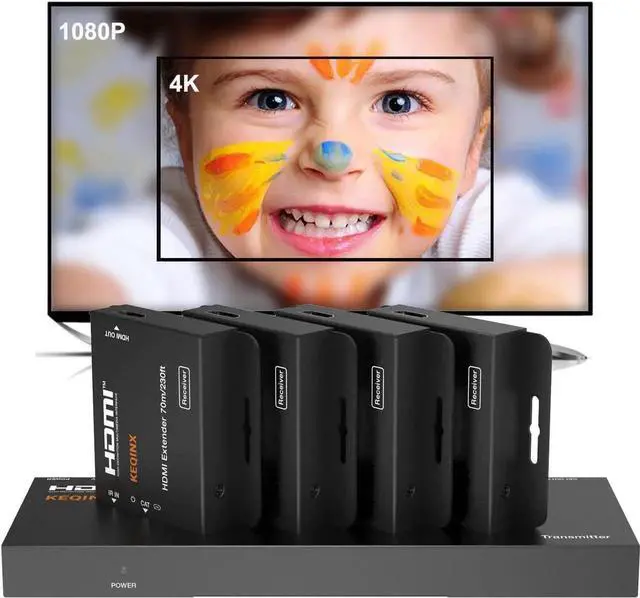

4K high resolution Support Video resolution:

480i ~1080p50/60Hz, 4Kx2K@30Hz (444) 1x4 HDMI splitter 4K 70m with 4 receivers HDMI Compliance

HDMI 1.4, HDCP 1.4

Video Bandwidth

297MHz/ 10.2G bps

Video Resolution

480i ~1080p50/60Hz, 4Kx2K@30Hz (444)

Color Depth

8-bit, 10-bit, 12-bit (1080p@60Hz); 8-bit (4K30Hz)

Color Space

LPCM 7.1CH, Dolby True HD, and DTS-HD MasterAudio

Dimensions

Transmitter: 210mm (W) × 83mm (D) × 18mm (H)

Receiver: 79.5 mm (W) × 69mm (D) × 16.5 mm (H)
