Network Cable Tester with 10mW Visual Fault Locator, RJ11 RJ45 Ethernet Cable Tester POE Tester Cable Toner, Rechargeable Anti-Interference Network Tester for Telephone LAN Coax Cable
- The Network cable tester can test the on-off, short-circuit, crossover, and crosstalk of network cables and video cables, and the LCD display is more intuitive.
- Test the idle, ringing, busy status of the telephone line and the polarity test of the telephone line.
- Our ethernet cable tester can test the length and breakpoint of network cables and video cables. One end is inserted into the primary interface on the top, and the other end does not need to be connected to any equipment.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

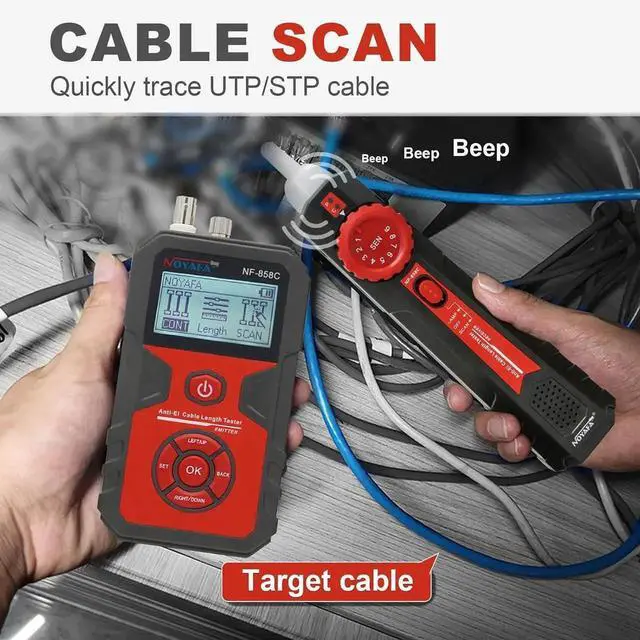

No noise interference tracking function can find network cable, telephone line, video cable, and various cables. Two hunt modes, POE/normal tracking can be switched at will, POE test can test the voltage and status of POE switch.
Port flashing function, by observing the flashing frequency of the LED lights on the switch/router, you can quickly find the wire head corresponding to the switch.
The cat6 cat5 cable tester also has a red light function, a recording function and supports USB charging, and can set the language, backlight, contrast, and automatic shutdown time independently. And we have professional customer support.

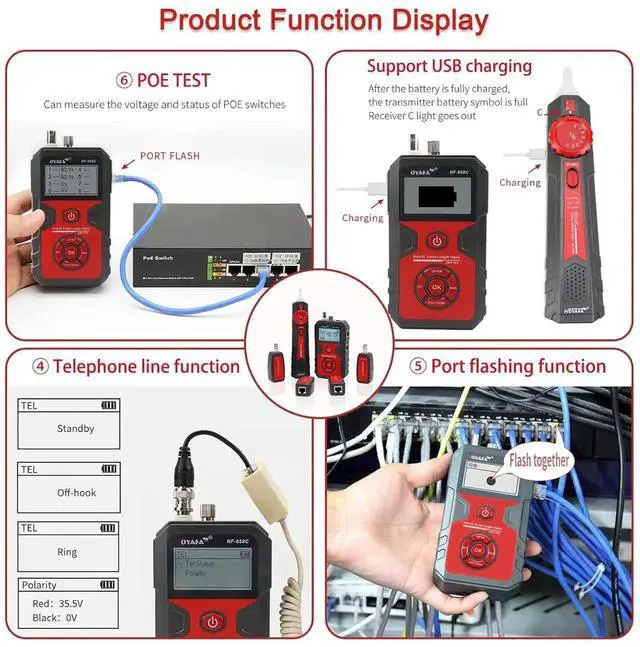

Product Function Introduction
POE tracking.
LCD display shows cable status.
VFL function to test fiber breakpoints and faults.
You can directly track various cables such as RJ45, BNC, etc.
Multi-function settings, we can set all parameters.
Port flashing function can directly find the target line.
Telephone line condition and polarity test.
It can directly test the length and breakpoints of RJ45 cables and BNC cables.
Perform crosstalk test on the network cable to solve the potential failure of slow Internet access.

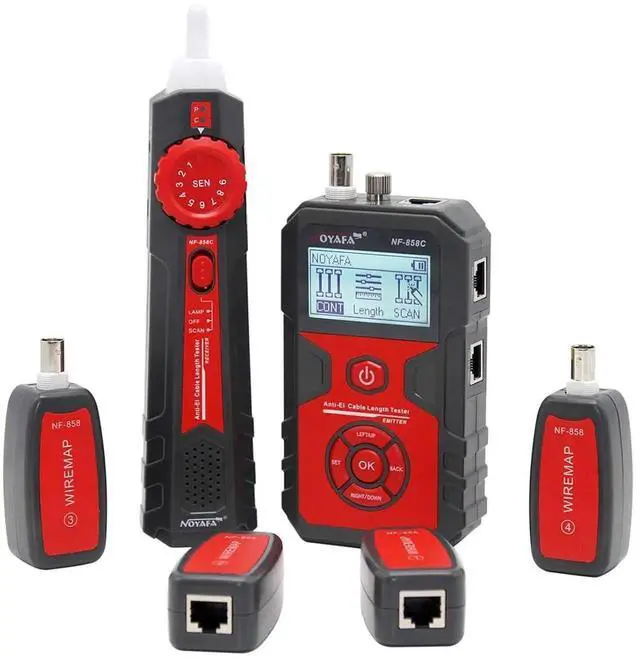

Equipped with four remote ends, it is fast and convenient to connect four sets of cables at the same time.
Tracking Mode
Anti-jamming tracking
Display Mode
LED Screen Display
VFL Function
OK
LengthTest
OK
Record Query
OK
BNC Alignment
OK
POE Tracking
OK
Crosstalk Test
OK
Alignment result
Single / Pair
Port Flashing
OK
Phone line status
OK
Phone Polarity Test
OK
NetworkCables Verifying
OK

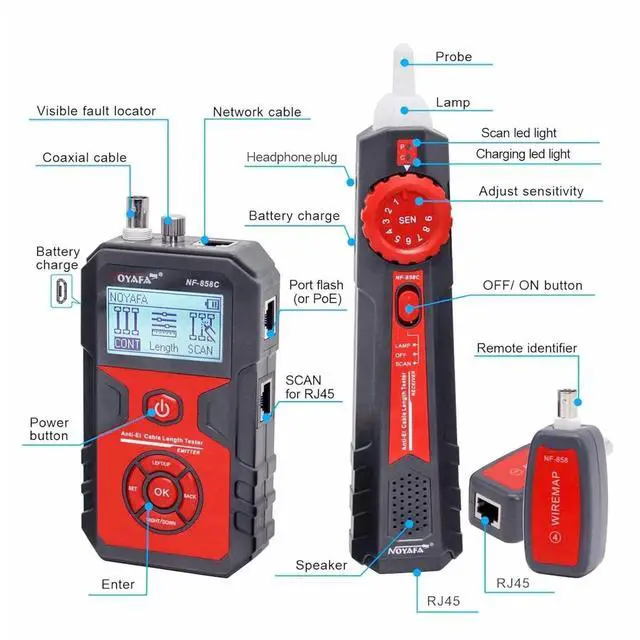

Receiver & Remote specifications Receiver Frequency
130KHz
Receiver Low battery indicate
3.5 ± 0.2V
Remote
4 pcs
Remote Compatible connectors
RJ45, Coaxial Transmitter specificationsIndicator
LCD 58x40 mm, with back light
Tone frequency for trace
130 KHz
Max. distance of tracing
2000m
Max. distance of cable map
2000m
Test cable type
Cat5. Cat 6, Coaxial
Compatible connectors
RJ45. Coaxial, VFL Mirco USB
Max. signal voltage
9 ±1 Vp-p
Function and faults
LCD display LCD display(length, wiremap, scan short. No adapter, Low battery)
Test record Store
6 groups
