Thermal Imaging Camera Multimeter with Macro Lens, 320x320 IR Resolution with 15 Thermal Palettes, 20000 Counts with 3.98" Touch LCD, Measures Cap, AC Clamp, Temp Diode for Electrical Electronic

[15

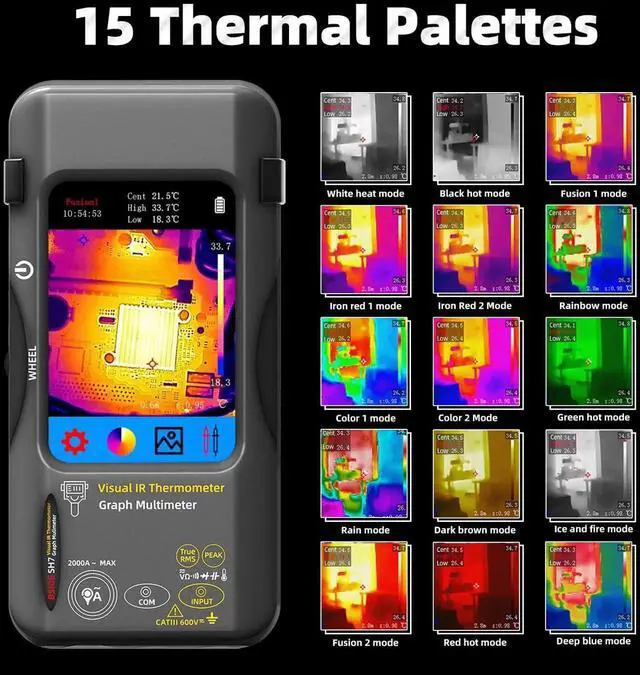

Thermal Palettes]: Thermal imager multimeter has 15 thermal palettes for choice: white hot, black hot, fusion 1, rainbow, fusion 2, iron red 1, iron red 2, dark brown, color 1, color 2, ice fire, rain, green hot, red hot, dark blue.

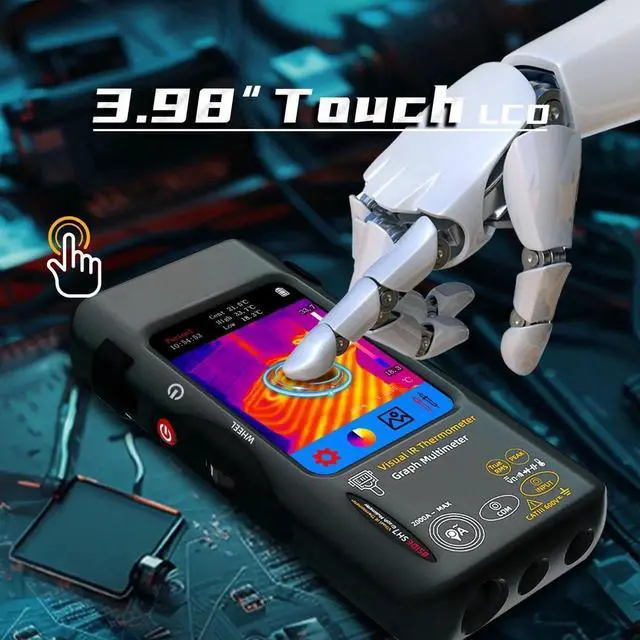

[ 3.98 Touch TFT Screen]: Infrared camera multimeter equipped with 3.98 inch 320 x 480 color touch lcd, which provides you with best reading enjoyment, you could get the clear test results at wide angle.

[Accurate Measurement]: Thermal imager voltmeter enables a refresh rate of 25 Hz and a wide temperature range from -20 to 550(-4 to 1022).

[Efficient Data Storage and Export]: Thermal imaging camera can be connected to computer via USB for further analysis. The memory card can hold more than 19, 000 images.

[Flexible AC Current Clamp Measurement]: Digital multimeter tester measures flexible ac current clamp accurately up to 2000A. The flexible clamp wire were not included.

Features:

Handheld thermal imaging camera

Infrared camera with touch LCD screen

Super large touch screen thermal imager

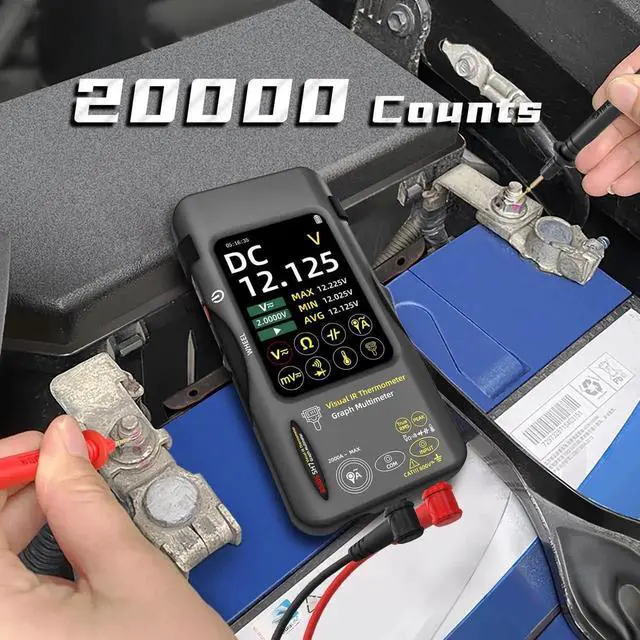

20000 counts smart digital multimeter

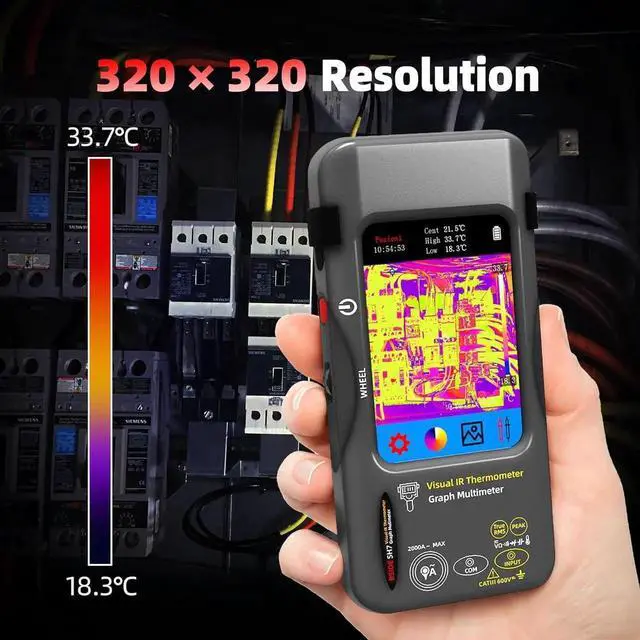

320 x 320 ir resolution thermal imaging camera

320 x 480 screen display resolution infrared camera

Measures ac and dc voltage, resistance and continuity

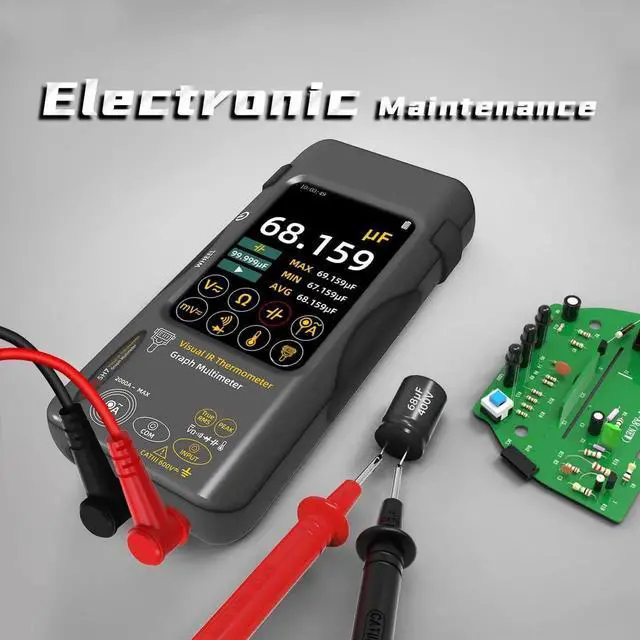

Measures capacitance, diode, temperature and ac current clamp

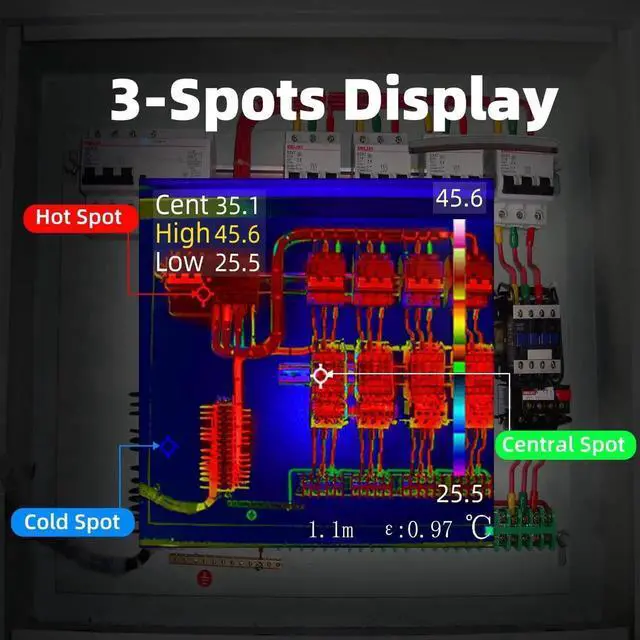

Display hot, cold and central spots temperature on the screen

The emissivity of infrared imaging camera is adjustable

Rechargeable portable infrared camera with 15 thermal palettes

Tested data can be exported to your computer for analyzed

for home inspection, hvac electrical plumbing, boiler inspection

Specification:

1. Infrared Camera

Display Size: 3.98 Inch TFT LCD

IR Resolution: 320 x 320

Screen Resolution: 320 x 480

Angle of View (FOV): 50.0 ° (H) x 50.0 ° (V) / 72.1 ° (D)

Spatial Resolution (IFOV): 8.89 mrad

Temperature Range: -20-550(-4-1022)

Thermal sensitivity/NETD: Less 60mk

Refresh Rate: 25Hz

Distance Settings: 0.3 -3 m

Emissivity: 0.01 -1

Thermal Palettes: 15

Number of storage image: 19000

2. Digital Multimeter

MAX Display: 20000 counts

DC voltage:

20mV/200mV 0.001 mV/ 0.01 mV ±( 0.1 %+3); 2V/20V 0.0001V / 0.001V / ±( 0.05 %+3); 200V/1000V 0.01V / 0.1V ±( 0.5 %+3)

AC voltage:

20mV/200mV 0.001 mV/ 0.01 mV ±( 0.1 %+3); 2V/20V 0.0001V / 0.001V / ±( 0.05 %+3); 200V/750V 0.01V / 0.1V ±( 0.5 %+3)

Flexible AC Current: 200A/2000A 0.1A /1A ±( 1.0 %+5)

Resistance:

200 0.01 ±( 0.5 %+3); 2k/20K/200K 0.0001K / 0.001K / 0.01K ±( 0.2 %+3);

2M/20M 0.0001M / 0.001M ±(1%+3); 200M 0.01M ±(5%+5)

Capacitance:

999.99 nF 0.01 nF ±( 5.0 %+20); 9.999 µF/ 999.9 µF 0.001 µF/ 0.01 µF ±(2%+5); 99.999 mF 0.001 mF ±(5%+10)

Temperature: -20~1300/-4-2372 1/1 ±(2%+5)

Diode: Yes

Continuity: Yes

3. Macro Lens

Working object distance: 35mm

Magnification: 0.3X

Power: 2500mAh rechargeable battery (built-in)

Size: 169*81* 26.8 mm

Weight: 270g

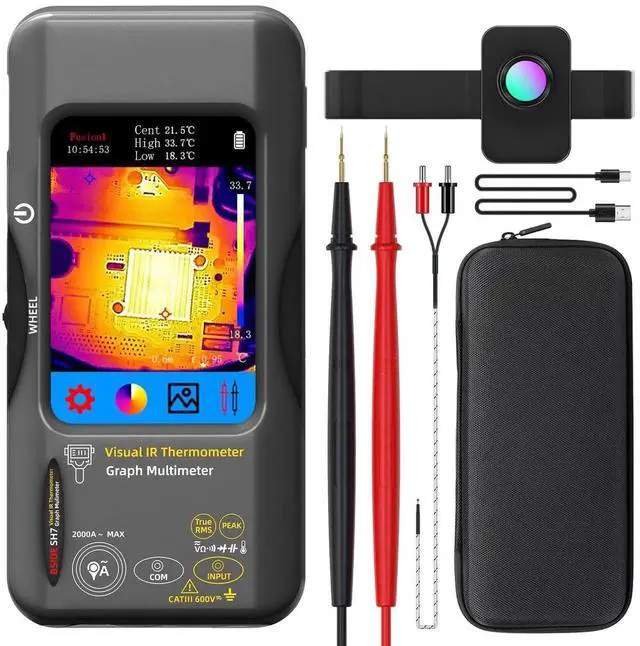

Package Includes:

1 x Infrared Camera Multimeter

1 x Macro Lens

1 x Charging Cable

1 x Carrying Case

1 x User Manual

Note:

The flexible ac current clamp are not included in the package
