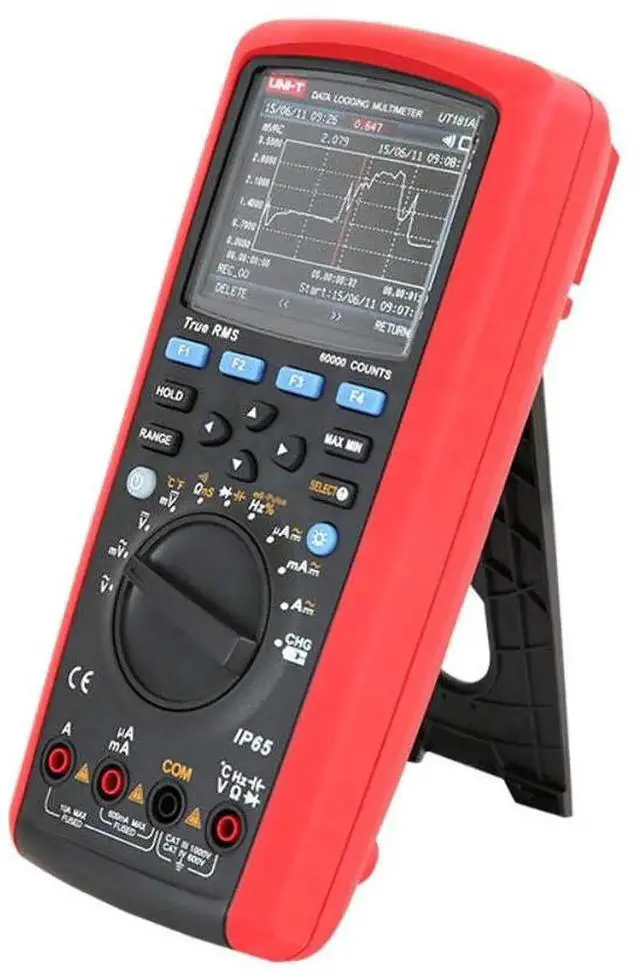

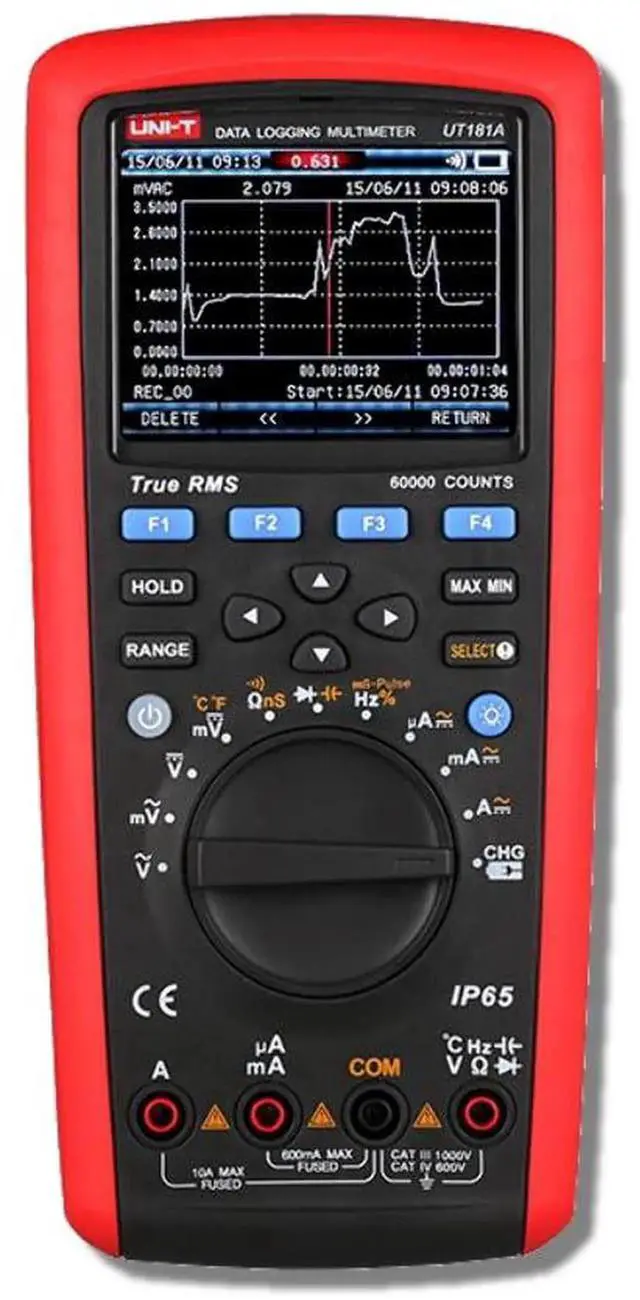

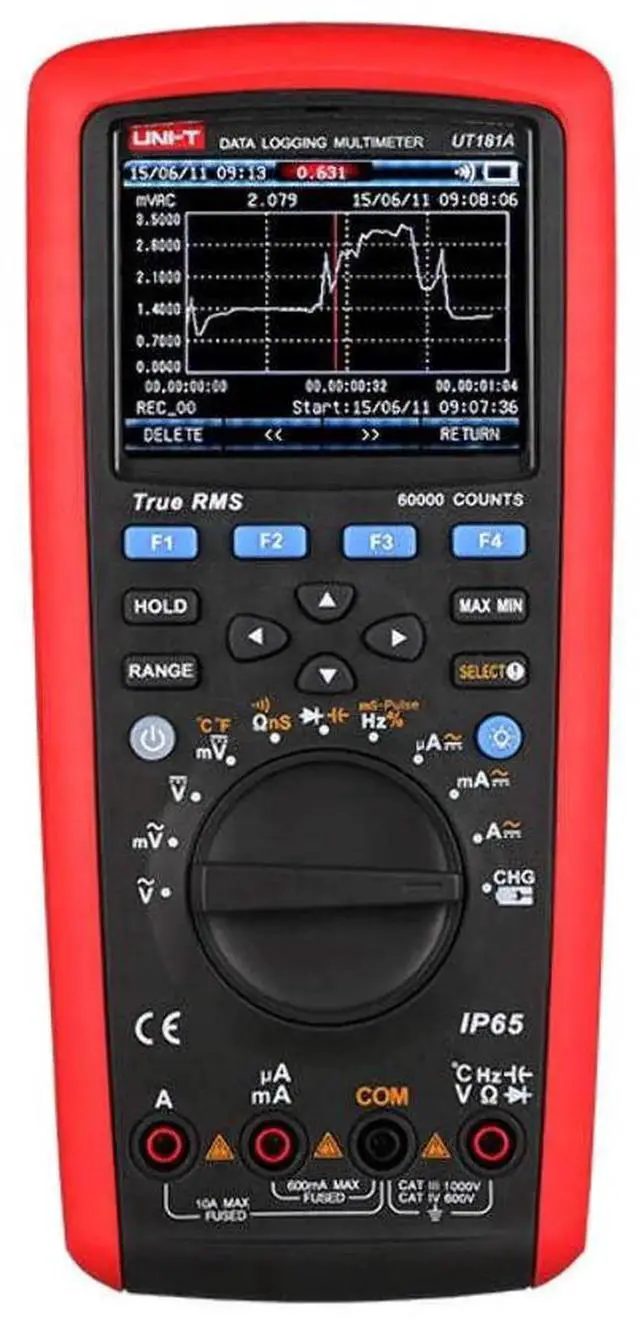

UT181A TRMS Datalogging Digital Multimeter - True RMS, 60,000 Count, Bluetooth, USB, IP65, Desktop Multimeter, Red and Grey

HIGH VOLTAGE CAPACITY: Supports maximum voltage of 1000 V DC and 1000 V AC. This automatic digital multimeter handles up to 10 A, making it versatile for various applications.

COMPACT AND PORTABLE: Weighing 638.6 grams, this small-sized multimeter is easy to carry. Includes battery, test leads, and temperature adaptor socket for convenience.

UT181A True RMS Datalogging MultimeterVersatile Multimeter for Precise MeasurementsThe UT181A True RMS Datalogging Multimeter offers advanced features for accurate measurements. With data logging, trend capture, and dual temperature measurement capabilities, it provides reliable performance for various applications.

Features of UT181A True RMS Datalogging Multimeter Certifications: CE, UKCA, cETLus Trend capture

Data logging: 20000

Data comparison

3.5 -inch 64k color TFT LCD

Dual temperature measurement Low pass filter

UT181A True RMS Datalogging Multimeter 2000mAh Li-ion battery

Real time and date

Peak hold

Bluetooth/APP

USB interface cable /PC software CD IP65

Unleash Precision and EfficiencyPowerful and Versatile MultimeterThe UT181A True RMS Datalogging Multimeter is a feature-packed tool designed for professionals. With data logging, trend capture, dual temperature measurement, and more, it offers exceptional versatility and precision.

320X240 resolutions 3.5"TFT Color LCD

UT181A True RMS Datalogging Multimeter Other data events including Max, Min, and AVG;

Up to 20A current measurement (30 seconds of measurement time);

With datalogging feature

UT181A True RMS Datalogging MultimeterUT181A is a digital multimeter with trend capture, true RMS, low pass filter, nS conductance, dual temperature measurement, and more. With the help of the datalogging feature, users can store up to 20000 sets of measurement data and display them on a trend graph for long term monitoring.

UT181A Merchant Video Display count 60000

UT181A True RMS Datalogging Multimeter Standard USB cable for PC communication, and optional Bluetooth Adaptor (UT-D07A) for Smart Phone communication;

Rugged double molding and lP65 water proof industrial design;

Compatible with EN61010-1 safety rating at CAT! II 1000V/ CAT IV 600V;

Power by 2000mAh Li-ion battery and recharge by included power adaptor.

UT181A True RMS Datalogging Multimeter UT181A is a digital multimeter with trend capture, true RMS, low pass filter, nS conductance, dual temperature measurement, and more. With the help of the datalogging feature, users can store up to 20000 sets of measurement data and display them on a trend graph for long term monitoring.

1. Display count 60000 (320X240 resolutions 3.5"TFT Color LCD display);

2. Support displaying multiple measurement results at the same time;

3.

More than 10 measurements including: Voltage(AC/DC)Current(AC/DC)Resistance Diode Capacitance. AdmittancesFrequencyDuty Cyclelmpulse WidthDual-Temperature and etc;

4. True RMS response for AC Voltage and AC Current measurement with build-in low pass filter: 5. 100kHz bandwidth for AC voltage and Ac current measurement, together with 1 0kHz bandwidth for Ac voltage and Ac

current at AC+DC measurement mode.

6. Data logging up to 20k data set of memory; Data events include store, review, delete, plot in trend-diagram,
