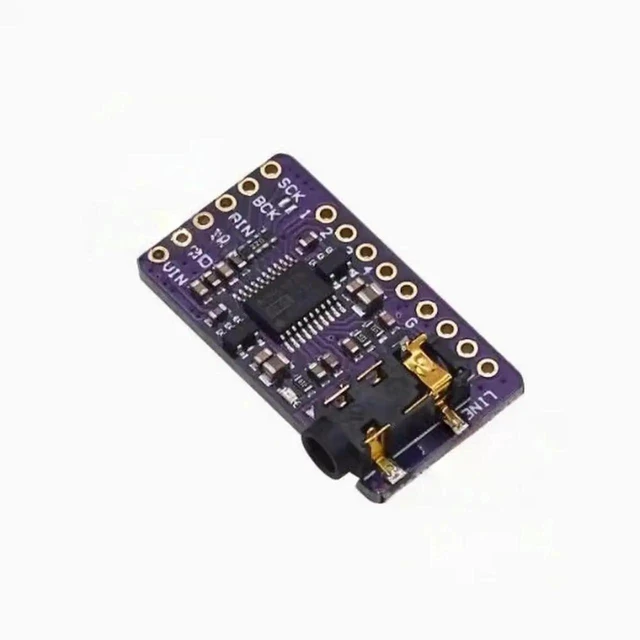

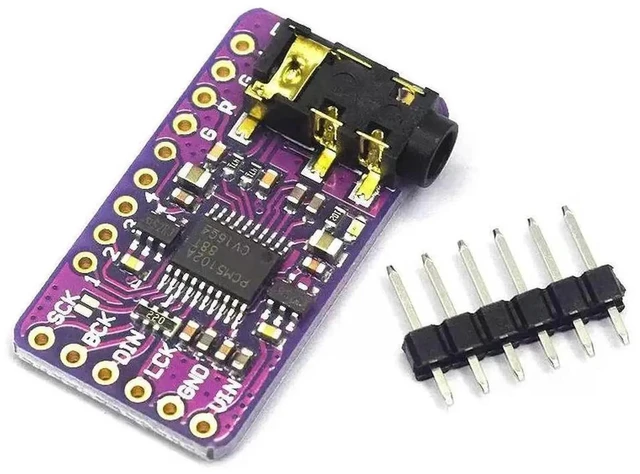

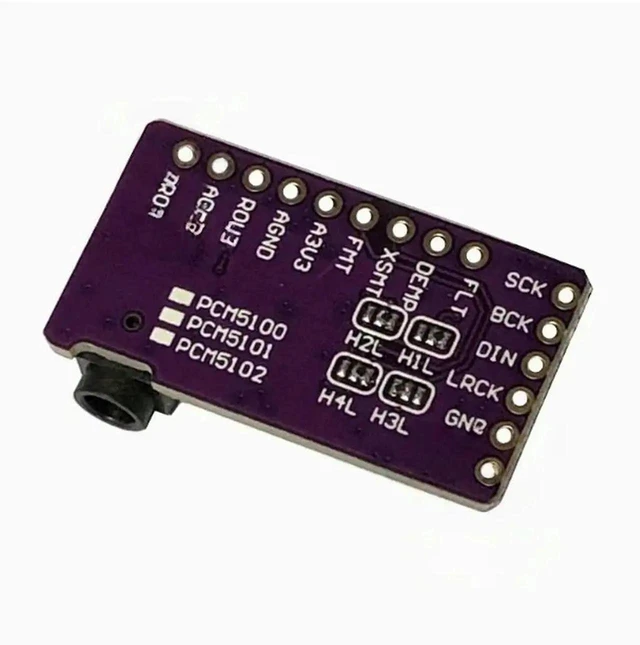

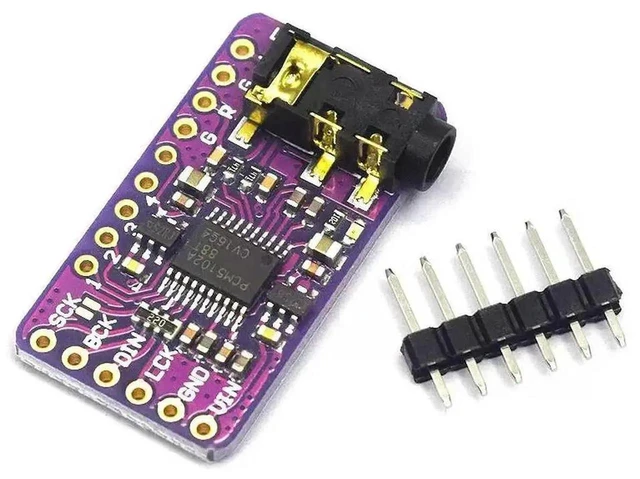

AJMRTC PCM5102 DAC Decoder Board, Stereo DigitaltoAnalog Converter Module, I2S IIS SingleChip Audio Decoding Board for Raspberry Pi, DIY Audio Player and Amplifier Modification Projects
- Adopts PCM5102 highperformance stereo DAC chip, delivers lossless digitaltoanalog audio conversion for clear highfidelity sound output
- Supports standard I2S IIS digital audio input interface, easy connection with singleboard computers, microcontrollers and audio main control boards
- Onboard professional audio circuit optimizes noise suppression, effectively reduces background hum and signal distortion during audio playback
- Compact smallsize PCB design, convenient for embedded installation inside DIY speakers, amplifiers and custom audio player devices
- No complex peripheral debugging required, works for audio modification, maker experimental projects and home hifi system building
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AJMRTC PCM5102 stereo DAC decoding board is a compact singlechip digitaltoanalog converter module built around TI PCM5102 audio decoding chip. This module receives digital audio signal via I2S IIS interface and converts digital stream into analog stereo audio signal to feed power amplifier or earphone amplifying circuit. Optimized peripheral circuit layout lowers ground noise and signal interference to guarantee pure audio performance during playback. The module features simple hardware connection without complicated software configuration, compatible with Raspberry Pi, various MCU development boards and other main controllers that output I2S audio signal. Tiny PCB footprint makes it suitable to be installed inside custommade audio players, modified speakers and small hifi projects. It is widely applied for electronic maker experiments, DIY audio equipment renovation and audio teaching demonstration. Users should match correct I2S clock configuration on main controller side for normal decoding performance. Please check working voltage and pin definition before wiring to prevent module damage.
SpecificationsBrand: AJMRTC Main Chip: PCM5102 Function: DigitaltoAnalog Stereo Audio Conversion Input Interface: I2S / IIS Audio Channel: Left + Right Stereo SignaltoNoise Ratio: Up to 112dB Working Voltage: 3.3V5V DC PCB Dimension: 32mm × 22mm Net Weight: 7g Application: DIY audio player, amplifier modification, singleboard computer audio expansion, electronic experimental project Package Content: 1 × PCM5102 DAC Decoding Board
