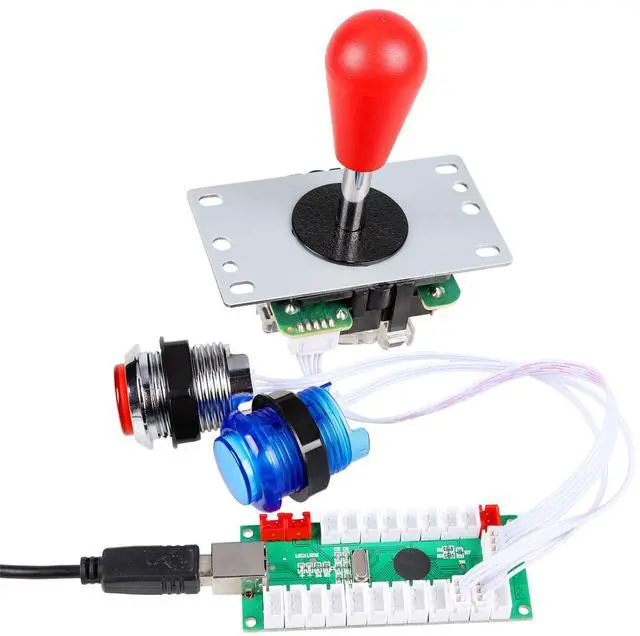

LED Arcade Joystick Buttons Kit Ellipse Oval Style 8 Ways Joystick + 20 x LED Arcade Buttons for 2 Player Video Games Standard Controllers All Windows PC MAME Raspberry Pi Red + Blue Kits

Product Description

1.Each Encoder have its own USB Cable to make sure that Multiplayer can play the games in the same condition!

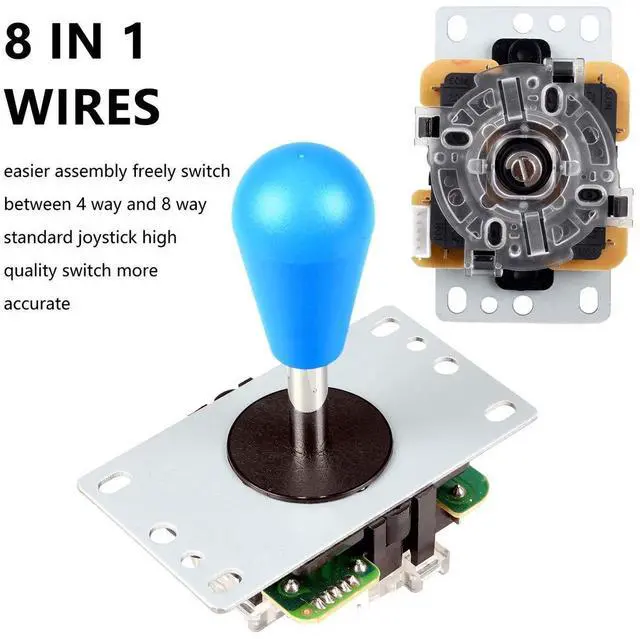

2.The Arcade Joystick is a square 8 way professional joystick!

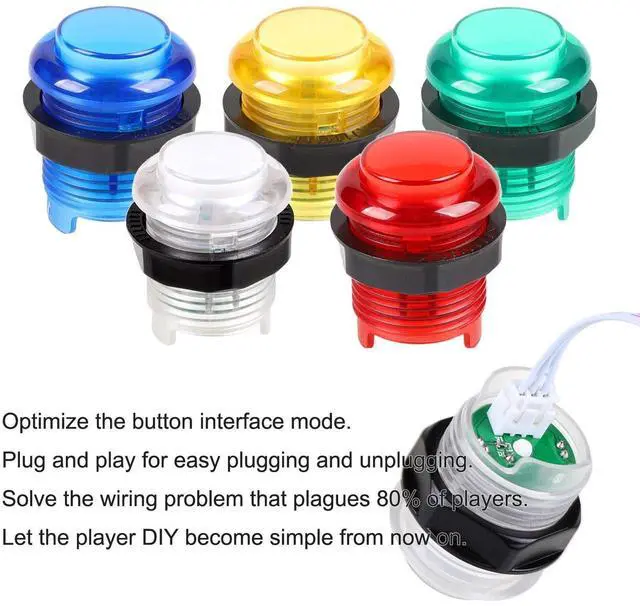

3.The buttons are 5V LED Illuminated push buttons with build-in Blue switch inside.

4.The buttons default as lighted all the time.

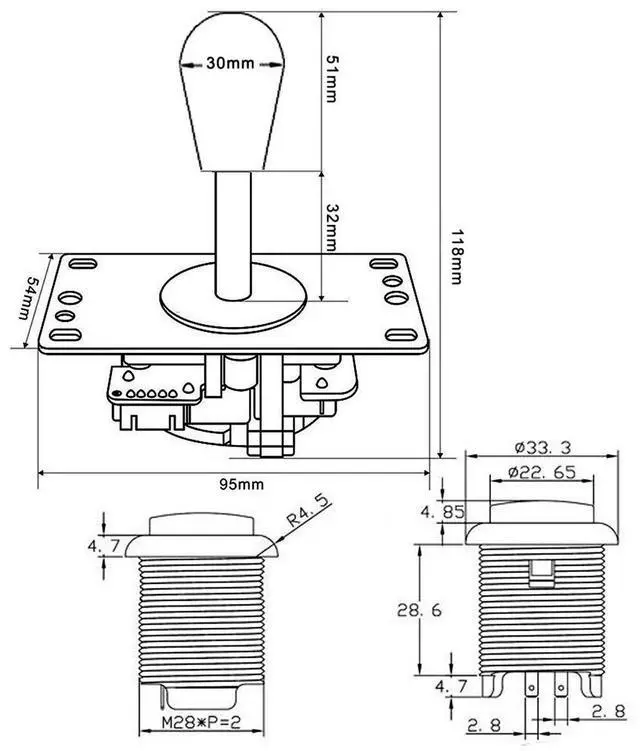

5.Joystick hole diameter: 24mm, large button hole diameter: 28mm

Package Included

2x Zero Delay LED USB Encoder

2x USB Cable

2x 5Pin wires for Joystick

20x 3Pin wires for LED Push Buttons

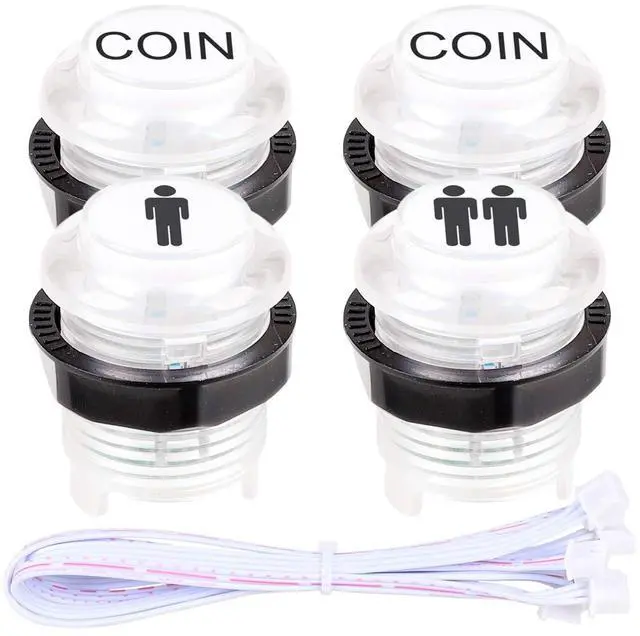

4x 30mm Ring-Fixing LED White Push Buttons as start buttons (1 Player + 2 Player + 2x Coin)

16x 30mm Ring-Fixing LED Push Buttons as fight buttons

2x 5Pin Square 8 way joystick

1x Install Description

Tips for installation

1. Plese read our user manual before starting your diy actions.

2. It's very important! Connect Joystick's 5Pin cable to the 5Pin slot that opposite the USB-B terminal. A lot people connect the joystick to the wrong 5Pin slot.

3. There is no need separate the button's functions when you connect wire to push buttons and encoder board exept you want add " Auto-Fire", " Tubro", "Clear" & " Mode" Functions.All the fight button functions can be set in MAME or RetroPie. "Auto-Fire", "Tubro","Clear" & "Mode" Functions have its own slot on the encoder board.

4. For Professional Players. We suggest your change all the buttons and joysticks into SANWA Brand or SEIMITSU Brand.

Tips for New User:

1. The item need work with MAME emulator. So before your build your own project, please download one to work with the parts.

2. If you use this kit to build your own Raspberry Pi Retropie Projects. Please search the steps before your DIY.
