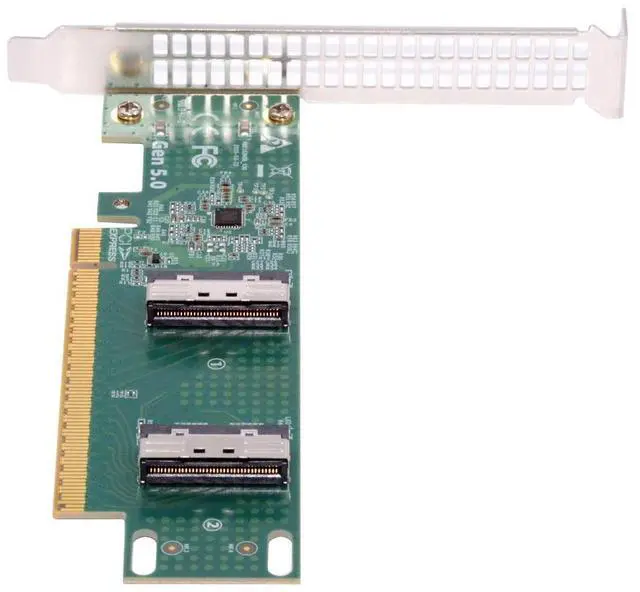

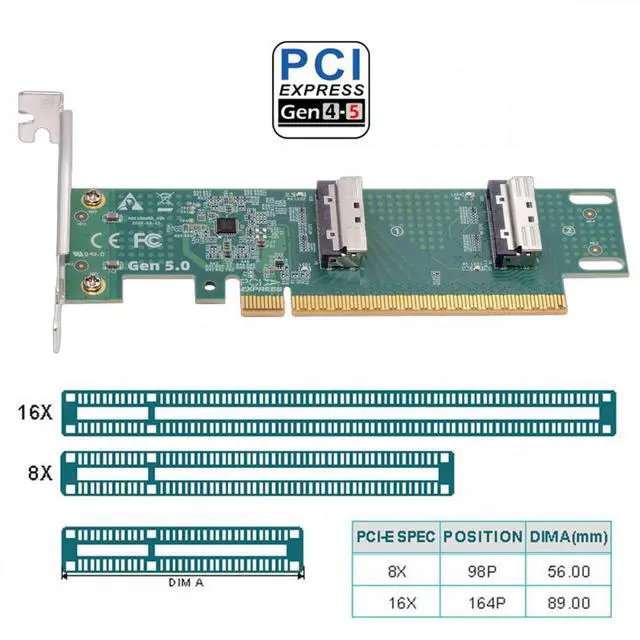

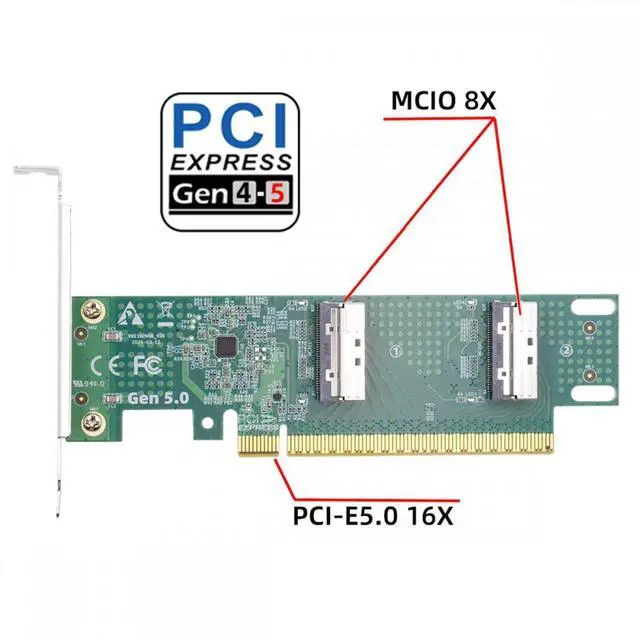

Chenyang PCIE5.0 PCI-Express 16x to Dual MCIO 8i Mini Cool Edge IO SFF-TA-1016 VROC Virtual RAID Adapter for Mainboard SSD Graphics Card

PCIE 5.0 PCI-Express 16x to Dual MCIO 8i Mini Cool Edge IO SFF-TA-1016 VROC Virtual RAID Adapter for Mainboard SSD Graphics Card
One detachablePCIE PCI-Express 8x motherboard can be connected, The converter can be installed into the system internally through the MCIO interface.

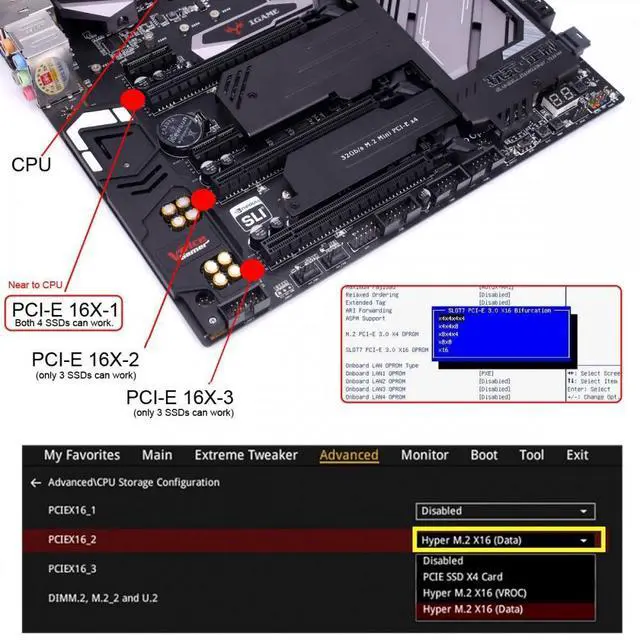

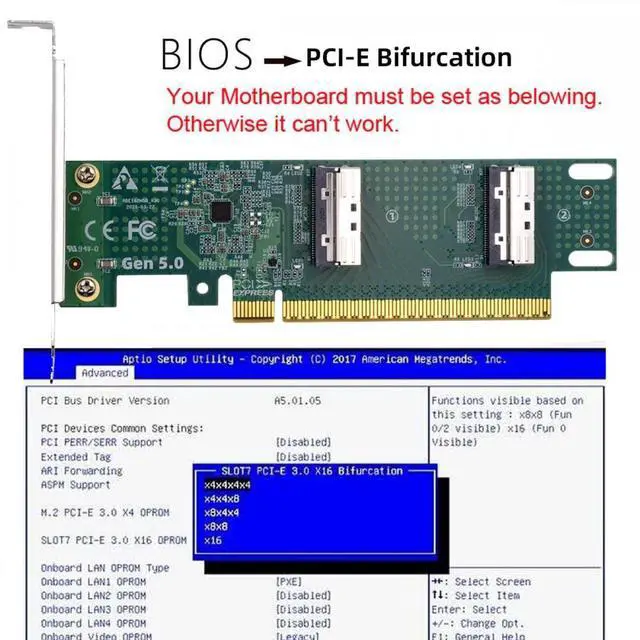

Only supports motherboards with detachable PCI-E channels. Control the operation of two disks based on the motherboard PCIE channel, The motherboard without PCIE signal split can only recognize one disk.
Built-in multiple sets of high-power DC modules for sustainable and stable work.
High-speed data transfer: The adapter is designed for use with ssd that use MICO 8x connectors, allowing for fast and reliable data transfer at speeds of up to 24 Gbps.

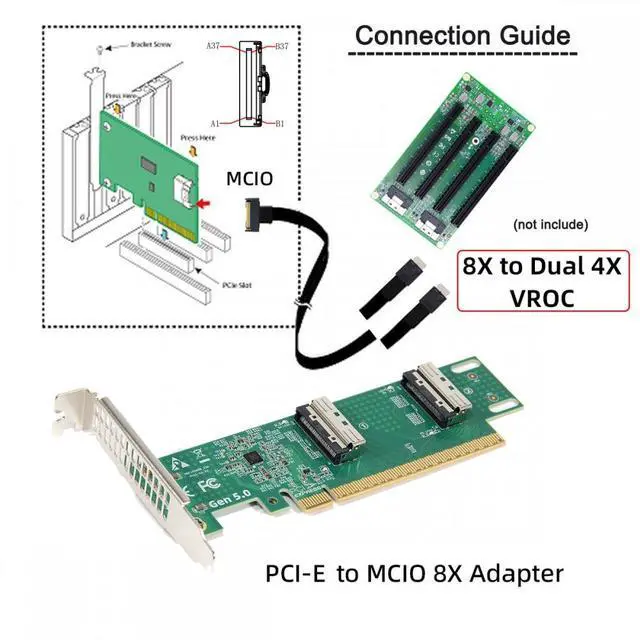

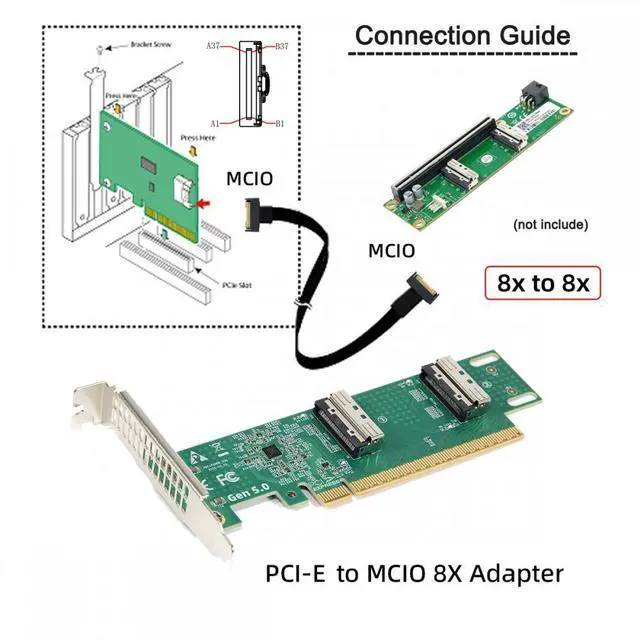

Easy to use: Simply plug in the MCIO 74 Pin end of the adapter into your device and the MCIO 74pin/38pin end into your external hard drive, and you're ready to go.
Mini Cool Edge IO (MCIO) adapter assemblies, These products can provide high performing channels with the added flexibility of where/how to use signals in your system.
What is mini cool edge Io (MCIO): MCIO adapters are designed for data center, networking and telecommunications markets that use SAS, PCIe, Ethernet and othersignal protocols.
The solution can support adapter to board and card to board applications in system, which include chip to chip, chiptomodule, chip to board and card edge option.
High-performance adapter for networking and server equipment: The MCIO Mini Cool Edge IO is designed to support a wide range of protocols, including SAS, PCIe, Ethernet, and more, ensuring optimal performance for your equipment.
Industry standards: Support for SAS 3.0 / 4.0, PCIe Gen 3/4/5, 25G Ethernet, and 56GT/s PAM4 means that you can trust that your equipment will perform at optimal levels without any signal loss or degradation.
