What is the appropriate way to break-off/remove the excess PCB where there is perforation? For fully enclosed drives.

What do you mean "the appropriate way to break-off/remove the excess PCB". This adapter only works with E1.S SSDs. It won't fit a U3 or an E3 SSD. Also, an E1.L will be too long to fit. E1.s SSDs also come in different thickness from 5.8mm to 15mm. I believe the maximum thickness this will hold is 8mm. I used it with a 5.8mm and had to not trim anything for it to fit and work.

Questions & Answers: Jimier PCI-E4.0 4X Host Adapter to NVMe Ruler 1U GEN-Z EDSFF 5.9mm 8.0mm Thickness Short SSD E1.S Carrier Adapter SF-036-BK-

Home
Components & Storage
Cable
SCSI / SAS / InfiniBand Cables
SHENZHEN JIMIER ELECTRONICS CO,. LTD.
Item#: 9SIAT4NKUG6490
Questions & Answers

(2)

double click image to zoom in

Visit Jimier Store

Jimier PCI-E4.0 4X Host Adapter to NVMe Ruler 1U GEN-Z EDSFF 5.9mm 8.0mm Thickness Short SSD E1.S Carrier Adapter SF-036-BK-

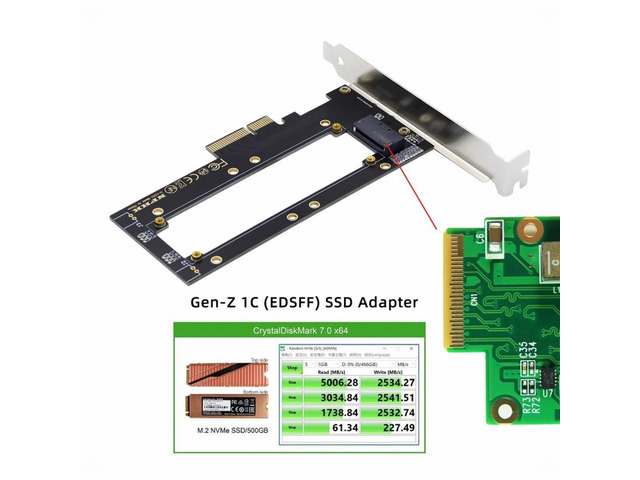

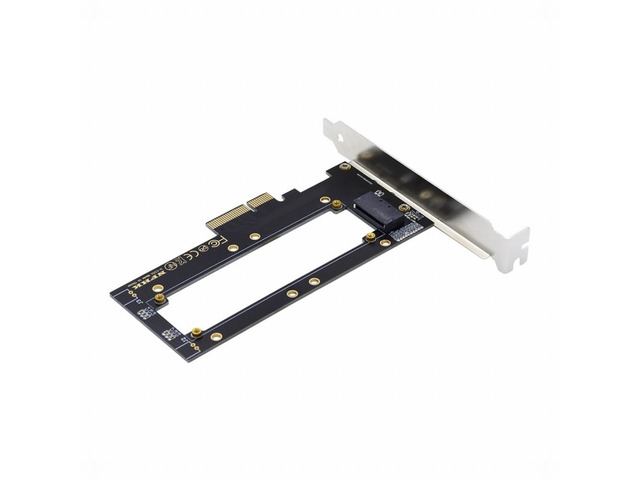

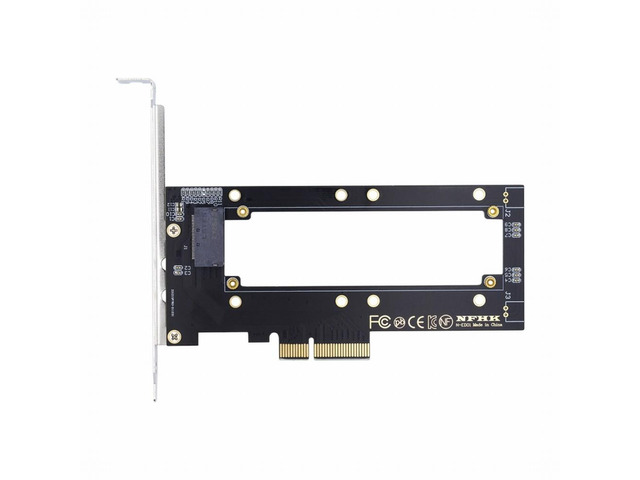

PCI-E 4X Host Adapter to NVMe Ruler 1U GEN-Z EDSFF Short SSD E1.S Carrier Adapter

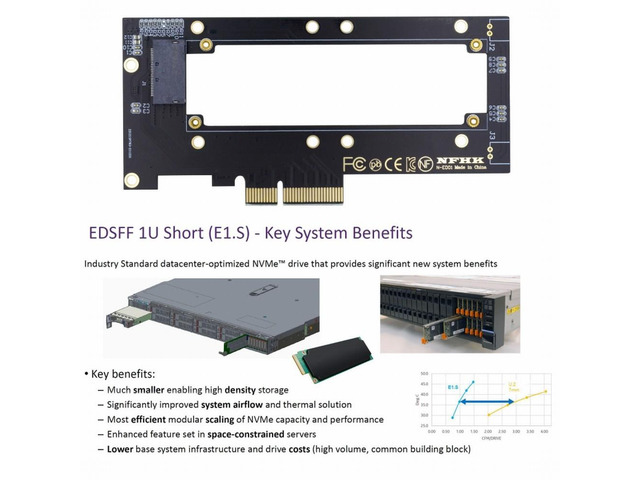

EDSFF offers a dynamic range of form factors that have advantages vs the incumbent SSD form factors in capacity, scalability, performance, serviceability, manageability, thermal and power management.

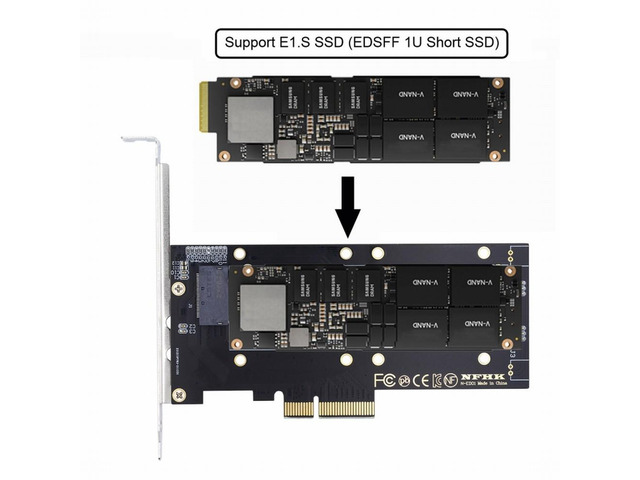

This converter enables the connection of a GEN-Z SSD in E1.S. Fit for 5.9mm and 8.0mm SSD without heat sink.
The converter can be installed into your system internally through the PCI-E 4X interface.
Thus an EDSFF E1.S SSD becomes an PCI-E SSD, which can be used in IoT, data center and server area.
Compliant with PCI Express 4.0. No driver installation is required. Most of the latest operating systems support PCIe-NVMe SSDs.

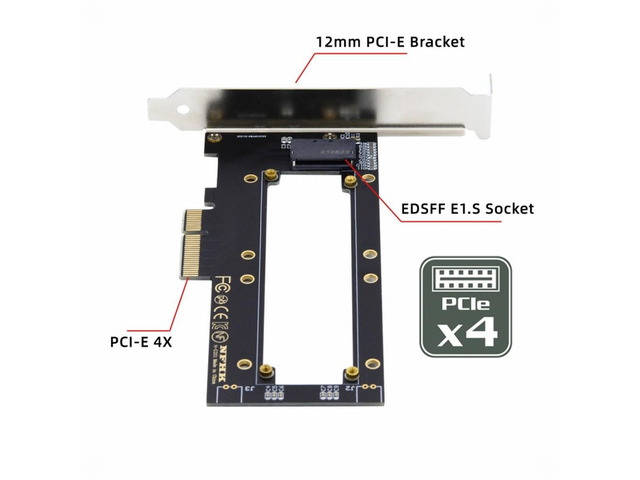

Low profile and Regular size PCIe bracket on board.
