High Density Storage Migration Solution
The Cable Matters Internal HD Mini-SAS 8643 to 4 x SATA Cable is an essential component for migrating from a 6 Gbps to 12 Gbps storage area network. It provides multiple lanes of high speed SATA traffic through a single cable in a sturdy but flexible cable that is built to withstand 24/7 use.
Robust Construction
The combination of a slim ribbon cable design in a woven mesh sheath with locking connector latches provides a professional installation that minimizes the impact on airflow in a computer case.
Important Notes
Pair with a 4 port SATA to Power Splitter Cable to provide power to the drives
Data transfer speed is determined by the capabilities of your SAS controller and SATA drives

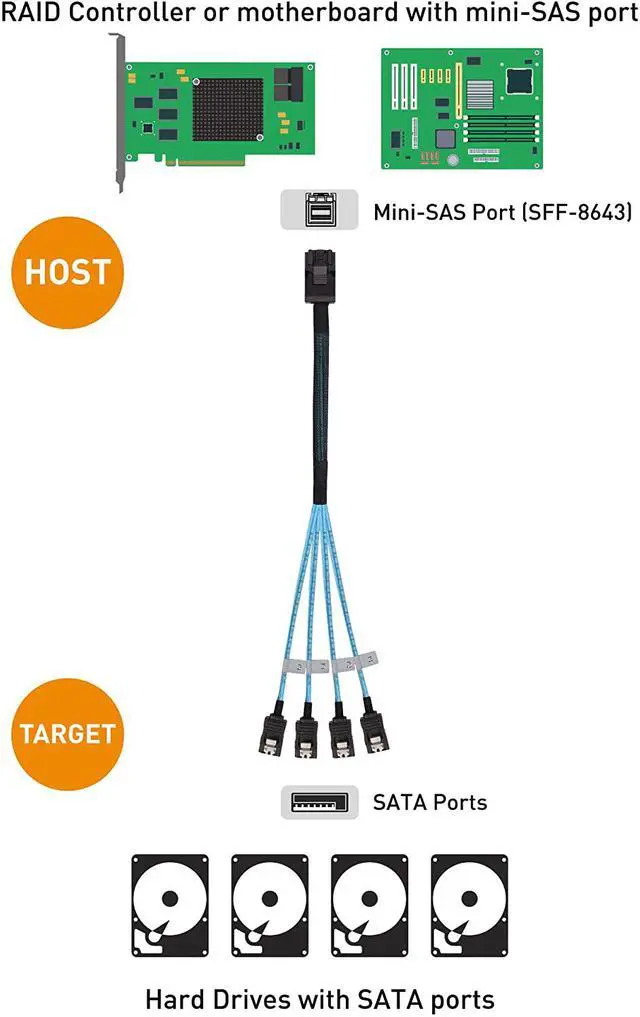

Internal HD Mini SAS cable is specifically designed to connect a 12 Gbps host bus adapter or RAID controller with SFF-8643 to 4 discrete SATA drives; Mini SAS HD to SATA adapter cable provides reliable internal connectivity between a high density RAID controller card and direct attached storage devices with a SATA plug

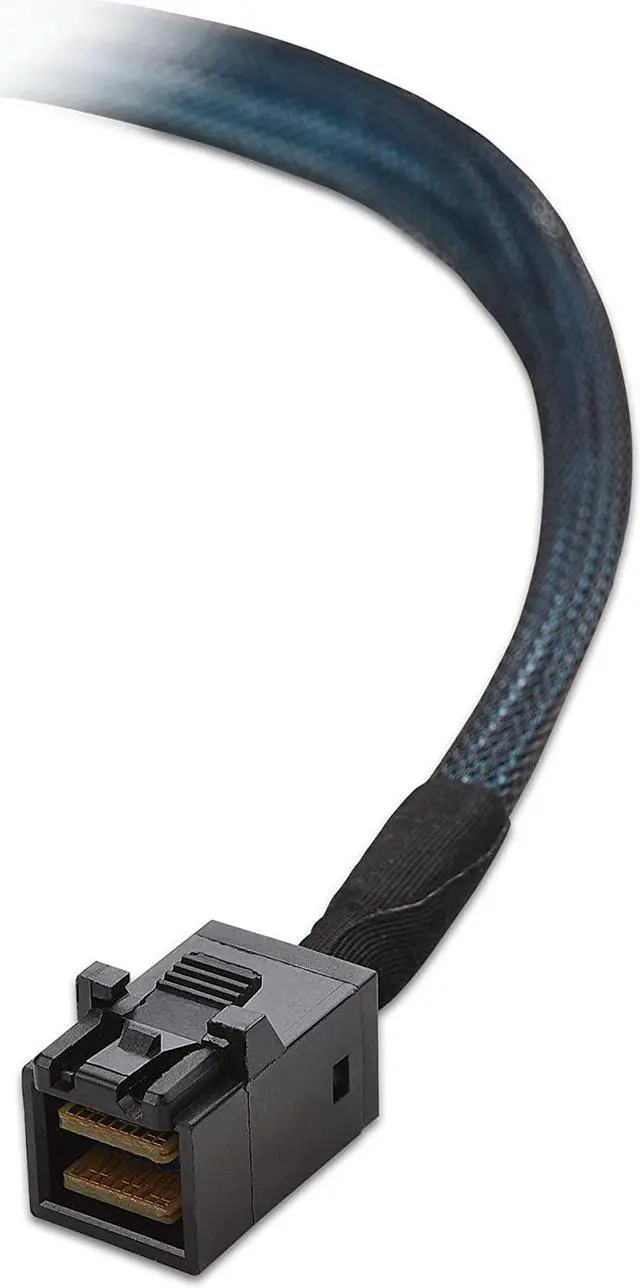

Hybrid high density SAS to SATA with a 36 pin SFF 8643 connector and 4 x 7 pin SATA connectors provides both 3 Gbps and 6 Gbps compatibility while migrating to a to 12 Gbps storage area network system

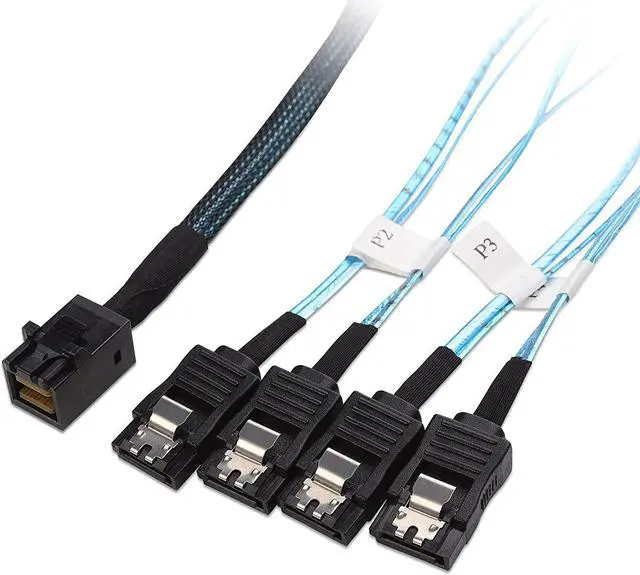

Forward fan-out cable has an internal SFF-8643 (HOST) HD Mini-SAS 36 pin connector and 4 x SATA 7 pin (TARGET) drive connectors; Four discrete SATA fanout drive cables are of equal length with stainless steel latches to provide a secure connection
Multi-lane 8643 to SATA CABLE with 4 channels can drive 4 SATA drives; Supports multiple lanes of high speed SATA traffic over a single cable; SFF 8643 compatible with the Adaptec RAID 71605 / 7895 Storage Controllers

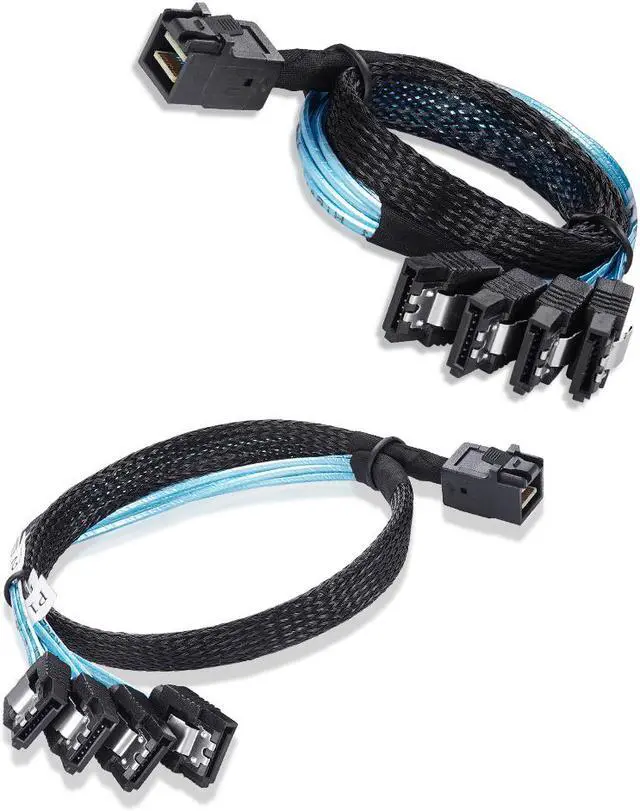

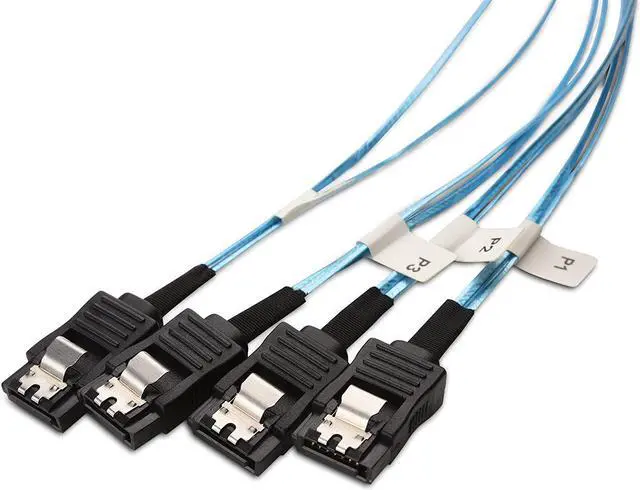

Flexible design of HD mSAS breakout cable includes acetate cloth tape over slim ribbon cables for strain relief to protect cables without rigidity; Woven mesh sheath covers half of the cable for easy routing; P1 to P4 markers provide easy ID after installation; Low profile SATA connectors have easy-grip treads with stainless steel latches to prevent accidental disconnection and reduce vibration
Cable Type Mini SAS
Compatible Devices Personal Computer
Brand Cable Matters
Gauge 30.0
Data Transfer Rate 6 Gigabits Per Second, 3 Gigabits Per Second
