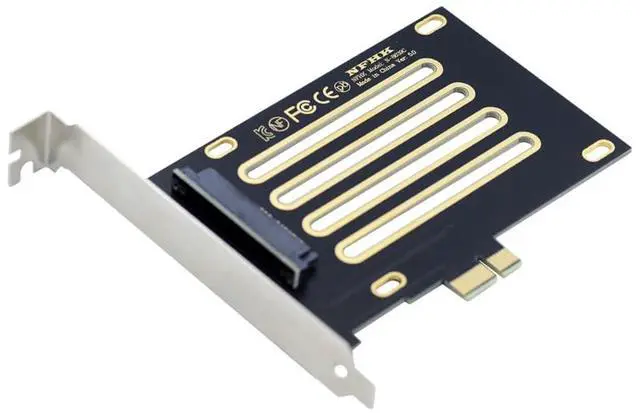

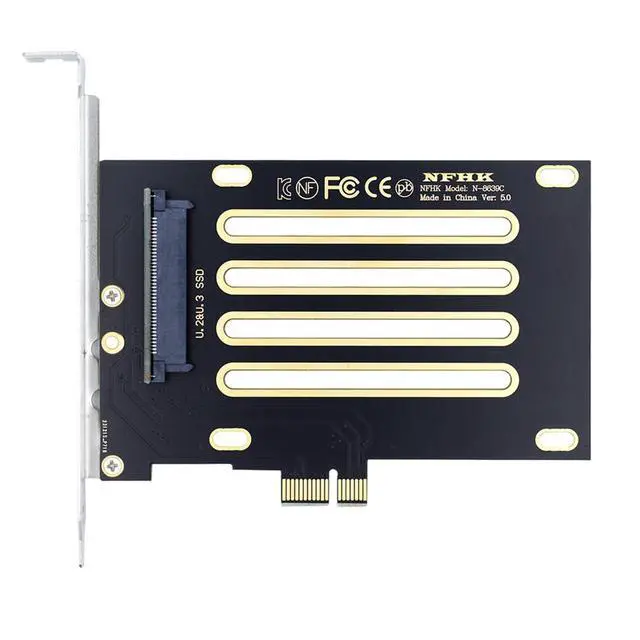

Vszerda PCI Express 4.0 X1 Lane to U.2 U.3 Kit SFF-8639 Host Adapter for Motherboard PM1735 NVMe PCIe SSD
Limited time offer, ends 07/31 By Jinwen Electronics

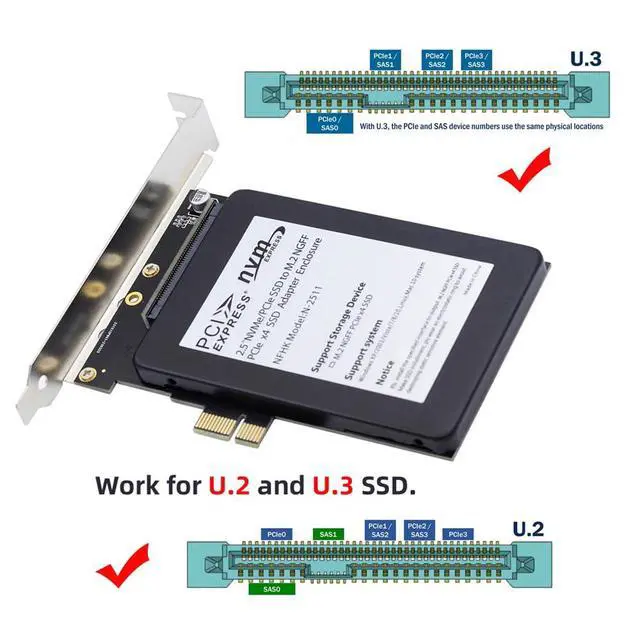

- This PCI Express card expands the PC by one U.2/U.3 SFF-8639 interface.It can be connected e.g. the U.2/U.3 U3 PM1735 Series SSD.

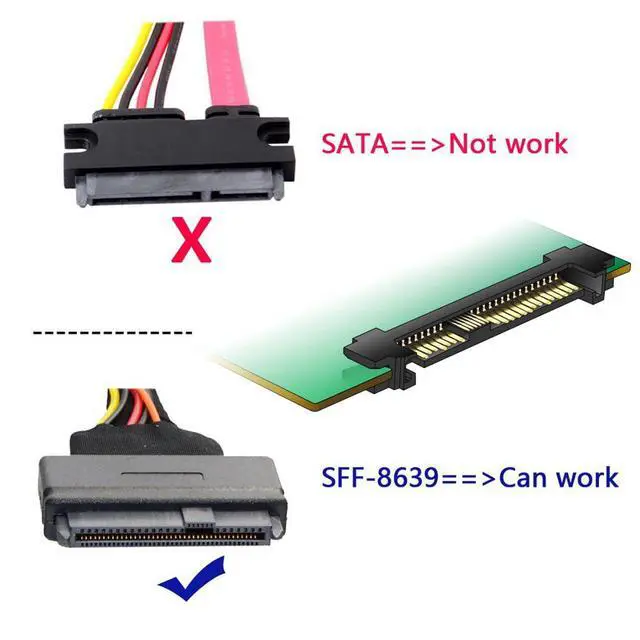

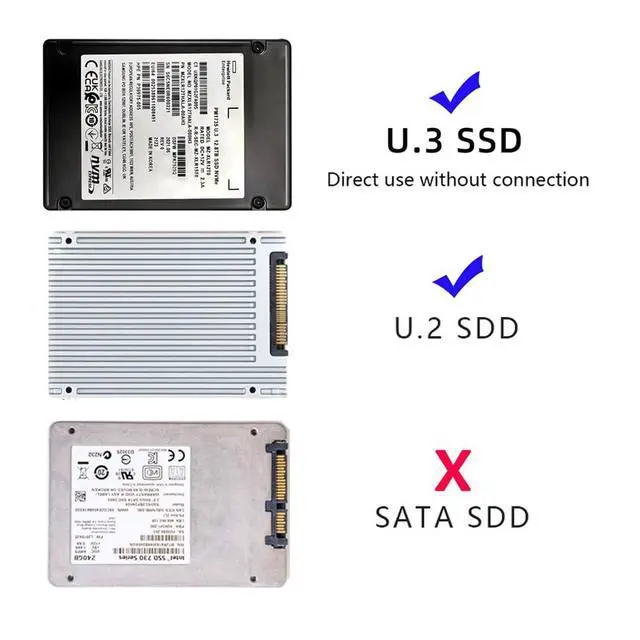

- The pci-e 1x card work for U.2 and U.3 SSD,not work for SATA/SAS SSD.
- The speed and other properties is not changed,only form conversion interface.Transparent to the operating system and does not require any software drivers.

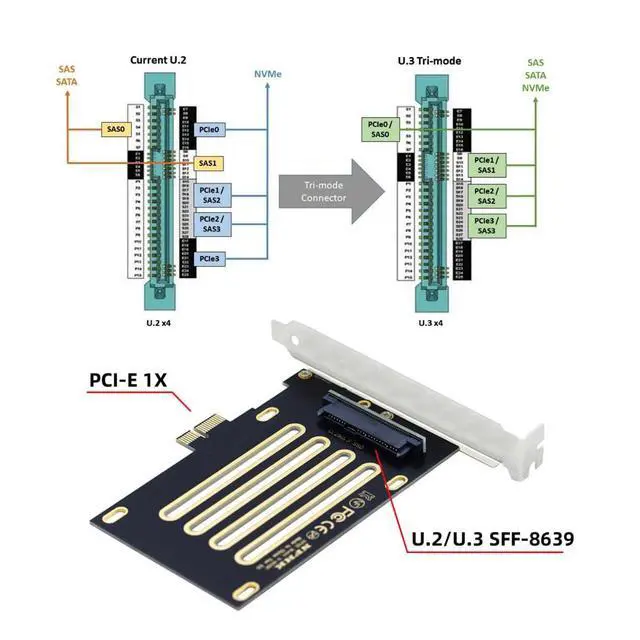

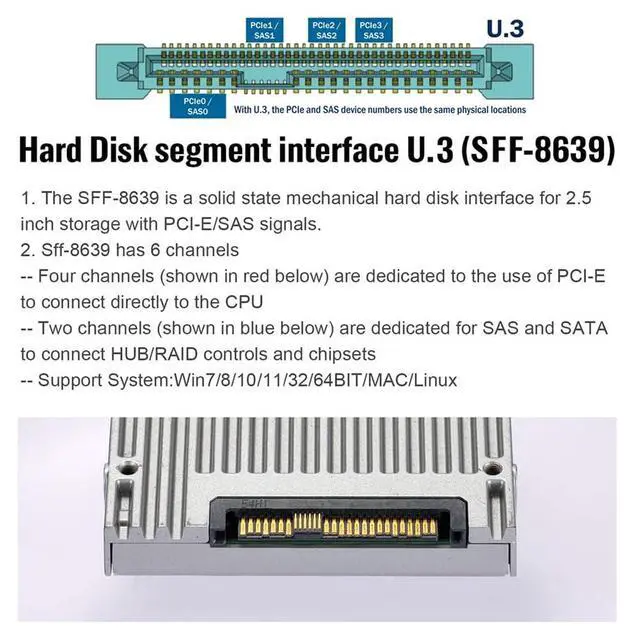

- U.3 is a Tri-mode standard, building on the U.2 spec and using the same SFF-8639 connector. It combines SAS, SATA and NVMe support into a single controller. Where firmware support is available, U.3 can also support hot-swap between the different drives.
- U.3 drives are still backward compatible with U.2, thoughthe U.3 drives determine which host type it is inserted into (by using different combinations of HPT0 and HTP1 being open or ground), and configure the data lanes on power-up. U.3 drives can still act as dual-port NVMe drives in supporting systems.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
U.2 drives are not compatible with U.3 hosts.
The pci-e 1x card work for U.2 and U.3 SSD,not work for SATA/SAS SSD.
This PCI Express card expands the PC by one U.2/U.3 SFF-8639 interface.It can be connected e.g. the U.2/U.3 U3 PM1735 Series SSD.
The speed and other properties is not changed,only form conversion interface.Transparent to the operating system and does not require any software drivers.
U.3 is a Tri-mode standard, building on the U.2 spec and using the same SFF-8639 connector. It combines SAS, SATA and NVMe support into a single controller. Where firmware support is available, U.3 can also support hot-swap between the different drives.
U.3 drives are still backward compatible with U.2, thoughthe U.3 drives determine which host type it is inserted into (by using different combinations of HPT0 and HTP1 being open or ground), and configure the data lanes on power-up. U.3 drives can still act as dual-port NVMe drives in supporting systems.
