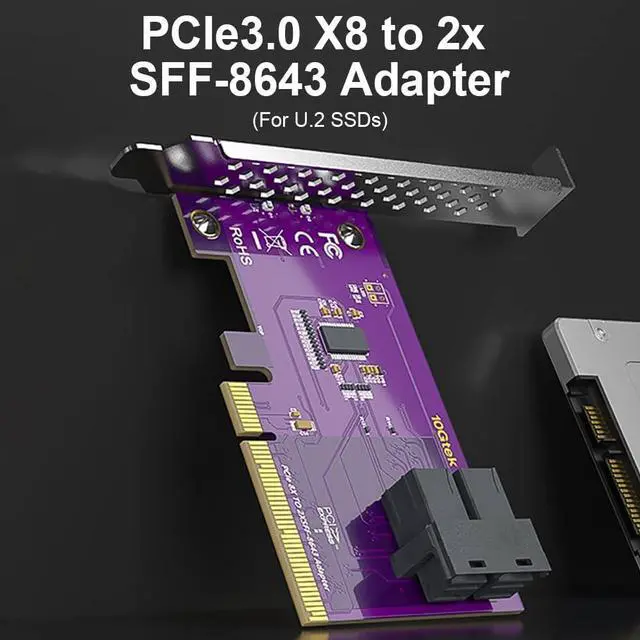

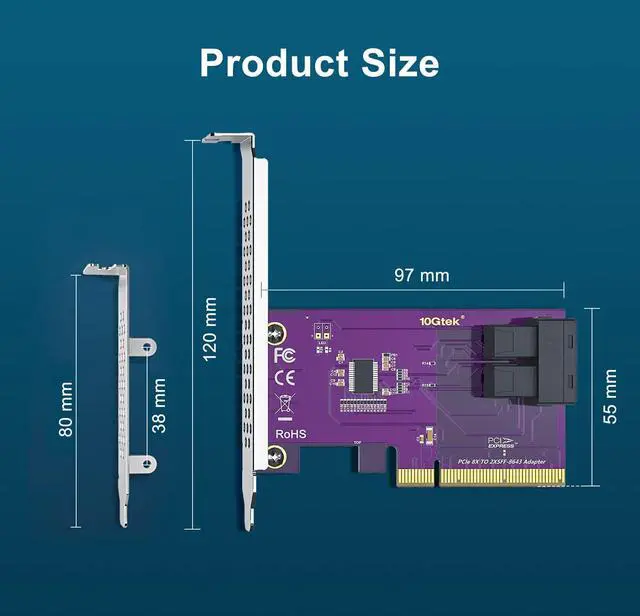

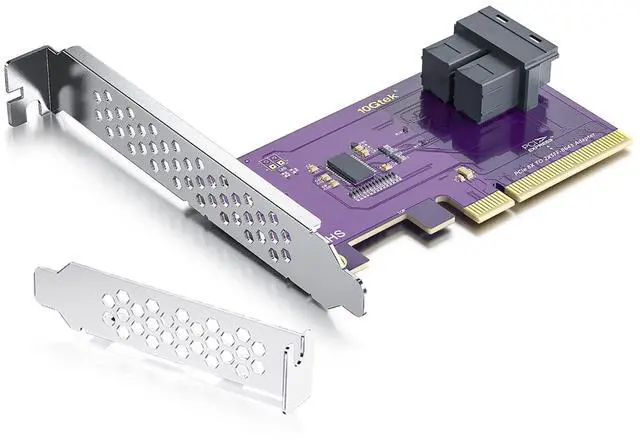

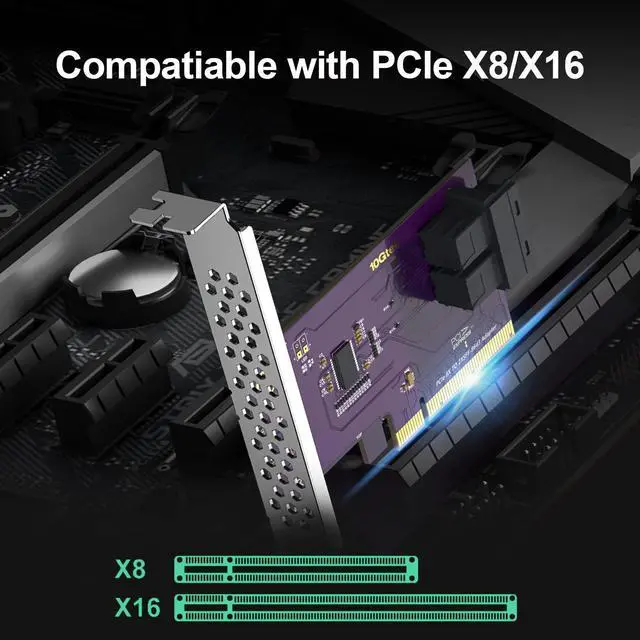

Vszerda PCIe 3.0 x8 to Dual SFF-8643 U.2 NVMe Adapter, Bifurcation Required for (2) U.2 SSDs, Supports Windows/Linux/ESXi, RAID/Server/Storage Upgrade
- The PCIe to SFF-8643 Adapter is a hardware component that connects U.2 SSDs to a computer's PCIe slot through an SFF-8643 connector. Connecting finger: 1
- This adapter effectively splits the PCI Express lanes from the host system into multiple connections, in this case, 2 SFF-8643 ports. This allows for the attachment of U.2 form factor SSDs in a RAID or JBOD configuration

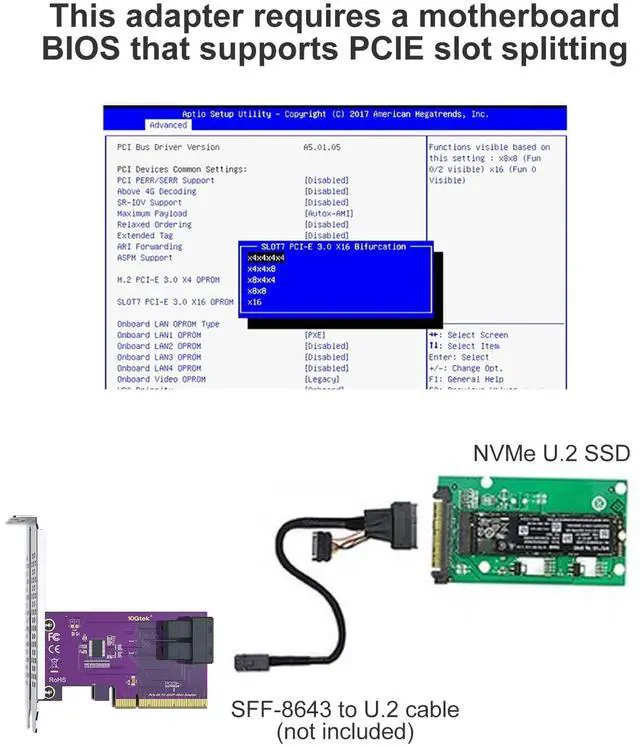

- Motherboards and the BIOS MUST support bifurcation, otherwise, only the first drive can be recognized
- The PCIe to SFF-8643 adapter is up to four times faster than SATA SSDs, with speeds of up to 32Gbps, providing breakneck read/write speeds, high-speed file access and transfers, and rapid boot times
- Support Windows 10/8/7, RHEL/CentOS 7/8, VMware ESXi 6/7, Ubuntu Linux 18/20/21, etc. Full height bracket included. NOT support hot swapping!
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
PCIe 3.0 x8 to Dual SFF-8643 U.2 NVMe Adapter, Bifurcation Required for 2x U.2 SSDs, Supports Windows/Linux/ESXi, RAID/Server/Storage Upgrade (No PLX Chip, 12Gbps per Port)
