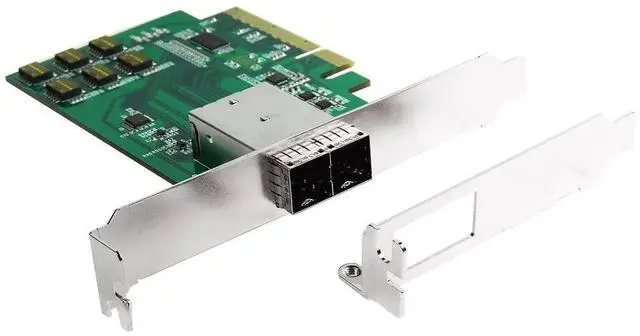

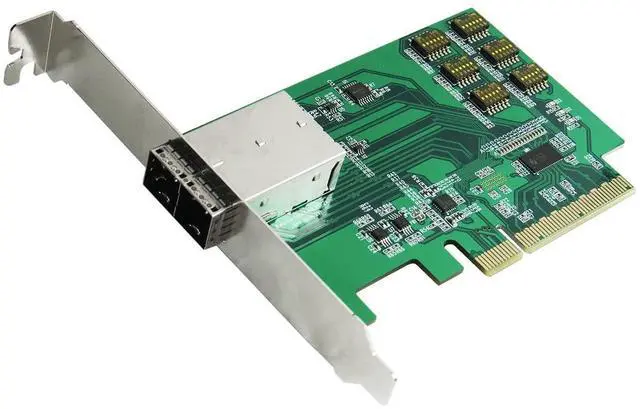

Vszerda PCIe X8 to GEN 3 with Redriver to External MiniSAS HD 8X Adapter
- High-Speed Data Transfer: Our PCIe X8 to GEN 3 with Redriver to External MiniSAS HD 8X Adapter provides an easy and efficient way to transfer data at high speeds up to 8GT/s.
- Built-In ReDriver Technology: The adapter features built-in ReDriver technology that extends PCIe 3.0 differential pair signals for up to 8 lanes data link widths, ensuring reliable and stable data transmission.
- Easy to Install: The adapter is easy to install with its built-in SFF-8644 8x connector, making it a great choice for a hassle-free solution to connect their PCIe and MiniSAS devices.
- Long Trace and Cable Lengths: With built-in PERST# Bus Buffer Gate, WAKE# Bus Buffer Gate, and CLKREQ# Bus Buffer Gate, this adapter can be used over longer trace lengths and cable lengths, giving you flexibility in your installation options.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
PCIe X8 to GEN 3 with Redriver to External MiniSAS HD 8X Adapter

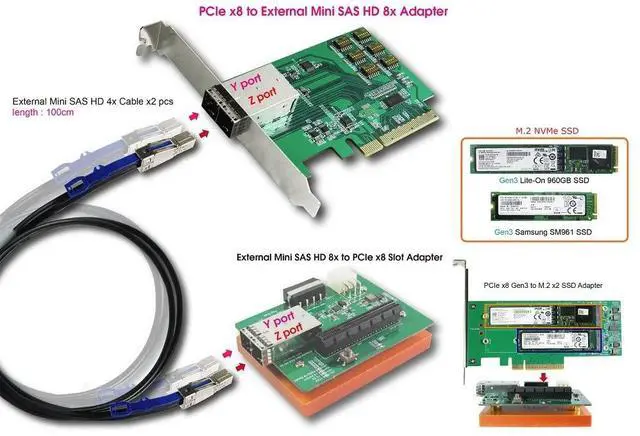

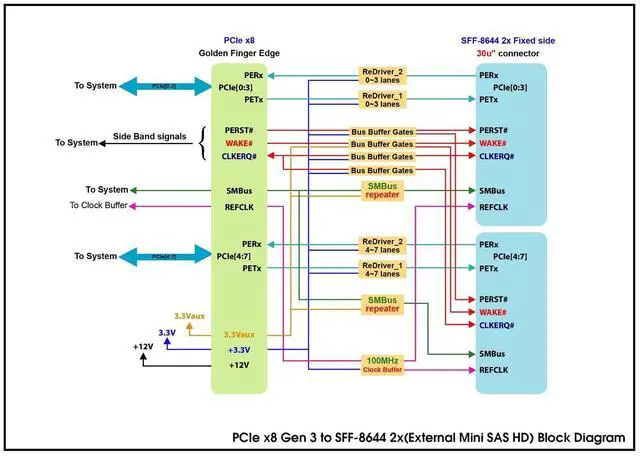

Experience faster data transfer and more reliable connectivity with the PCIe X8 to GEN 3 with Redriver to External MiniSAS HD 8X Adapter. Featuring an external Mini SAS HD 8x (SFF-8644) to PCIe x8 Gen 3 conversion, this adapter comes with a built-in SFF-8644 8x connector, ReDriver, PCIe 100MHz Clock buffer, and bidirectional buffer repeater to extend PCIe 3.0, 8GT/s differential pair signals across 8 lanes data link widths. Its PERST#, WAKE# and CLKREQ# Bus Buffer Gates make it ideal for longer trace and cable lengths. The green LED lights indicate AIC ready, UR1 ReDriver chip-enabled, and UR2 ReDriver chip-enabled. Compliant with PCI Express Base Specification Rev 3.0, PCIe CEM Rev3.0, and PCI_Express_External_Cabling_R3.0a_06042020_NCB, this adapter is designed for efficiency and convenience.
