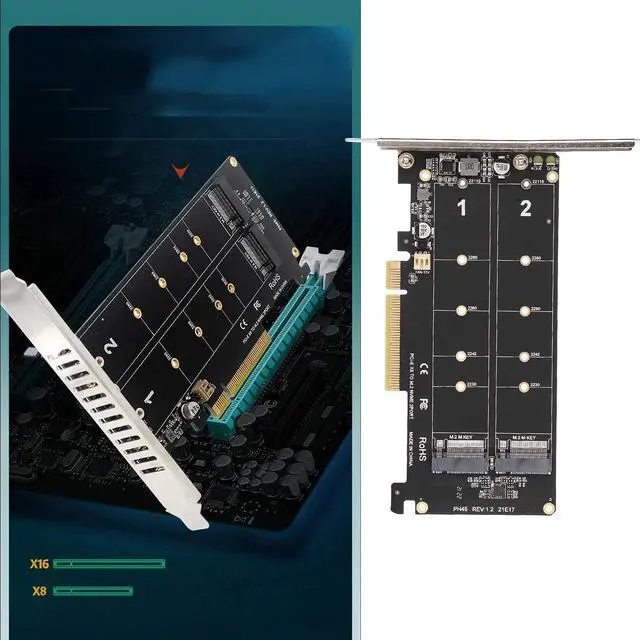

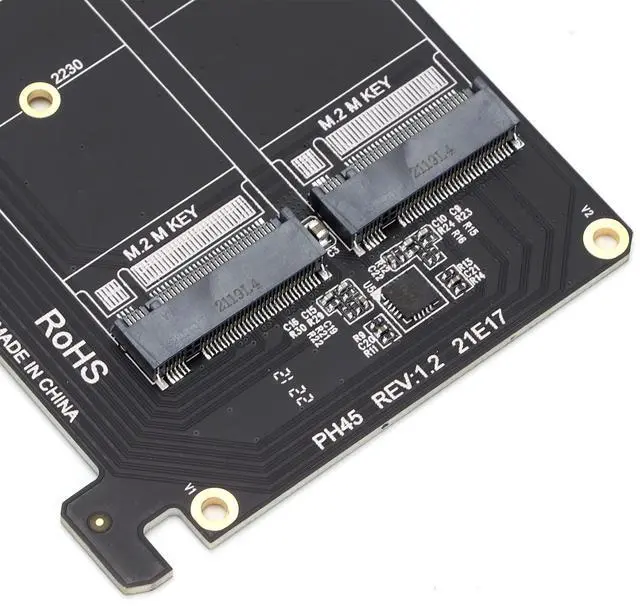

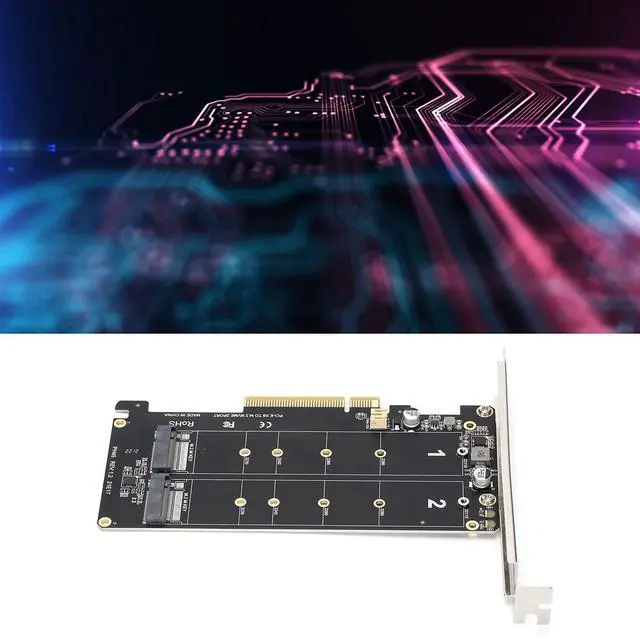

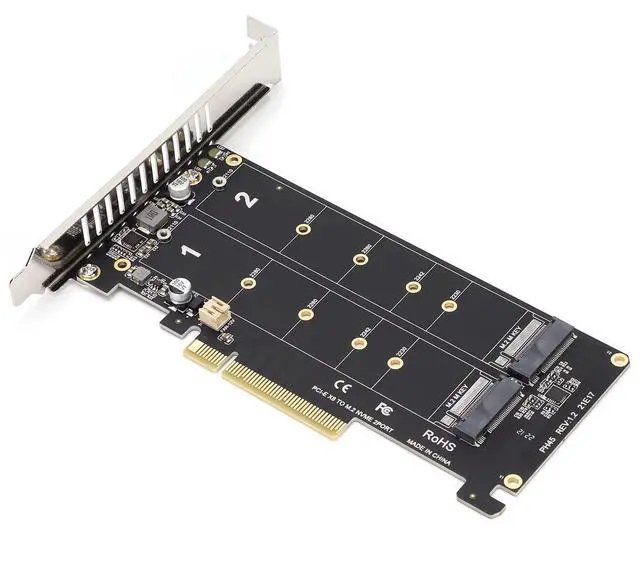

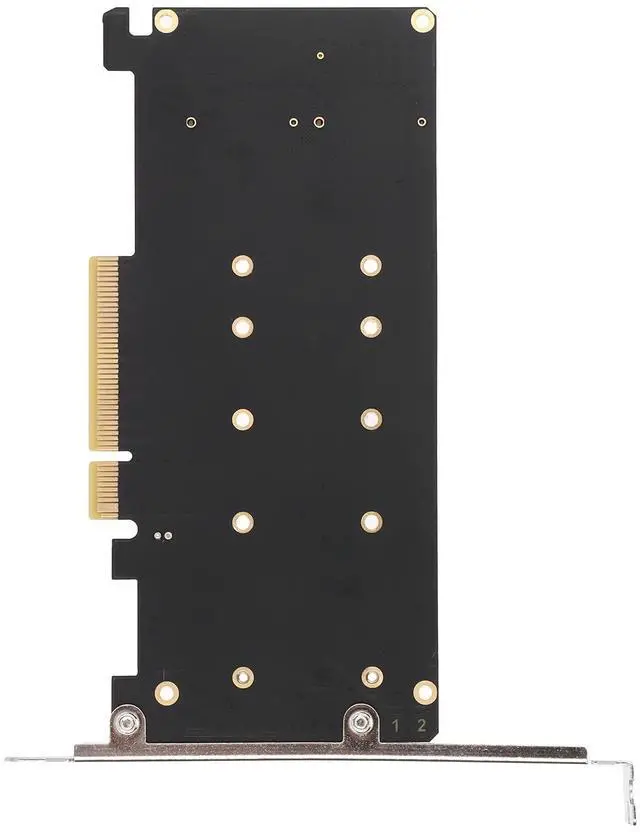

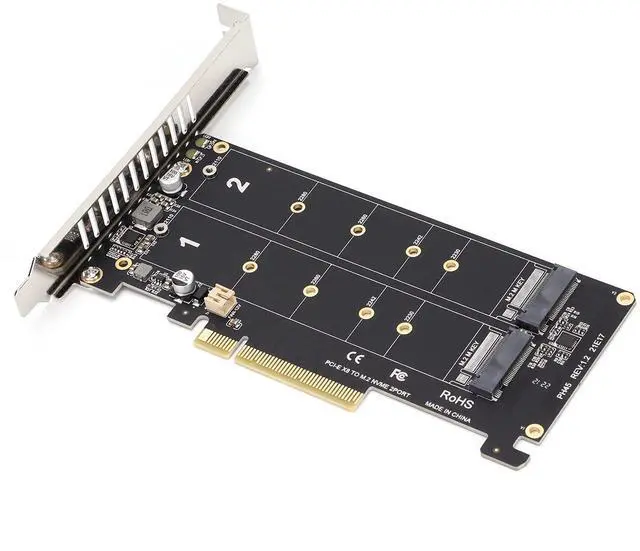

Vszerda M.2 NVME SSD M Key to PCIE X8 Adapter Card, PCIE to NVME Drive Expansion Card, 32Gbps SSD PCIE 3.0/4.0 Adapter for Desktop PC, PCI E Full Channel Full Speed(ph45)

Specification:

Item Type: Adapter Card

Model: PH45

Support Hard Disk: M Key Hard Disk

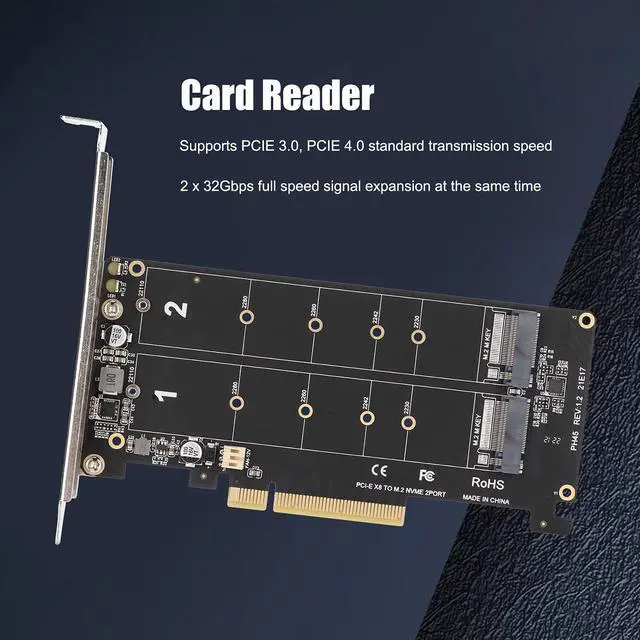

Speed: 2 x 32Gbps

How to Use:

1.Motherboard support:

The motherboard supports PCIE split function, which can be set to PCIE X4X4X4 or 4X4 mode. The motherboard supports PCIE RAID function. For motherboard supports the function of HyperM.2X16 expansion card. Different motherboards have different PCIE split channels. Some motherboards PCIE RAID is X8+. X4+X4, this motherboard 4bit M.2 card can only support .2 SSDs or devices, and 2bit M.2 card can only support 1 M.2 SSD or device. If you need to use this product normally, please select the motherboard correctly. Many motherboards share PCIE channels. Make sure that the motherboard can support the function of PCIE splitting. If you cannot recognize that many M.2 SSDs or devices, please remove or replace other PCIE devices, such as graphics cards, expansion cards, and onboard NVME SSDs.

For motherboards that support PCIE split, please refer to the following link

https://wwwcom/tw/support/FAQ/1037507

For motherboards that support PCIE split, please refer to the following link

https://wwwcom/mb/spec/product.cn.asp?Model=ULTRA%20QUAD%20M.2%20CARD#SupportList

Server motherboards, X299 and X399 motherboards have split function

2.CPU support is required, and the CPU must have enough channels. Generally, lowend CPUs do not have enough PCIE channels, so they may not be able to support it either. When purchasing a CPU, you can refer to the motherboard introduction to make the correct choice

Package List:

1 x Adapter Card

2 x Nuts

3 x Screws

1 x Screwdriver
