Vszerda 2280 PCI-E4.0 M.2 M-Key NVME Male to Oculink SFF-8612 SFF-8611 Host Adapter with Linear Redriver for U.2 SSD eGPU Over Long Cable Lengths

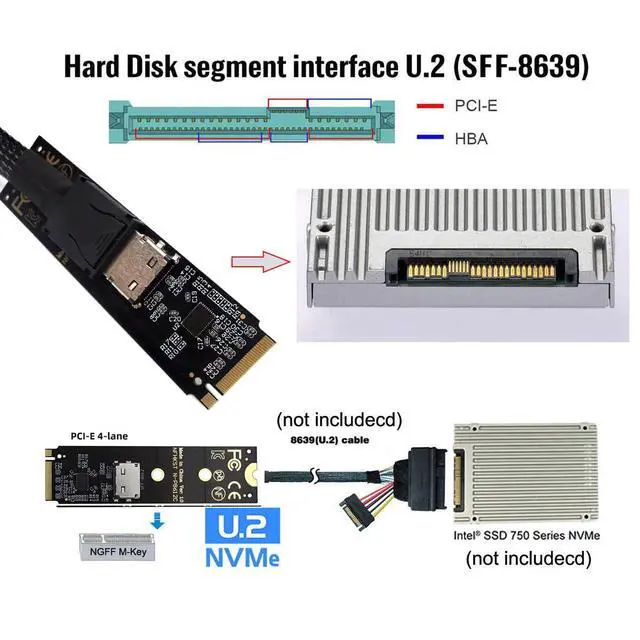

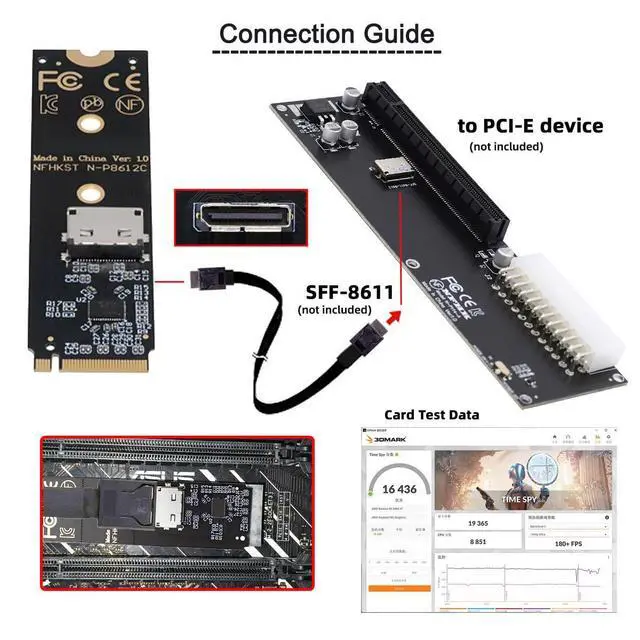

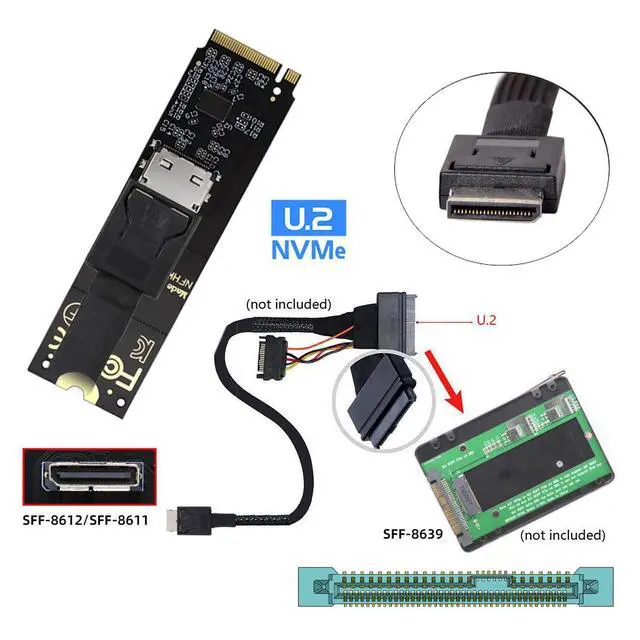

- This convertor expands the 2280 M-Key system by one SFF-8612 oculink interface. It can be connected e.g. one SSD or eGPU Graphics Card by using an optional cable.

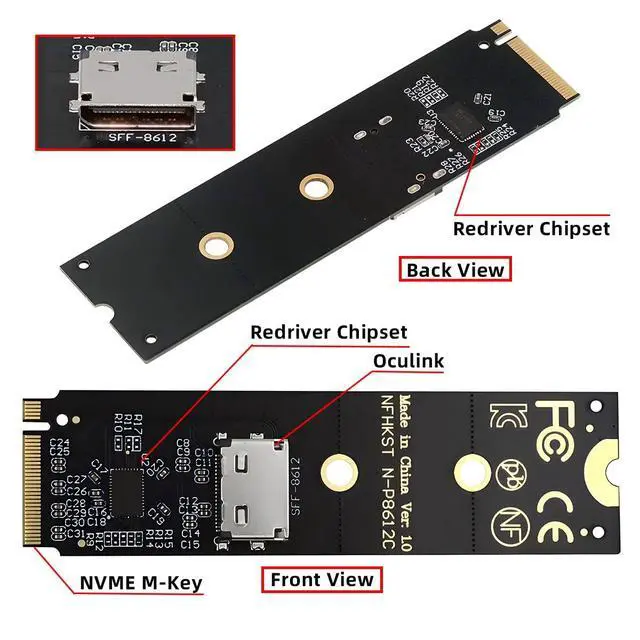

- The adapter features a built-in ReDriver circuit, which helps to boost signal quality and reduce noise interference over long cable lengths.
- The card transmits PCI Express 4.0 signals using the NVMe protocol.Data transfer rate up to 64Gbps, Supports NVM Express (NVMe) 1.2. This makes it suitable for use with the pci-e4.0 generation of high-performance SSDs and other PCIe Gen4 devices.

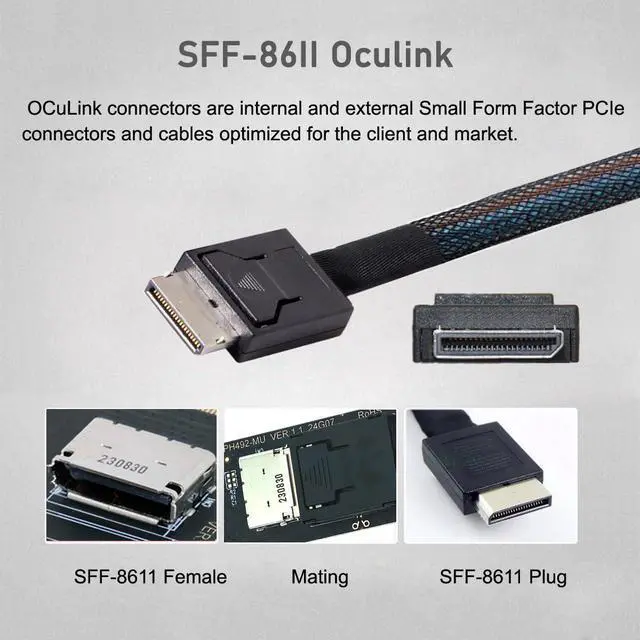

- Oculink 4x connectors are internal and external small form factor PCI-E connectors optimized for the client and market. Compatible with T10/ SAS-4 24 Gbps, SFF-8611, SFF-8612, PCIe Gen 3 and Gen 4.
- PX410 PCI-Express Linear Redriver is a four-channel, low-power, high-performance linear repeater/redriver designed to support PCI Express (PCIe) Generation 1.0, 2.0, 3.0, and 4.0. The device is a protocol-agnostic linear redriver that can operate for interfaces up to 25Gbps.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
2280 PCI-E4.0 M.2 M-key to Oculink SFF-8612 SFF-8611 Vertical Host Adapter for NVME U.2 SSD eGPU
This convertor expands the 2280 M-Key system by one SFF-8612 oculink interface. It can be connected e.g. one SSD or eGPU Graphics Card by using an optional cable.
The adapter features a built-in ReDriver circuit, which helps to boost signal quality and reduce noise interference over long cable lengths.
The card transmits PCI Express 4.0 signals using the NVMe protocol.Data transfer rate up to 64Gbps, Supports NVM Express (NVMe) 1.2. This makes it suitable for use with the pci-e4.0 generation of high-performance SSDs and other PCIe Gen4 devices.
Oculink 4x connectors are internal and external small form factor PCI-E connectors optimized for the client and market. Compatible with T10/ SAS-4 24 Gbps, SFF-8611, SFF-8612, PCIe Gen 3 and Gen 4.
PX410 PCI-Express Linear Redriver is a four-channel, low-power, high-performance linear repeater/redriver designed to support PCI Express (PCIe) Generation 1.0, 2.0, 3.0, and 4.0. The device is a protocol-agnostic linear redriver that can operate for interfaces up to 25Gbps.

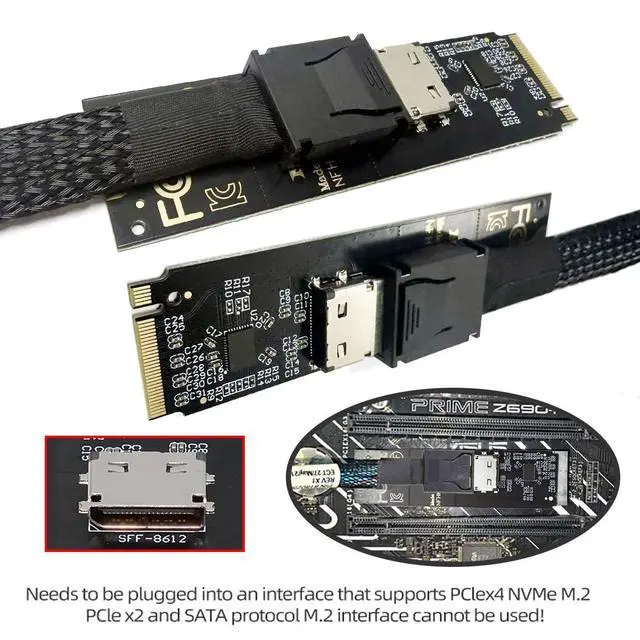

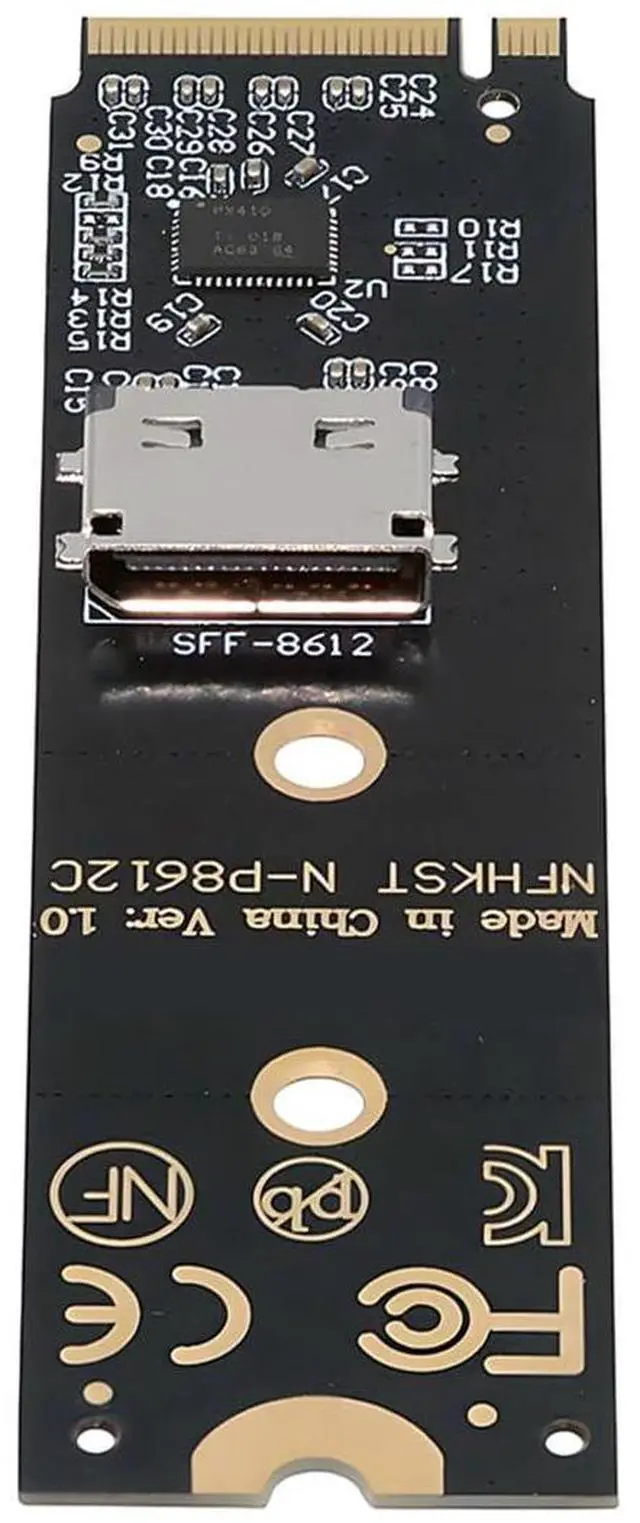

Connectors: 1 x OCuLink SFF-8612 female and 1 x 67 pin M.2 Key M male.
