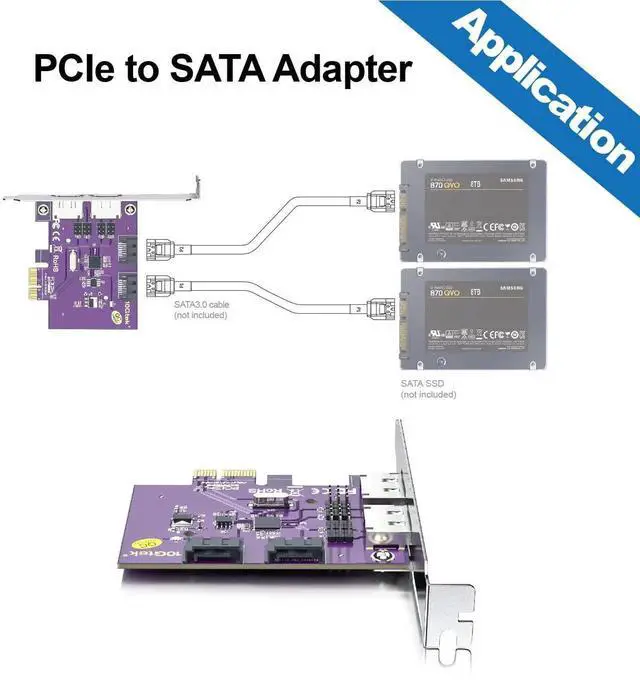

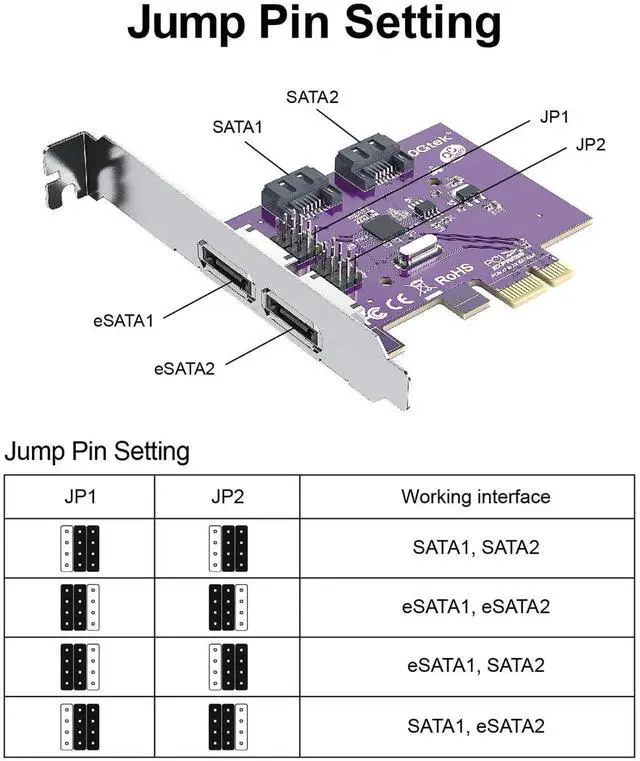

Add 2 eSATA III or 2 SATA III 6Gbps ports to a computer through a PCI Express slot (only one of them can be used, the default SATA interface is valid) to improve your system performance and expand overall internal storage. (NO-Support Raid).
The 4 ports SATA controller base on ASMedia ASM1061 chip, more stable and wider compatible.

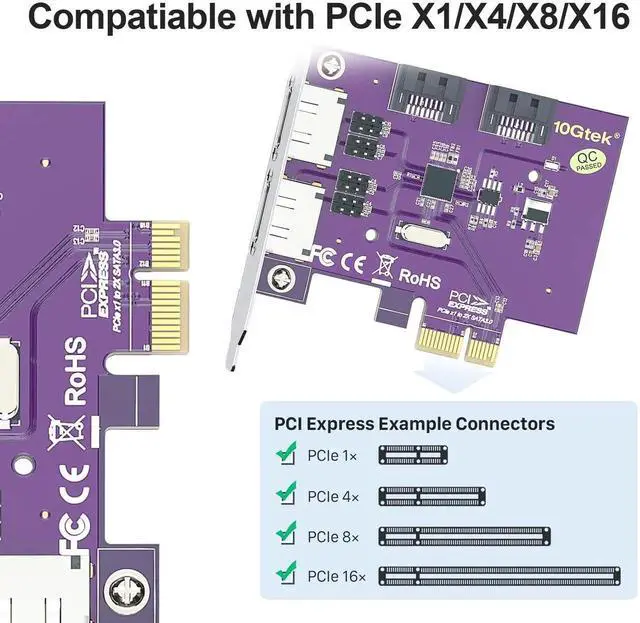

Compliant with SATA3.0 standards, backward compatible with SATA1.0 and SATA2.0. Support PCIe1.0, 2.0, 3.0 protocol on motherbaord PCIe X1, X2, X4, X8, X16 slot. NOT support hot swaping.

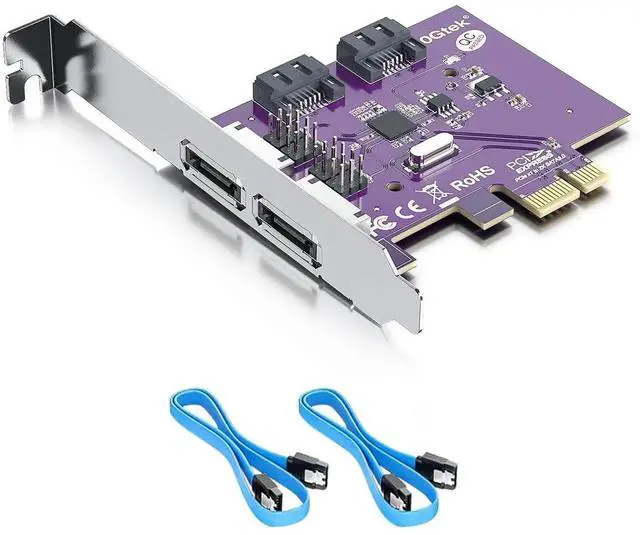

Full height and low profile bracket included.
Supports Windows 7/8/10, Windows Server 2008 R2/2012 R2/2016/2019, RHEL/CentOS 6/7/8, Ubuntu 16/18/20/21, SUES 11/12/15, VMware ESXi 5/6/7, Linux.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Add 2 eSATA III or 2 SATA III 6Gbps ports to a computer through a PCI Express slot (only one of them can be used, the default SATA interface is valid) to improve your system performance and expand overall internal storage. (NO-Support Raid).
The 4 ports SATA controller base on ASMedia ASM1061 chip, more stable and wider compatible.
Compliant with SATA3.0 standards, backward compatible with SATA1.0 and SATA2.0. Support PCIe1.0, 2.0, 3.0 protocol on motherbaord PCIe X1, X2, X4, X8, X16 slot. NOT support hot swaping.
Full height and low profile bracket included.
Supports Windows 7/8/10, Windows Server 2008 R2/2012 R2/2016/2019, RHEL/CentOS 6/7/8, Ubuntu 16/18/20/21, SUES 11/12/15, VMware ESXi 5/6/7, Linux.
Learn more about the Detailed Specifications
