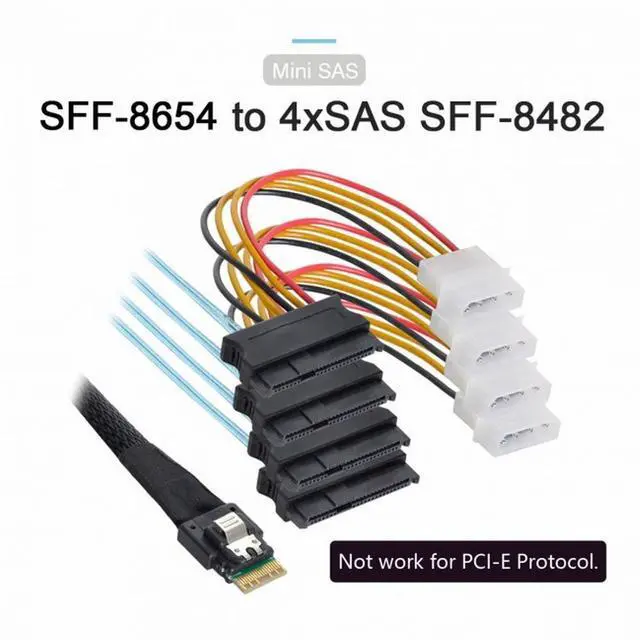

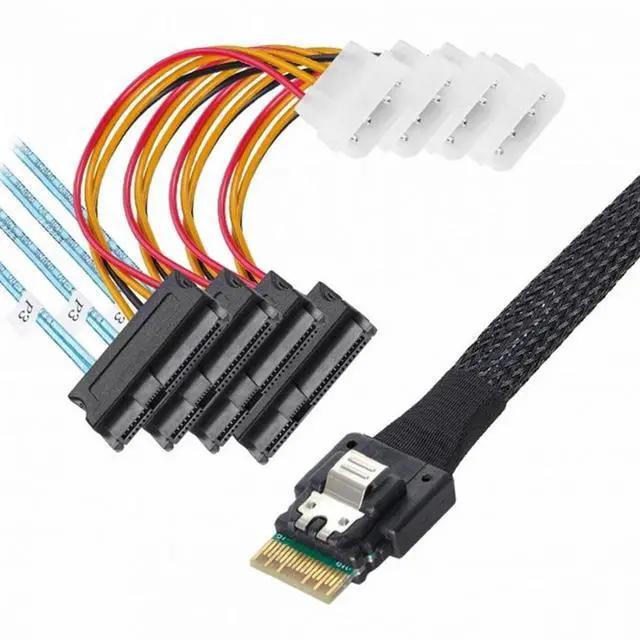

CY Slimline SAS 4.0 SFF-8654 4i 38pin Host to 4 SAS 29pin SFF-8482 Target Hard Disk Fanout Raid Cable

Slimline SAS 4.0 SFF-8654 4i 38pin Host to 4 SAS 29pin SFF-8482 Target Hard Disk Fanout Raid Cable

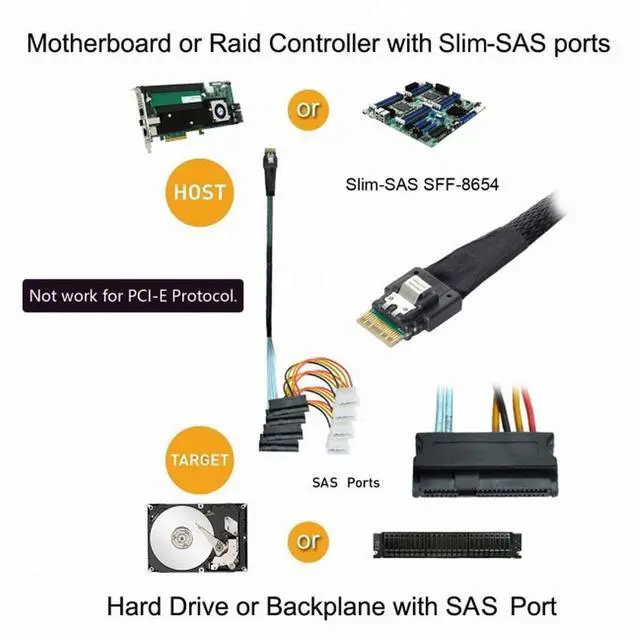

This SAS cable can be used to connect internal devices, e.g. a hard disk with SAS 29pin connector to a controller with Slim SAS SFF-8654 4i connector.

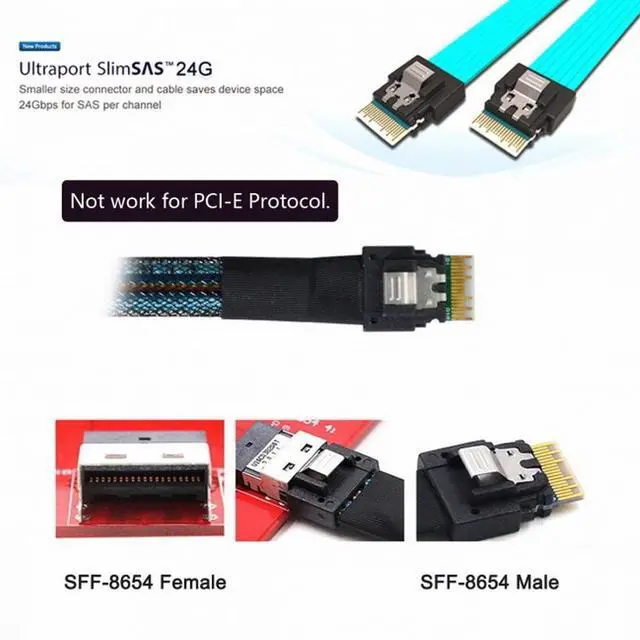

Ultraport SlimSAS 4i 38Pos Cable Assembly
Slim SAS 4i Straight to SAS 29pin
Length: 100cm

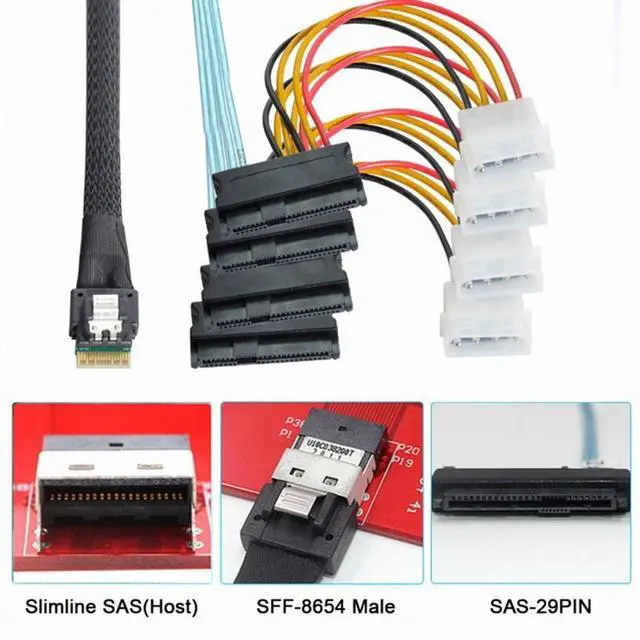

Connector 1: Slim SAS 4i 38pin
Connector 2: SATS 29pin
Applications for Servers,Data Storage,Workstation.Meet SAS3.0/4.0 specification

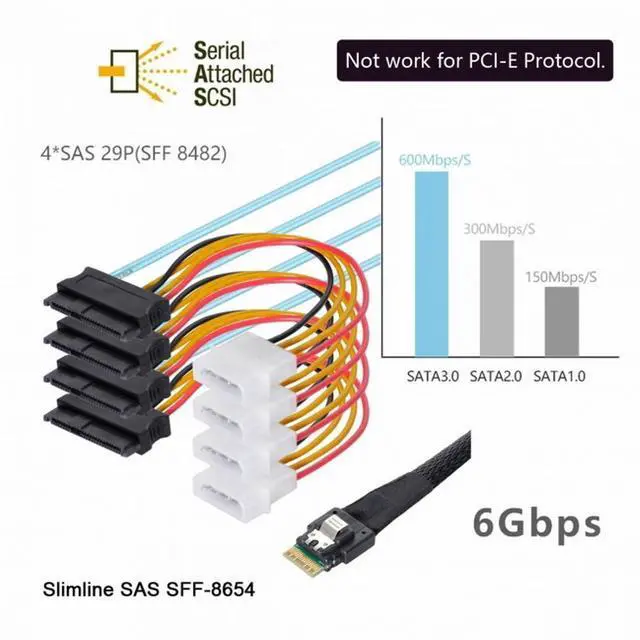

The SFF-8482 is a connector design for interfacing a connection for SAS drives, both SAS Hard drives and SAS SSD drives.

The SFF-8482 is a 29-pin connector with a plastic body, and configured with 15 pins that support the power requirements of the drive, and (2) groups of 7 pins that carry the SAS data signals.
The SFF-8482 supports 2 SAS ports (lanes) to/from the drive.
Features and Benefits:
1.Smaller size connector and cable saves device space
2.Provide four channels signal transmission as per industry standard
3.Data speed: 24Gbps for SAS per channel
4.Meet SAS3.0/4.0, Ultraport SlimSAS SFF-8654 specification
