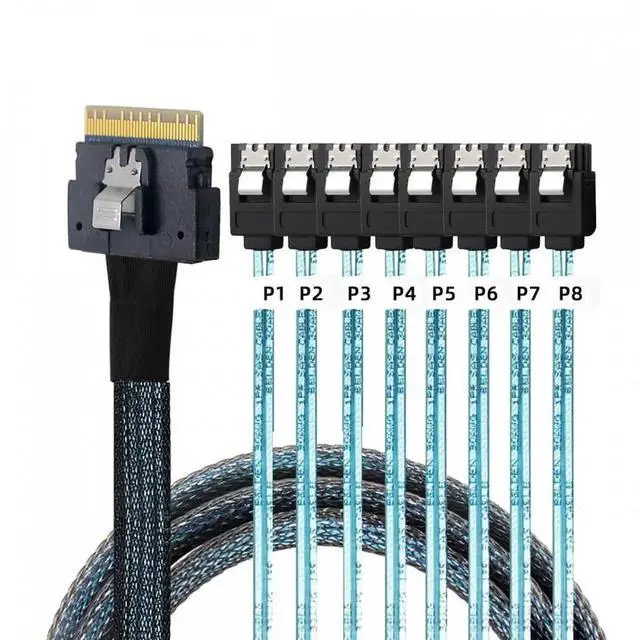

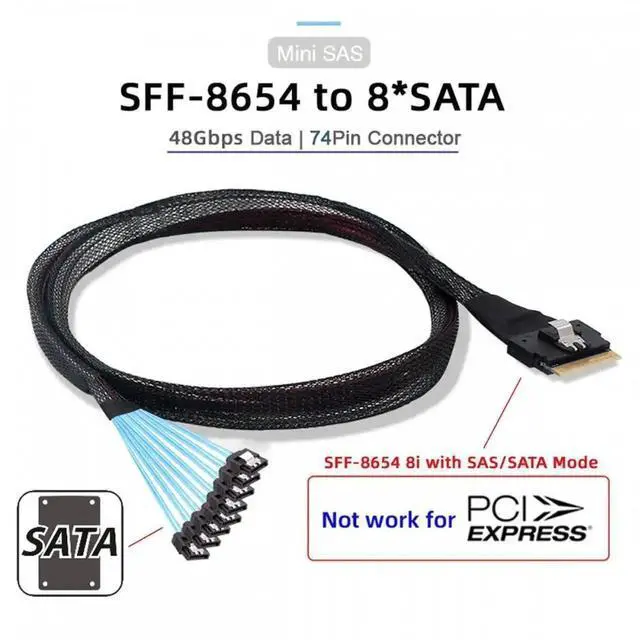

    Aomoproing Slimline SAS 4.0 SFF-8654 8i 74pin Host Raid to 8 SATA 7pin Target Hard Disk Fanout Raid Cable 1-to-8 Splitter

    Be the first to review this product...
    • Slimline SAS 4.0 SFF-8654 8i 74pin Host Raid to 8 SATA 7pin Target Hard Disk Fanout Raid Cable 1-to-8

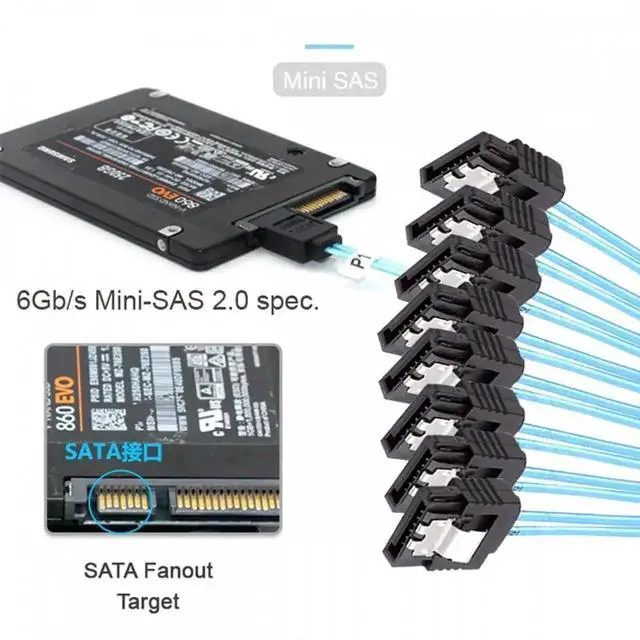

    • This slim SAS cable can be used to connect internal devices, e.g. a hard disk with SATA 7pin connector to a controller with Slim SAS SFF-8654 8i connector.
    • It can't work for SATA Host to SFF-8654 target.It is not reversible.
    • The cable only work for SFF-8654 8i SAS/SATA function card, Not work forSFF-8654 8i PCIE Card.
    • Ultraport SlimSAS 8i 74Pos Cable Assembly, Slim SAS 8i Straight to SATA 7pin;Applications for Servers,Data Storage,Workstation;Meet PCIe Gen3 and SAS4.0 specification.

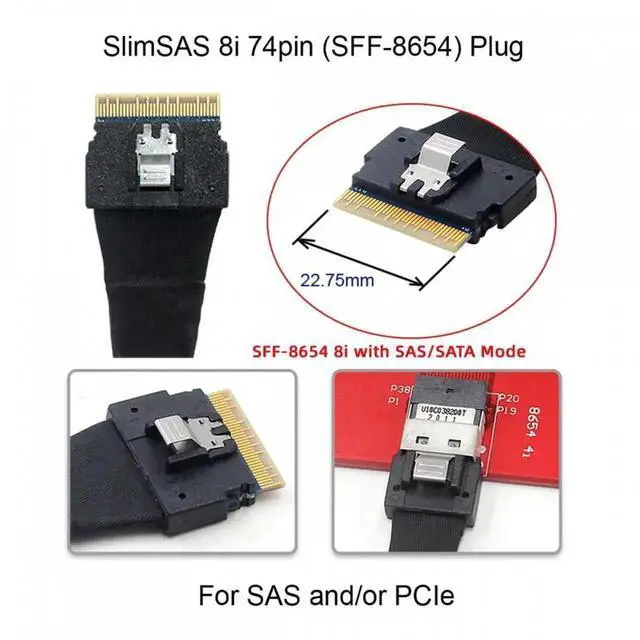

    • Connector 1: Slimline SAS 8i 74pin

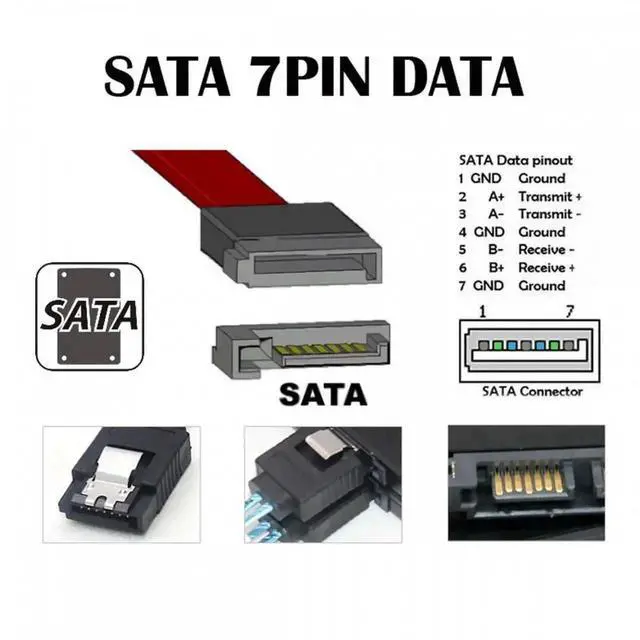

    • Connector 2: SATA 7pin
    • Features and Benefits:
    • 1.Smaller size connector and cable saves device space
    • 2.Provide four channels signal transmission as per industry standard
    • 3.Data speed: 48Gbps for SAS and 8GT/s for PCIe per channel
    • 4.Meet SAS4.0/3.0, Ultraport SlimSAS SFF-8654 specification
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    1. Slimline SAS 4.0 SFF-8654 8i 74pin Host Raid to 8 SATA 7pin Target Hard Disk Fanout Raid Cable 1-to-8
    2. This slim SAS cable can be used to connect internal devices, e.g. a hard disk with SATA 7pin connector to a controller with Slim SAS SFF-8654 8i connector.
    3. It can't work for SATA Host to SFF-8654 target.It is not reversible.
    4. The cable only work for SFF-8654 8i SAS/SATA function card, Not work forSFF-8654 8i PCIE Card.
    5. Ultraport SlimSAS 8i 74Pos Cable Assembly, Slim SAS 8i Straight to SATA 7pin;Applications for Servers,Data Storage,Workstation;Meet PCIe Gen3 and SAS4.0 specification.
    6. Connector 1: Slimline SAS 8i 74pin
    7. Connector 2: SATA 7pin
    8. Features and Benefits:
    9. 1.Smaller size connector and cable saves device space
    10. 2.Provide four channels signal transmission as per industry standard
    11. 3.Data speed: 48Gbps for SAS and 8GT/s for PCIe per channel
    12. 4.Meet SAS4.0/3.0, Ultraport SlimSAS SFF-8654 specification
